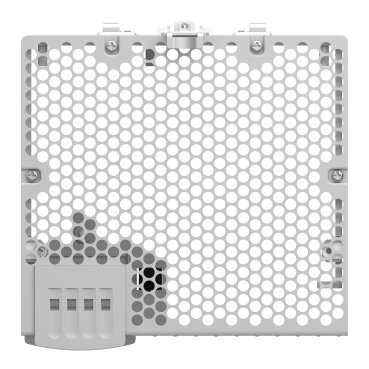

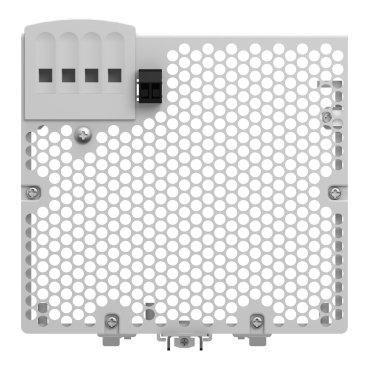

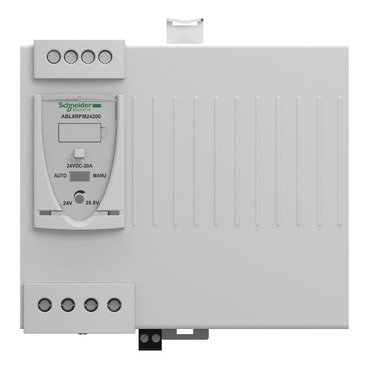

Schneider ABL8RPM24200 | Regulated switch power supply, modicon power supply, 1 or 2 phase, 100 to 240V, 24V, 20A
Schneider ABL8RPM24200 | Regulated switch power supply, modicon power supply, 1 or 2 phase, 100 to 240V, 24V, 20A
Original price was: EGP 344,138.00.EGP 189,276.00Current price is: EGP 189,276.00.
Description
Schneider ABL8RPM24200 | Regulated switch power supply, modicon power supply, 1 or 2 phase, 100 to 240V, 24V, 20A
Technical Specifications
- Input Voltage: 100-240V AC (universal input)
- Output Voltage: 24V DC
- Output Current: 20A
- Power Reserve: Can provide 150% of its nominal current for short periods
- Phases: Compatible with single-phase or two-phase power sources
- Adjustability: Allows fine adjustment of the output voltage to compensate for voltage drops in control circuits
- Automatic Reset: Helps in quickly recovering from short-term faults without manual intervention
Key Features & Benefits
Reliability: Ensures continuous operation of automation systems, even during voltage dips or brief power interruptions.
High Performance: Capable of handling sudden power surges and additional load requirements.
Sustainability: Certified with Green Premium™, ensuring low environmental impact and compliance with RoHS & REACh regulations.
Durability: Designed to last longer, reducing maintenance and replacement costs.
Ease of Use: Simple installation and integration into industrial control panels.
Applications
Industrial Automation – Provides stable power to PLCs, sensors, and control circuits.
Machine Building – Ensures uninterrupted operation of industrial machinery.
Panel Building – Used in electrical panels for efficient power distribution.
Process Control Systems – Maintains consistent voltage supply in automated systems.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of Product | Modicon Power Supply |
|---|---|
| Product or Component Type | Power supply |
| Power supply type | Regulated switch mode |
| Nominal input voltage | 100...120 V AC single phase N-L1 200...240 V AC phase to phase L1-L2 |
| Kw Rating | 480 W |
| Output voltage | 24 V DC |
| Power supply output current | 20 A |
| Permissible temporary current boost | 1.5 x In for 4 s) |
| Anti-harmonic filter | Low frequency harmonic currents |
| Efficiency at full load | 85...132 V AC 170...264 V AC |
|---|---|
| Inrush current | 30 A |
| Power factor | 0.68 at 240 V AC 0.69 at 120 V AC |
| Efficiency | 88 % |
| Output voltage adjustment | 24...28.8 V adjustable |
| Power dissipation in W | 57.6 W |
| Provided equipment | Power factor correction filter IEC 61000-3-2 |
| Output protection type | Against overload manual or automatic reset Against overvoltage 30...32 V, manual reset Against short-circuits manual or automatic reset Against undervoltage tripping if U < 21.6 V Thermal automatic reset |
| Connections - terminals | Removable screw terminal block 2 x 2.5 mm², diagnostic relay Screw type terminals 3 x 0.5...3 x 4 mm², AWG 22...AWG 12) input connection Screw type terminals 1 x 0.5...1 x 4 mm², AWG 22...AWG 12) input ground connection Screw type terminals 4 x 0.5...4 x 4 mm², AWG 22...AWG 12) output connection |
| Status LED | 1 LED (green and red) output voltage 1 LED (green, red and orange) output current |
| Depth | 5.7 in (145 mm) |
| Height | 4.9 in (125 mm) |
| Width | 5.7 in (146 mm) |
| Net Weight | 3.5 lb(US) (1.6 kg) |
| Output coupling | Series Parallel |
| Marking | CE |
| Mounting support | 35 x 7.5 mm symmetrical DIN rail 35 x 15 mm symmetrical DIN rail |
| Operating position | Vertical |
| Supply | SELV IEC 60950-1 SELV IEC 60204-1 SELV IEC 60364-4-41 |
| Dielectric strength | 2500 V with between input and ground 3000 V with between input and output 500 V with between output and ground |
| Standards | CSA C22.2 No 60950-1 UL 508 EN/IEC 62368-1 |
|---|---|
| Product certifications | CCSAus EAC KC RCM UL |
| Environmental characteristic | EMC IEC 61000-6-1 EMC IEC 61000-6-3 EMC EN 55024 EMC IEC 61000-6-4 EMC EN/IEC 61204-3 Safety IEC 60950-1 Safety EN/IEC 61204-3 |
| Operating altitude | 6561.68 ft (2000 m) |
| IP degree of protection | IP20 conforming to IEC 60529 IP10 |
| Ambient air temperature for operation | 122…140 °F (50…60 °C) with derating factor mounting position A < 6561.68 ft (2000 m) -13…122 °F (-25…50 °C) without derating mounting position A < 6561.68 ft (2000 m) |
| Category | US1CP1222525 |
|---|---|
| Discount Schedule | CP12 |
| GTIN | 3389119405638 |
| Returnability | Yes |
| Country of origin | PH |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.332 in (16.084 cm) |
| Package 1 Width | 6.971 in (17.706 cm) |
| Package 1 Length | 7.002 in (17.786 cm) |
| Package 1 Weight | 6.22 lb(US) (2.82 kg) |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 11.8 in (30 cm) |
| Package 2 Width | 15.7 in (40 cm) |
| Package 2 Length | 23.6 in (60 cm) |
| Package 2 Weight | 38.8 lb(US) (17.6 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 36 |
| Package 3 Height | 28.9 in (73.5 cm) |
| Package 3 Width | 23.6 in (60.0 cm) |
| Package 3 Length | 31.5 in (80.0 cm) |
| Package 3 Weight | 223.81 lb(US) (101.52 kg) |
| Warranty | 18 months |
|---|
