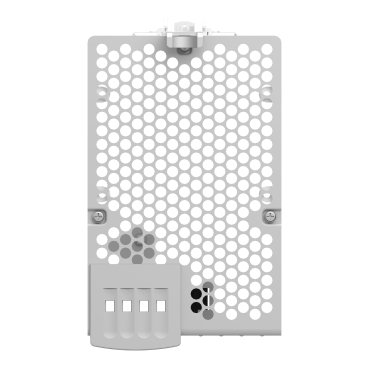

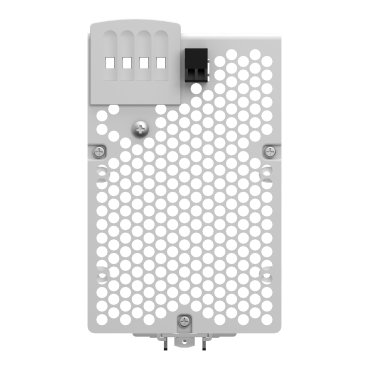

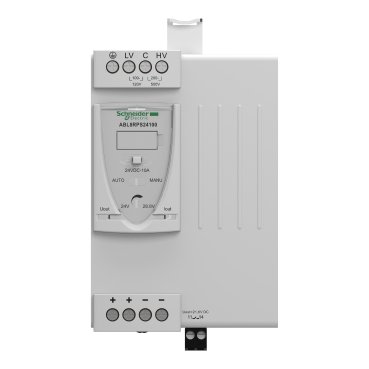

Schneider ABL8RPS24100 | universal power supply, Phaseo, 1 or 2 phase, 100 to 500 V, 24 V, 10 A
Schneider ABL8RPS24100 | universal power supply, Phaseo, 1 or 2 phase, 100 to 500 V, 24 V, 10 A
Original price was: EGP 217,364.00.EGP 119,551.00Current price is: EGP 119,551.00.
Description
Schneider ABL8RPS24100 | universal power supply, Phaseo, 1 or 2 phase, 100 to 500 V, 24 V, 10 A
Technical Specifications
- Product Type: Regulated Switch Mode Power Supply (SMPS).
- Input Voltage: 100-500V AC, supports single-phase or two-phase power input.
- Output Voltage: 24V DC.
- Output Current: 10A.
- Power Reserve: Can provide up to 150% of nominal power for short periods.
Key Features
Wide Input Voltage Range – Operates efficiently within 100V to 500V, making it suitable for diverse industrial applications.
Automatic Reset Function – Enables quick system recovery after short-term faults or overloads.
High Reliability – Ensures uninterrupted power supply for automation and control systems.
Eco-Friendly Design – Complies with Schneider Electric’s Green Premium™ standards for sustainability and energy efficiency
Applications
Industrial Automation – Provides stable power for PLCs, sensors, and control systems.
Control Panels – Ensures reliable energy distribution for electrical panels.
Process Control Systems – Maintains consistent voltage levels in automated processes.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of Product | Modicon Power Supply |
|---|---|
| Product or Component Type | Power supply |
| Power supply type | Regulated switch mode |
| Nominal input voltage | 100...120 V AC single phase N-L1 200...500 V AC phase to phase L1-L2 |
| Kw Rating | 240 W |
| Output voltage | 24 V DC |
| Power supply output current | 10 A |
| Permissible temporary current boost | 1.5 x In for 4 s) |
| Anti-harmonic filter | Low frequency harmonic currents |
| Efficiency at full load | 170...550 V AC 85...132 V AC |
|---|---|
| Inrush current | 30 A |
| Power factor | 0.68 at 240 V AC 0.69 at 120 V AC |
| Efficiency | 87 % |
| Output voltage adjustment | 24...28.8 V adjustable |
| Power dissipation in W | 31 W |
| Provided equipment | Power factor correction filter IEC 61000-3-2 |
| Output protection type | Against overload manual or automatic reset Against overvoltage 30...32 V, manual reset Against short-circuits manual or automatic reset Against undervoltage tripping if U < 21.6 V Thermal automatic reset |
| Connections - terminals | Removable screw terminal block 2 x 2.5 mm², diagnostic relay Screw type terminals 3 x 0.5...3 x 4 mm², AWG 22...AWG 12) input connection Screw type terminals 1 x 0.5...1 x 4 mm², AWG 22...AWG 12) input ground connection Screw type terminals 4 x 0.5...4 x 4 mm², AWG 22...AWG 12) output connection Screw type terminals 1 x 0.5...1 x 4 mm², AWG 22...AWG 12) output ground connection |
| Status LED | 1 LED (green and red) output voltage 1 LED (green, red and orange) output current |
| Depth | 5.7 in (145 mm) |
| Height | 4.9 in (125 mm) |
| Width | 3.4 in (86 mm) |
| Net Weight | 2.2 lb(US) (1 kg) |
| Output coupling | Parallel Series |
| Marking | CE |
| Mounting support | 35 x 7.5 mm symmetrical DIN rail 35 x 15 mm symmetrical DIN rail |
| Operating position | Vertical |
| Supply | SELV IEC 60950-1 SELV IEC 60204-1 SELV IEC 60364-4-41 |
| Dielectric strength | 3500 V with between input and ground 4000 V with between input and output 500 V with between output and ground |
| Standards | UL 508 CSA C22.2 No 60950-1 EN/IEC 62368-1 |
|---|---|
| Product certifications | CCSAus EAC KC RCM UL |
| Environmental characteristic | EMC IEC 61000-6-1 EMC IEC 61000-6-3 EMC EN 55024 EMC IEC 61000-6-4 EMC EN/IEC 61204-3 Safety IEC 60950-1 Safety EN/IEC 61204-3 |
| Operating altitude | 6561.68 ft (2000 m) |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | 122.0000000000…140.0000000000 °F (50…60 °C) with derating factor mounting position A < 6561.68 ft (2000 m) -13.0000000000…122.0000000000 °F (-25…50 °C) without derating mounting position A < 6561.68 ft (2000 m) |
| Category | US1CP1222525 |
|---|---|
| Discount Schedule | CP12 |
| GTIN | 3389119405621 |
| Returnability | Yes |
| Country of origin | PH |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.5 in (11.4 cm) |
| Package 1 Width | 6.4 in (16.2 cm) |
| Package 1 Length | 7.09 in (18.0 cm) |
| Package 1 Weight | 3.560 lb(US) (1.615 kg) |
| Unit Type of Package 2 | S06 |
| Number of Units in Package 2 | 60 |
| Package 2 Height | 28.9 in (73.5 cm) |
| Package 2 Width | 23.6 in (60.0 cm) |
| Package 2 Length | 31.5 in (80.0 cm) |
| Package 2 Weight | 249.1 lb(US) (113.0 kg) |
| Warranty | 18 months |
|---|
