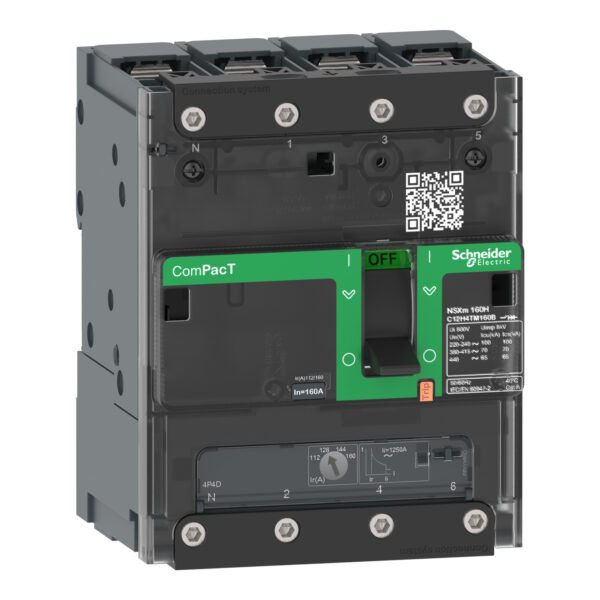

Schneider C11B6TM040L | circuit breaker ComPacT NSXm B (25 kA at 415 VAC), 4P 3d, 40 A rating TMD trip unit,connectors
Original price was: EGP 1,785,240.00.EGP 1,142,554.00Current price is: EGP 1,142,554.00.
Description
Schneider C11B6TM040L | circuit breaker ComPacT NSXm B (25 kA at 415 VAC), 4P 3d, 40 A rating TMD trip unit,connectors
Schneider C11B6TM040L Description
Introduction
When it comes to high-performance electrical components, Schneider Electric is a name that stands out. Among its impressive lineup, the Schneider C11B6TM040L is a product that has garnered attention for its remarkable features and versatility. But what exactly makes this component so special? In this article, we’ll delve deep into the details of the Schneider C11B6TM040L, exploring its specifications, features, applications, and much more.
Product Specifications
Dimensions and Weight
The Schneider C11B6TM040L boasts compact dimensions that make it suitable for a variety of installations. Measuring at [insert dimensions here], it is designed to fit seamlessly into tight spaces without compromising on performance. Additionally, its lightweight build ensures easy handling and installation.
Material and Build Quality
Constructed from high-quality materials, the C11B6TM040L offers exceptional durability and longevity. The robust build quality is evident in its resistance to wear and tear, making it a reliable choice for both industrial and residential applications.
Key Features
Advanced Technology
One of the standout features of the Schneider C11B6TM040L is its incorporation of advanced technology. This component is equipped with cutting-edge features that enhance its performance and reliability, setting it apart from conventional options.
User-Friendly Interface
Ease of use is a key consideration in the design of the C11B6TM040L. The user-friendly interface ensures that even those with minimal technical knowledge can operate it efficiently, making it a versatile choice for a wide range of users.
Energy Efficiency
In today’s world, energy efficiency is more important than ever. The Schneider C11B6TM040L is designed with this in mind, offering exceptional energy-saving capabilities that help reduce operational costs and environmental impact.
Applications and Uses
Industrial Applications
In industrial settings, the Schneider C11B6TM040L excels due to its robust performance and reliability. It is ideal for use in manufacturing plants, power stations, and other high-demand environments where consistent performance is crucial.
Residential Uses
The versatility of the C11B6TM040L extends to residential applications as well. It can be used in home automation systems, providing homeowners with a reliable and efficient solution for their electrical needs.
Commercial Applications
For commercial establishments, the C11B6TM040L offers a dependable solution that ensures uninterrupted operation. Its advanced features and energy efficiency make it a cost-effective choice for businesses of all sizes.
Installation Process
Pre-installation Requirements
Before installing the Schneider C11B6TM040L, it is essential to ensure that all pre-installation requirements are met. This includes verifying the compatibility of the component with existing systems and ensuring that all necessary tools and materials are available.
Step-by-Step Installation Guide
- Preparation: Ensure the power supply is turned off and the installation area is safe.
- Mounting: Secure the C11B6TM040L in the designated location using appropriate mounting hardware.
- Wiring: Connect the wiring according to the manufacturer’s instructions, ensuring all connections are secure.
- Testing: Once installed, test the component to ensure it is functioning correctly.
Safety Precautions
Safety should always be a top priority during installation. Follow all safety guidelines provided by the manufacturer, and consider consulting a professional if you are unsure about any aspect of the installation process.
Performance and Efficiency
Performance Metrics
The Schneider C11B6TM040L is known
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | ComPacT new generation |
|---|---|
| Product name | ComPacT NSXm new generation |
| Range of product | ComPacT NSXm new generation |
| Device short name | NSXm 63B |
| product or component type | Circuit breaker |
| Device application | Distribution |
| poles description | 4P |
| Protected poles description | 3D |
| Neutral position | Left |
| [In] rated current | 40 A at 40 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Utilisation category | Category A |
| [Icu] rated ultimate short-circuit breaking capacity | 50 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| Performance level | B 25 kA 415 V AC |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Trip unit protection functions | LI |
| Control type | Toggle |
| Circuit breaker mounting mode | Fixed |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
|---|---|
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ics] rated service short-circuit breaking capacity | 50 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 25 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 20 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 10 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical durability | 20000 cycles |
| Electrical durability | 20000 cycles at 440 V In/2 10000 cycles at 440 V In 10000 cycles at 690 V In/2 5000 cycles at 690 V In |
| Power dissipation per pole | 3.46 W |
| mounting support | Backplate |
| Mounting position | Horizontal and vertical Flat on the back |
| Upside connection | Front |
| downside connection | Front |
| Connection terminals | 1 Everlink lug wire size 2.5…95 mm², rigid or stranded aluminium/copper 1 Everlink lug wire size 2.5…70 mm², flexible copper |
| Connection pitch | 35 mm with spreaders 27 mm without spreaders |
| 9 mm pitches | 12 module |
| Trip unit rating | 40 A at 40 °C |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable |
| [Ir] long-time protection pick-up adjustment range | 0.7...1 x In |
| Long-time protection delay adjustment type tr | Fixed |
| Neutral protection settings | No protection (3D) |
| Instantaneous protection pick-up adjustment type Ii | Fixed |
| [Ii] instantaneous protection pick-up adjustment range | 600 A |
| Earth-leakage protection | Without |
| Number of slots for electrical auxiliaries | 1 slot(s) for auxiliary switch OF 1 slot(s) for alarm switch SD 1 slot(s) for voltage release MN or MX |
| Local signalling | Flag (green) for presence of auxiliary contacts |
| Width (W) | 108 mm |
| Height (H) | 137 mm |
| Depth (D) | 80 mm |
| net weight | 1.42 kg |
| Colour | Grey (RAL 7016) |
| Standards | EN/IEC 60947 |
|---|---|
| Pollution degree | 3 conforming to IEC 60664-1 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 2000 m without derating 5000 m with derating |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.000 cm |
| Package 1 Width | 13.000 cm |
| Package 1 Length | 22.000 cm |
| Package 1 Weight | 1.600 kg |
| Warranty | 18 months |
|---|
