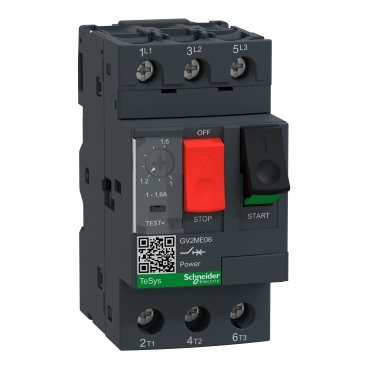

Schneider GV2ME14 | Motor circuit breaker, TeSys GV2, 3P, 6-10 A, thermal magnetic, screw clamp terminals
Original price was: EGP 54,635.00.EGP 29,503.00Current price is: EGP 29,503.00.
Description
Schneider GV2ME14 | Motor circuit breaker, TeSys GV2, 3P, 6-10 A, thermal magnetic, screw clamp terminals
The Schneider Electric GV2ME14 is a motor circuit breaker from the GV2 series, designed to provide reliable protection for motors and electrical circuits. Here’s a detailed description of the GV2ME14:
Schneider Electric GV2ME14 Motor Circuit Breaker
General Description:
- Series: GV2
- Product Type: Motor Circuit Breaker
- Function: The GV2ME14 is designed to protect motors against short circuits, overloads, and phase failures, ensuring reliable operation and safety.
Technical Specifications:
- Rated Current (In): Adjustable from 9 A to 14 A
- Poles: 3 poles
- Breaking Capacity: High breaking capacity suitable for industrial applications.
- Rated Operational Voltage (Ue): Up to 690 V AC
- Trip Unit: Thermal-magnetic trip unit provides overload and short-circuit protection.
Design and Construction:
- Size: Compact design for easy integration into motor control panels and distribution boards.
- Material: Constructed from high-quality materials to ensure durability and reliability under demanding conditions.
- Mounting: Suitable for DIN rail mounting, allowing for easy installation and maintenance.
Features:
- Thermal-Magnetic Trip: Provides dual protection with a thermal element for overload conditions and a magnetic element for short-circuit conditions.
- Adjustable Settings: Adjustable trip settings allow customization based on motor requirements, ensuring optimal protection.
- Manual Control: Equipped with a manual ON/OFF control and a reset button for ease of use.
- Indicator: Clear trip indication for easy identification of the breaker status.
Applications:
- Motor Protection: Ideal for protecting small to medium-sized motors in various industrial applications, including manufacturing, HVAC systems, and automation processes.
- Electrical Distribution: Suitable for use in motor control centers and electrical distribution panels.
Certifications and Standards:
- Compliance: Conforms to international standards such as IEC 60947-2 and IEC 60947-4-1, ensuring adherence to safety and performance requirements.
- Certifications: CE, UL, CSA, and other regional certifications affirm compliance with established quality and safety standards.
Advantages:
- Reliability: High breaking capacity and robust trip mechanisms ensure dependable protection for motor circuits, minimizing downtime and enhancing system reliability.
- Versatility: Adjustable trip settings and compact design make it suitable for a wide range of industrial applications.
- Ease of Installation: DIN rail mounting and compact design simplify installation and maintenance processes.
- Durability: Constructed with durable materials to withstand harsh industrial environments, ensuring long-term performance and reliability.
Summary
The Schneider Electric GV2ME14 motor circuit breaker is a reliable and versatile solution for protecting motors from overloads, short circuits, and phase failures in various industrial settings. With its thermal-magnetic trip unit, adjustable settings, and durable construction, it provides robust protection while offering ease of installation and maintenance. This makes the GV2ME14 an ideal choice for safeguarding motor circuits in demanding applications.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | TeSys Deca |
|---|---|
| Product name | TeSys GV2 TeSys Deca |
| product or component type | Motor circuit breaker |
| Device short name | GV2ME |
| Device application | Motor protection |
| Trip unit technology | Thermal-magnetic |
| poles description | 3P |
|---|---|
| Network type | AC |
| Utilisation category | Category A conforming to IEC 60947-2 AC-3 conforming to IEC 60947-4-1 AC-3e conforming to IEC 60947-4-1 |
| Network frequency | 50/60 Hz conforming to IEC 60947-4-1 |
| Fixing mode | 35 mm symmetrical DIN rail: clipped Panel: screwed (with adaptor plate) |
| Motor power kW | 3 kW at 400/415 V AC 50/60 Hz 4 kW at 400/415 V AC 50/60 Hz 4 kW at 500 V AC 50/60 Hz 5.5 kW at 500 V AC 50/60 Hz 5.5 kW at 690 V AC 50/60 Hz 7.5 kW at 690 V AC 50/60 Hz |
| Breaking capacity | 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 15 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Control type | Push-button |
| [In] rated current | 10 A |
| Thermal protection adjustment range | 6…10 A conforming to IEC 60947-4-1 |
| Magnetic tripping current | 138 A |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-4-1 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Phase failure sensitivity | Yes conforming to IEC 60947-4-1 |
| Suitability for isolation | Yes conforming to IEC 60947-1 § 7-1-6 |
| Power dissipation per pole | 2.5 W |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles for AC-3 at 415 V In 100000 cycles for AC-3e at 415 V In |
| Rated duty | Continuous conforming to IEC 60947-4-1 |
| Tightening torque | 1.7 N.m - on screw clamp terminal |
| Width | 45 mm |
| Height | 89 mm |
| Depth | 78.5 mm |
| net weight | 0.26 kg |
| Colour | Dark grey |
| Standards | EN/IEC 60947-2 EN/IEC 60947-4-1 |
|---|---|
| Product certifications | CCC UL CSA EAC ATEX LROS (Lloyds register of shipping) BV RINA DNV-GL UKCA |
| IK degree of protection | IK04 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Climatic withstand | Conforming to IACS E10 |
| Ambient air temperature for storage | -40…80 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-11 |
| Ambient air temperature for operation | -20…60 °C |
| Mechanical robustness | Shocks: 30 Gn for 11 ms Vibrations: 5 Gn, 5...150 Hz |
| Operating altitude | 2000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.500 cm |
| Package 1 Width | 8.500 cm |
| Package 1 Length | 9.000 cm |
| Package 1 Weight | 272.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.773 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 384 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 116.368 kg |
| Warranty | 18 months |
|---|
