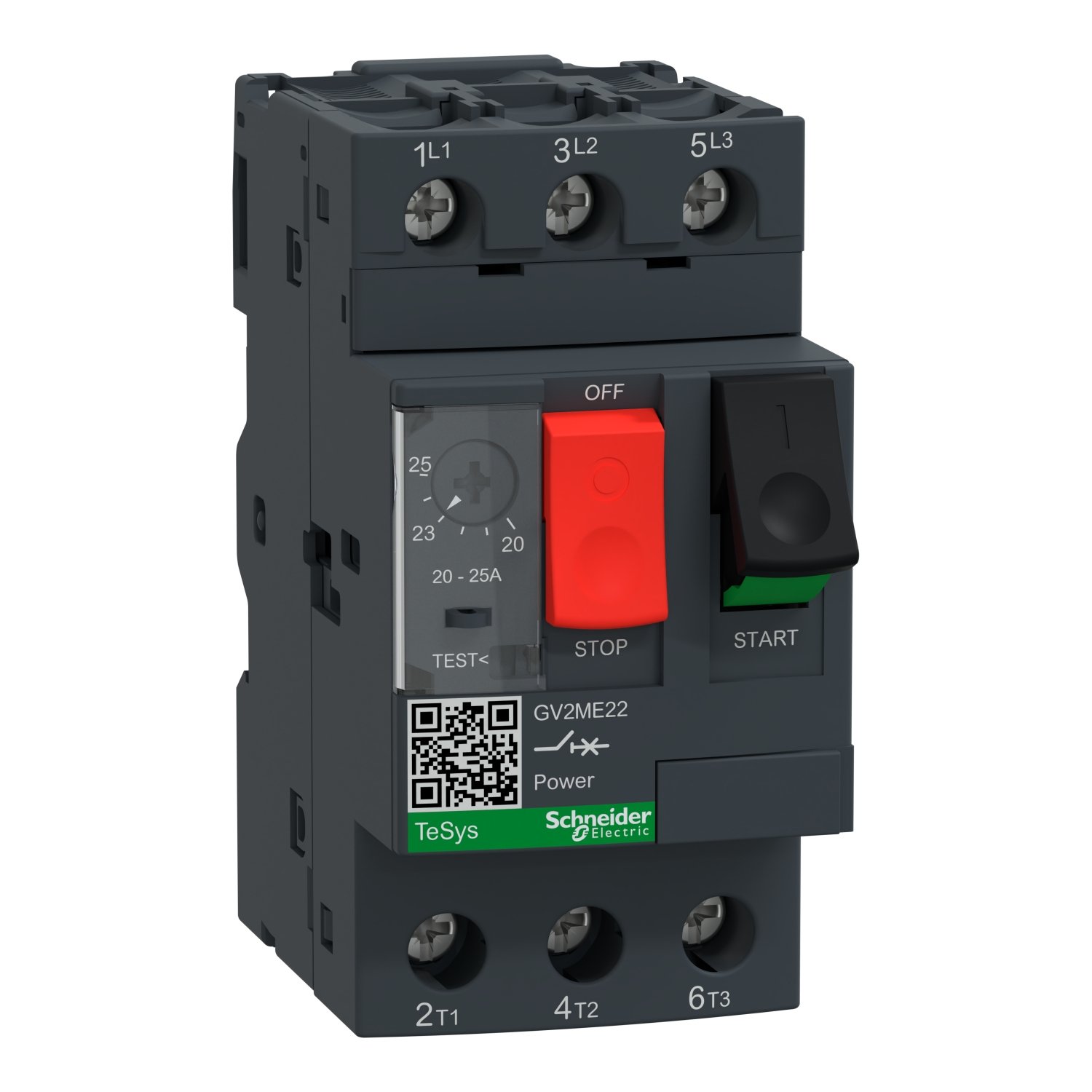

Schneider GV2ME22 | Motor circuit breaker, TeSys GV2, 3P, 20-25 A, thermal magnetic, screw clamp terminals
Schneider GV2ME22 | Motor circuit breaker, TeSys GV2, 3P, 20-25 A, thermal magnetic, screw clamp terminals
Original price was: EGP 62,985.00.EGP 34,012.00Current price is: EGP 34,012.00.
Description
Schneider GV2ME22 | Motor circuit breaker, TeSys GV2, 3P, 20-25 A, thermal magnetic, screw clamp terminals
The Schneider GV2ME22 is a thermal-magnetic motor circuit breaker from the TeSys GV2 range. Designed for optimal protection and control of electric motors, this model offers excellent reliability and ease of use for currents ranging from 20 to 25 amperes.
Product Overview:
-
Brand: Schneider Electric
-
Series: TeSys GV2
-
Model Number: GV2ME22
-
Function: Motor Circuit Breaker
-
Type of Protection: Thermal (overload) + Magnetic (short circuit)
-
Number of Poles: 3 poles
-
Rated Current Range: 20 A to 25 A
-
Terminal Type: Screw clamp terminals
-
Control Type: Push-button ON/OFF with a visible trip indicator
Key Features:
-
Adjustable Thermal Setting: Enables precise motor protection within the 20–25 A range
-
Magnetic Trip Mechanism: Provides fast response to short circuits
-
Compact Design: Space-saving for control panels
-
Manual Operation: Easy start/stop and reset directly from the front
-
Clear Trip Indication: Helps with quick diagnostics and fault identification
-
Mounting: Suitable for DIN rail or screw mounting
Electrical Ratings:
-
Rated Operational Voltage (Ue): Up to 690 V AC
-
Rated Insulation Voltage (Ui): 690 V
-
Frequency: 50/60 Hz
-
Conformity Standards:
-
IEC 60947-2 (Circuit breakers)
-
IEC 60947-4-1 (Motor protection)
-
Applications:
-
Industrial motor protection in automation systems
-
HVAC systems, compressors, pumps, and machine tools
-
Used in control panels, distribution boards, and motor starters
-
Ideal for environments where compact protection and manual control are required
Benefits:
-
All-in-one thermal and magnetic protection
-
Easy to install and adjust
-
Reduces wiring time and panel complexity
-
High reliability and long service life
-
Compatible with accessories like auxiliary contacts and shunt trips
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | TeSys Deca |
|---|---|
| Product name | TeSys GV2 TeSys Deca |
| Product or component type | Motor circuit breaker |
| Device short name | GV2ME |
| Device application | Motor protection |
| Trip unit technology | Thermal-magnetic |
| Poles description | 3P |
|---|---|
| Network type | AC |
| Utilisation category | Category A conforming to IEC 60947-2 AC-3 conforming to IEC 60947-4-1 AC-3e conforming to IEC 60947-4-1 |
| Network frequency | 50/60 Hz conforming to IEC 60947-4-1 |
| Fixing mode | 35 mm symmetrical DIN rail: clipped Panel: screwed (with adaptor plate) |
| Motor power kW | 11 kW at 400/415 V AC 50/60 Hz 15 kW at 500 V AC 50/60 Hz |
| Breaking capacity | 50 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 15 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 6 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 4 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 40 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 50 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 75 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| control type | Push-button |
| [In] rated current | 25 A |
| Thermal protection adjustment range | 20…25 A conforming to IEC 60947-4-1 |
| Magnetic tripping current | 327 A |
| [Ith] conventional free air thermal current | 25 A conforming to IEC 60947-4-1 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Phase failure sensitivity | Yes conforming to IEC 60947-4-1 |
| Suitability for isolation | Yes conforming to IEC 60947-1 § 7-1-6 |
| Power dissipation per pole | 2.5 W |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles for AC-3 at 415 V In 100000 cycles for AC-3e at 415 V In |
| Rated duty | Continuous conforming to IEC 60947-4-1 |
| Tightening torque | 1.7 N.m - on screw clamp terminal |
| Width | 45 mm |
| height | 89 mm |
| Depth | 78.5 mm |
| Net weight | 0.26 kg |
| Colour | Dark grey |
| Standards | EN/IEC 60947-2 EN/IEC 60947-4-1 |
|---|---|
| product certifications | CCC UL CSA EAC ATEX LROS (Lloyds register of shipping) BV RINA DNV-GL UKCA |
| IK degree of protection | IK04 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Climatic withstand | Conforming to IACS E10 |
| Ambient air temperature for storage | -40…80 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-11 |
| Ambient air temperature for operation | -20…60 °C |
| Mechanical robustness | Shocks: 30 Gn for 11 ms Vibrations: 5 Gn, 5...150 Hz |
| Operating altitude | 2000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.500 cm |
| Package 1 Width | 8.500 cm |
| Package 1 Length | 9.500 cm |
| Package 1 Weight | 287.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 7.129 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 384 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 122.064 kg |
| Warranty | 18 months |
|---|
