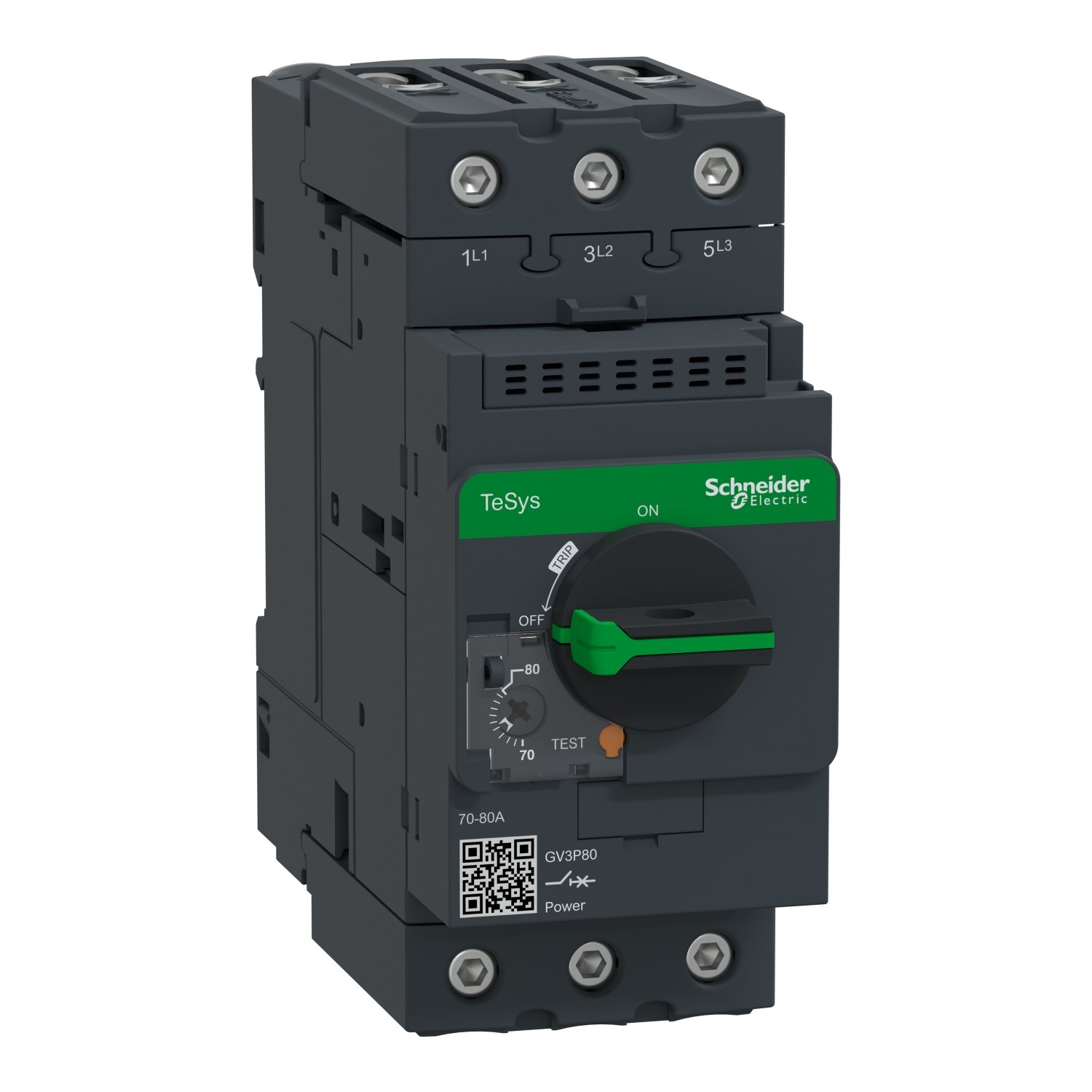

Schneider GV3P80 | Motor circuit breaker, TeSys GV3, 3P, 70-80 A, thermal magnetic, EverLink terminals
Schneider GV3P80 | Motor circuit breaker, TeSys GV3, 3P, 70-80 A, thermal magnetic, EverLink terminals
Original price was: EGP 255,246.00.EGP 137,833.00Current price is: EGP 137,833.00.
Description
Schneider GV3P80 | Motor circuit breaker, TeSys GV3, 3P, 70-80 A, thermal magnetic, EverLink terminals
Technical Specifications:
-
Part Number: GV3P80
-
Series: TeSys GV3
-
Device Type: Motor Circuit Breaker
-
Poles: 3P (Three-pole)
-
Current Range: Adjustable from 70 to 80 A
-
Protection Type: Thermal-magnetic
-
Thermal protection for overloads
-
Magnetic protection for short-circuits
-
-
Terminal Type: EverLink terminals (anti-loosening, spring pressure technology)
-
Mounting: DIN rail or panel mounting
-
Breaking Capacity: High-performance, designed for industrial motor protection
Key Features:
-
Comprehensive Motor Protection
-
Offers dual thermal and magnetic protection, safeguarding motors against both overloads and short-circuits.
-
-
Adjustable Current Range
-
Fine-tune settings between 70–80 A to match motor requirements, optimizing protection and performance.
-
-
EverLink Technology
-
Innovative terminal design that maintains a secure and stable connection, even under thermal cycling or vibrations—ideal for long-term reliability.
-
-
Compact & Modular Design
-
Space-saving and suitable for standard industrial control panels or distribution boards.
-
-
Easy to Install
-
Designed for DIN rail or panel mounting, with clear front access for wiring and adjustments.
-
Typical Applications:
-
Protection of large motors in industrial environments
-
Electrical panels for pumps, compressors, conveyors, and fans
-
Automation systems requiring adjustable overload protection
-
Facilities needing manual switching with built-in safety
-
Reliable protection in harsh or high-vibration settings
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | TeSys Deca |
|---|---|
| Product name | TeSys GV3 TeSys Deca |
| Product or component type | Motor circuit breaker |
| Device short name | GV3P |
| Device application | Motor protection |
| Trip unit technology | Thermal-magnetic |
| poles description | 3P |
|---|---|
| network type | AC |
| Utilisation category | AC-3 conforming to IEC 60947-4-1 |
| Network frequency | 50/60 Hz |
| Fixing mode | 35 mm symmetrical DIN rail: clipped Panel: screwed (with 3 x M4 screws) |
| Motor power kW | 45 kW at 400/415 V AC 50/60 Hz maximum peak current 750 A 45 kW at 500 V AC 50/60 Hz maximum peak current 750 A 55 kW at 690 V AC 50/60 Hz maximum peak current 750 A |
| Breaking capacity | 65 kA Icu at 230/240 V AC 50/60 Hz 50 kA Icu at 400/415 V AC 50/60 Hz 50 kA Icu at 440 V AC 50/60 Hz 12 kA Icu at 500 V AC 50/60 Hz 6 kA Icu at 690 V AC 50/60 Hz |
| [Ics] rated service short-circuit breaking capacity | 100 % at 230/240 V AC 50/60 Hz 60 % at 400/415 V AC 50/60 Hz 60 % at 440 V AC 50/60 Hz 50 % at 500 V AC 50/60 Hz 50 % at 690 V AC 50/60 Hz |
| Control type | Rotary handle |
| [In] rated current | 80 A |
| Thermal protection adjustment range | 70…80 A conforming to IEC 60947-4-1 |
| Magnetic tripping current | 1120 A |
| [Ith] conventional free air thermal current | 80 A conforming to IEC 60947-4-1 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Phase failure sensitivity | Yes conforming to IEC 60947-4-1 |
| Suitability for isolation | Yes conforming to IEC 60947-1 |
| Power dissipation per pole | 8 W |
| Mechanical durability | 50000 cycles |
| Electrical durability | 20000 cycles for AC-3 at 415 V In |
| Rated duty | Continuous conforming to IEC 60947-4-1 |
| Tightening torque | 5 N.m - on screw clamp terminal |
| Width | 55 mm |
| Height | 132 mm |
| Depth | 136 mm |
| Net weight | 0.96 kg |
| Colour | Dark grey |
| Standards | EN/IEC 60947-2 EN/IEC 60947-4-1 |
|---|---|
| Product certifications | CCC CSA EAC ATEX LROS (Lloyds register of shipping) BV ABS DNV-GL UKCA |
| IK degree of protection | IK09 enclosure |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Climatic withstand | conforming to IACS E10 |
| Ambient air temperature for storage | -40…80 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-11 |
| Ambient air temperature for operation | -20…60 °C |
| Mechanical robustness | Shocks: 5 Gn for 11 ms contactor open Shocks: 30 Gn for 11 ms contactor closed Vibrations: 4 Gn, 5...300 Hz |
| Operating altitude | 3000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.500 cm |
| Package 1 Width | 14.500 cm |
| Package 1 Length | 16.000 cm |
| Package 1 Weight | 1.020 kg |
| Unit Type of Package 2 | S06 |
| Number of Units in Package 2 | 120 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 135.500 kg |
| Warranty | 18 months |
|---|
