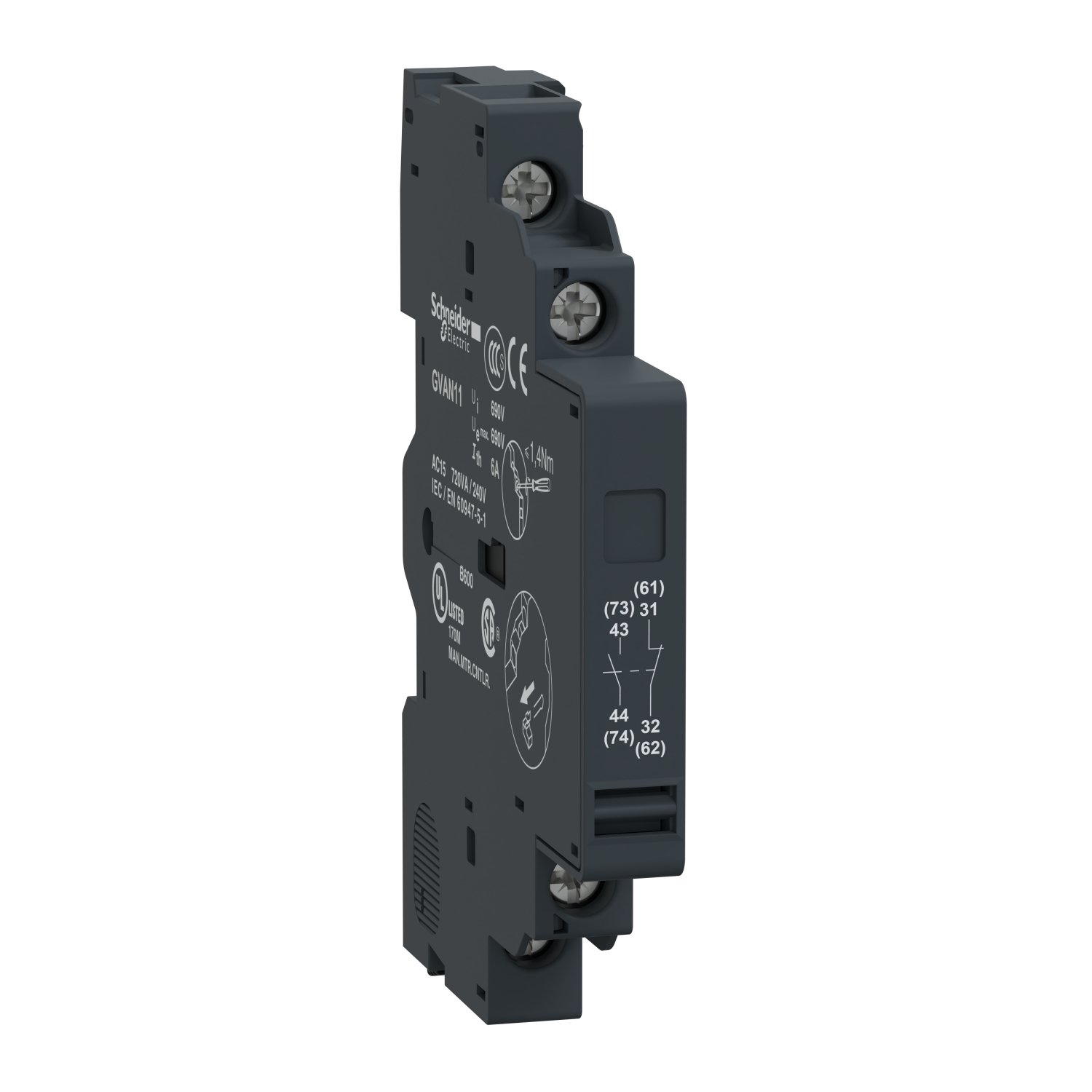

Schneider GVAN11 | TeSys GV2 & GV3 – auxiliary contact block – 1 NO + 1 NC
Schneider GVAN11 | TeSys GV2 & GV3 – auxiliary contact block – 1 NO + 1 NC
EGP 1,217.00
Description
Schneider GVAN11 | TeSys GV2 & GV3 – auxiliary contact block – 1 NO + 1 NC
The Schneider Electric GVAN11 is an auxiliary contact block compatible with TeSys GV2 and GV3 motor circuit breakers. It provides one normally open (1 NO) and one normally closed (1 NC) contact for side mounting, enabling status indication and advanced control logic in motor protection and automation systems.
Technical Specifications – Schneider GVAN11
-
Model Number: GVAN11
-
Compatibility: Designed for use with Schneider TeSys GV2 and GV3 motor circuit breakers
-
Mounting Type: Side mounting
-
Contact Configuration: 1 Normally Open (1 NO) + 1 Normally Closed (1 NC)
-
Rated Operational Current: Up to 6 A at 400 V AC
-
Connection Type: Screw clamp terminals
-
Standards Compliance: Conforms to IEC 60947-5-1
-
Operating Temperature Range: -20°C to +60°C
Key Benefits:
-
Side-Mount Design: Saves space and enhances panel layout flexibility
-
Dual Signal Output: Ideal for both open and closed circuit feedback
-
Reliable Integration: Seamless with Schneider GV2/GV3 breakers
-
Versatile Use: Supports both control signaling and monitoring applications
Applications:
-
Status signaling for motor starters and breakers
-
Remote monitoring and interlocking in control panels
-
Industrial process automation
-
HVAC, water treatment, conveyors, and more
-
TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO+1NC instantaneous auxiliary contacts. Rated for operation up to 6A/690V AC and 6A/240V DC. To be installed on left-hand side of the circuit breaker (2 blocks mounting possible), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | TeSys TeSys Deca |
|---|---|
| Device short name | GVAN |
| Product or component type | Auxiliary contact block |
| Product compatibility | GV2ME GV2RT GV2L GV3P GV3L GV2LE GV2P |
| Mounting location | Left side |
| Pole contact composition | 1 NO + 1 NC |
| [Ui] rated insulation voltage | 600 V conforming to UL 508 690 V conforming to IEC 60947-1 600 V conforming to CSA C22.2 No 14 |
|---|---|
| [Ue] rated operational voltage | 48...690 V AC 24...240 V DC |
| [Ith] conventional free air thermal current | 6 A |
| Mechanical durability | 100000 cycles |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 17 V |
| Protection type | GB2CB... circuit breaker GG fuse 10 A |
| Rated operational power in VA | 300 VA at 48 V AC-15 - electrical durability: 100000 cycles 414 VA at 690 V AC-15 - electrical durability: 100000 cycles 500 VA at 110…127 V AC-15 - electrical durability: 100000 cycles 500 VA at 500 V AC-15 - electrical durability: 100000 cycles 650 VA at 440 V AC-15 - electrical durability: 100000 cycles 720 VA at 230…240 V AC-15 - electrical durability: 100000 cycles 850 VA at 380…415 V AC-15 - electrical durability: 100000 cycles |
| Rated operational power in W | 120 W at 240 V DC-13 - electrical durability: 100000 cycles 140 W at 110 V DC-13 - electrical durability: 100000 cycles 140 W at 24 V DC-13 - electrical durability: 100000 cycles 180 W at 60 V DC-13 - electrical durability: 100000 cycles 240 W at 48 V DC-13 - electrical durability: 100000 cycles |
| Tightening torque | 1.4 N.m - on screw clamp terminals |
| height | 89 mm |
| Width | 9.3 mm |
| Depth | 66 mm |
| Net weight | 0.05 kg |
| Colour | Dark grey |
| Environmental characteristic | Normal environment |
|---|---|
| product certifications | UKCA |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.500 cm |
| Package 1 Width | 7.000 cm |
| Package 1 Length | 9.000 cm |
| Package 1 Weight | 46.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 9.500 cm |
| Package 2 Width | 10.000 cm |
| Package 2 Length | 15.200 cm |
| Package 2 Weight | 510.000 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 60 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 3.294 kg |
| Warranty | 18 months |
|---|
