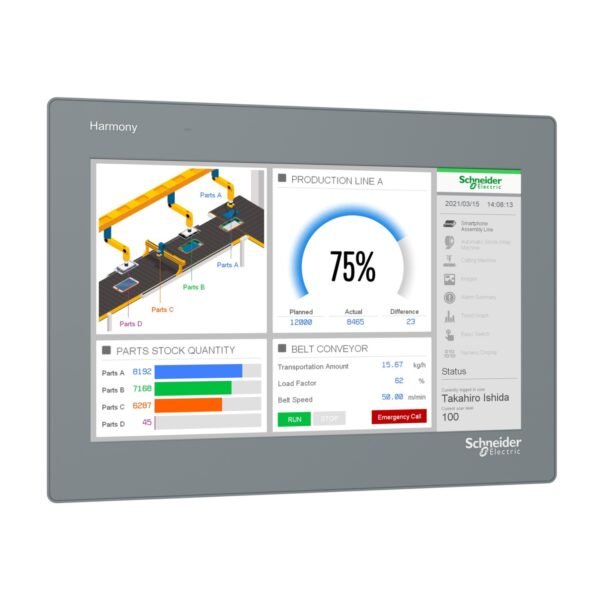

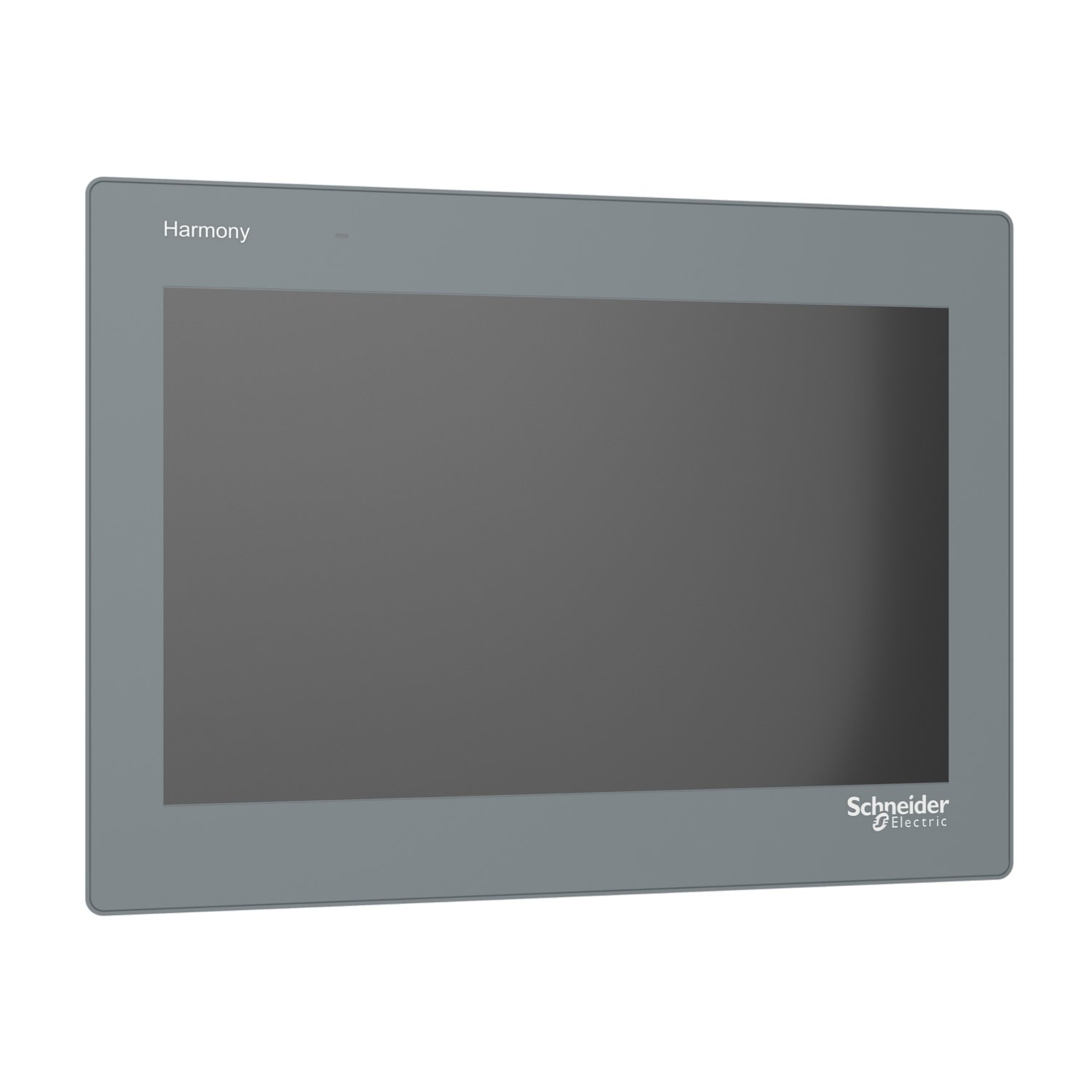

Schneider HMIET6600 | 12″ wide screen touch panel, 16M colors, COM x 2, ETH x 1, USB host / device, RTC, DC24V
Schneider HMIET6600 | 12″ wide screen touch panel, 16M colors, COM x 2, ETH x 1, USB host / device, RTC, DC24V
-
High-resolution 12″ display delivers enhanced clarity for operators and better visualization of real-time data.
-
Ethernet + dual COM ports provide flexible communication with various industrial devices and networks.
-
USB host/device ports streamline software updates and external device integration.
-
Industrial-grade IP65 front panel ensures durability in harsh working conditions.
-
Reliable real-time operation with RTC for precise automation and diagnostics.
Description
Schneider HMIET6600 | 12″ wide screen touch panel, 16M colors, COM x 2, ETH x 1, USB host / device, RTC, DC24V
The Schneider HMIET6600 is a high-performance 12-inch wide-screen Human-Machine Interface (HMI) designed for industrial automation, offering advanced connectivity, vibrant visuals, and reliable operation. It serves as a powerful interface between operators and machines, enhancing process monitoring and control.
Technical Specifications HMIET6600
-
Display Size: 12 inches (wide-screen format, 16:9)
-
Display Type: TFT LCD with 16 million colors
-
Resolution: Typically 1280 × 800 pixels (WXGA)
-
Touchscreen: Resistive or capacitive touch (model dependent)
-
Communication Interfaces:
-
2 x COM ports (RS232/RS485)
-
1 x Ethernet port (ETH x1)
-
1 x USB host port
-
1 x USB device port
-
-
Power Supply: 24V DC
-
Built-in Real-Time Clock (RTC): Yes
-
Mounting Type: Panel mount
-
Front Panel Protection: IP65 (dust and water resistant)
-
Operating Temperature: 0°C to +50°C
Key Features HMIET6600
-
Large 12” wide-screen display with crisp, full-color graphics to clearly visualize complex processes and data.
-
Multi-interface connectivity, supporting serial and Ethernet communication with PLCs, controllers, and SCADA systems.
-
Built-in RTC ensures precise time stamping for alarms, logs, and scheduled automation tasks.
-
USB host/device allows for easy firmware updates, project uploads, data logging, and peripheral support.
-
Robust industrial design, built for continuous use in demanding environments.
Typical Applications:
-
Industrial automation systems for factories, production lines, and processing plants.
-
Machine control interfaces in sectors like packaging, food & beverage, pharmaceuticals, and automotive.
-
SCADA systems for real-time control and monitoring.
-
Energy and facility management, including HVAC and smart building systems.
-
OEM machinery integration, offering a user-friendly, high-resolution HMI.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Easy Harmony ET6 |
|---|---|
| Product or component type | Touch panel screen |
| Software designation | Vijeo Designer Basic |
| Operating system | VxWorks |
| Processor name | ARM Cortex-A8 |
| Display size | 12 inch |
|---|---|
| Display type | Colour TFT LCD |
| Display colour | 16 million colours |
| Display resolution | 1280 x 800 pixels WXGA |
| Touch panel | Single touch analogue resistive |
| Brightness | 16 levels |
| Character font | ASCII ASCII (European characters) Chinese (simplified Chinese) Japanese (ANK, Kanji) Katakana Korean Taiwanese (traditional Chinese) |
| [Us] rated supply voltage | 24 V DC +/- 20 % |
| Inrush current | 30 A |
| Local signalling | Status LED green, steady for operating Status LED orange, steady for software starting up Status LED red, steady for power supply (ON) Status LED, off for power supply (OFF) |
| Power consumption in W | 14 W |
| Number of pages | 200 application pages |
| Processor frequency | 800 MHz |
| Port Ethernet | 10/100BASE |
| Memory description | Device memory 256 MB User data memory 256 MB Backup memory 128 kB |
| Integrated connection type | 1 COM1 serial link - 1 SUB-D 9-pin male - RS232C (rate: 2400...115200 bps)bottom 1 COM2 serial link - 1 SUB-D 9-pin male - RS422/RS485 (rate: 2400...115200 bps)bottom COM2 serial link (rate: 2400...187500 bps)bottom 1 Ethernetbottom 1 USB 2.0 type Aback 1 USB 2.0 type micro Bback |
| Supply | External supply |
| Realtime clock | Built-in 0...50 °C Built-in 10...90 % RH |
| Downloadable protocols | Modbus Uni-TE Third party protocols |
| Product brand | Schneider Electric |
| Fixing mode | By 4 screws, mounting on 1.6...5 mm thick panel |
| Cut-out dimensions | 295 x 217 mm panel cut dimension |
| Height | 233 mm |
| Width | 311 mm |
| Depth | 50 mm |
| Net weight | 1.62 kg |
| Immunity to microbreaks | 5 ms |
|---|---|
| Enclosure material | PC |
| Front material | Plastic |
| Standards | EN 61000-6-4 EN 61000-6-2 EN 61131-2 UL 61010-2-201 CSA C22.2 No 61010-1-201 |
| Product certifications | CE UL EAC (pending) KC-Mark (pending) |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Ambient air temperature for operation | 0…50 °C |
| Ambient air temperature for storage | -20…60 °C |
| Relative humidity | 10…90 % non-condensing |
| Operating altitude | 2000 m |
| IP degree of protection | IP20 (rear panel) conforming to IEC 61131-2 IP65 (front panel) conforming to IEC 61131-2 |
| Shock resistance | 147 m/s² for 11 ms (X, Y, Z directions for 3 times) conforming to EN/IEC 61131-2 |
| Vibration resistance | +/- 3.5 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2 9.8 m/s² (f = 9…150 Hz) |
| Electromagnetic compatibility | Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (signal ports) Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3 Electrostatic discharge immunity test - test level: 8 kV (air discharge) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.2 cm |
| Package 1 Width | 18.5 cm |
| Package 1 Length | 28.5 cm |
| Package 1 Weight | 2.21 kg |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 34.5 cm |
| Package 2 Width | 41.5 cm |
| Package 2 Length | 54.5 cm |
| Package 2 Weight | 9.78 kg |
