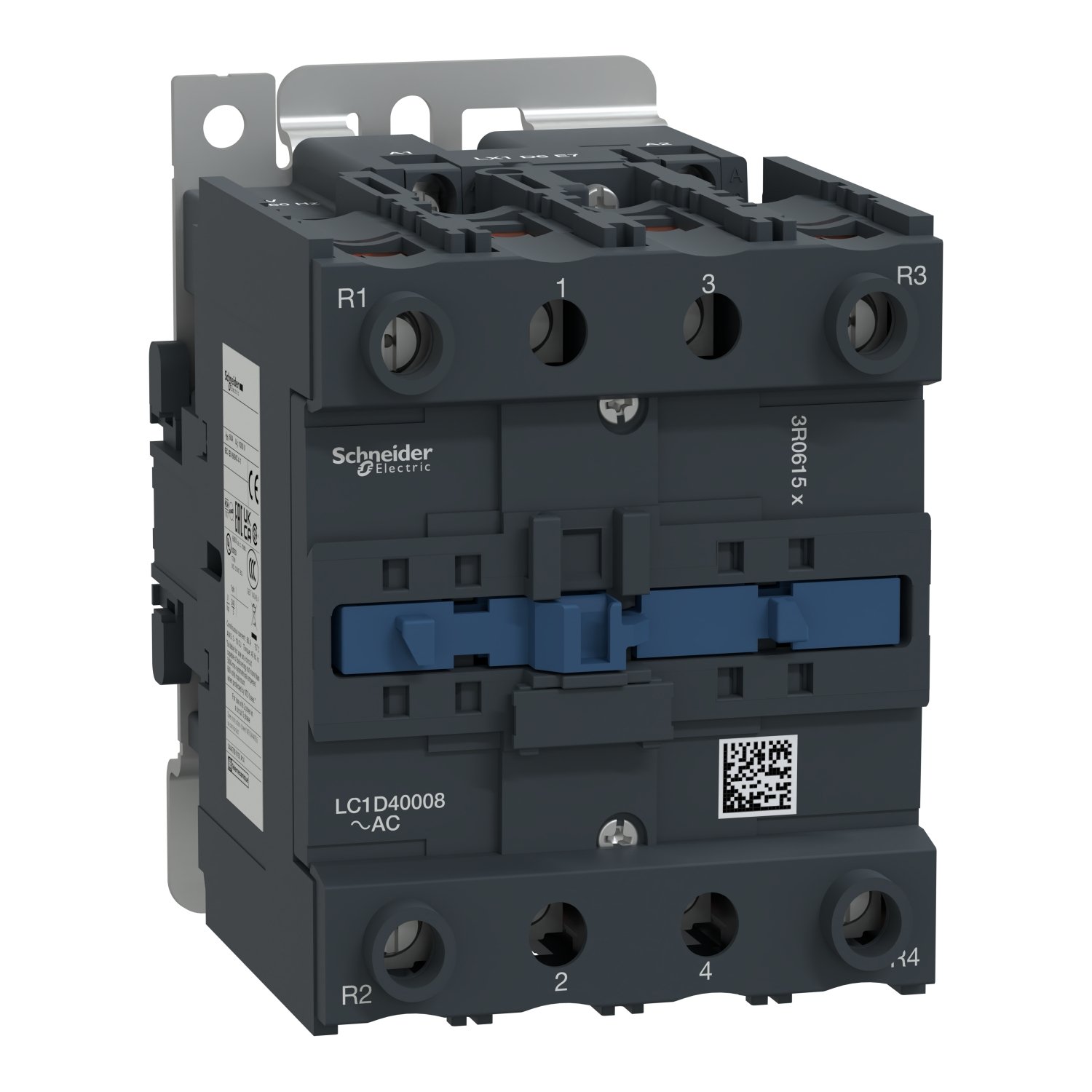

Schneider LC1D40008M7 | TeSys D contactor – 4P(2 NO + 2 NC) – AC-1 <= 440 V 60 A 220 V AC 50/60 Hz coil
Schneider LC1D40008M7 | TeSys D contactor – 4P(2 NO + 2 NC) – AC-1 <= 440 V 60 A 220 V AC 50/60 Hz coil
Original price was: EGP 100,406.00.EGP 54,219.00Current price is: EGP 54,219.00.
Description
Schneider LC1D40008M7 | TeSys D contactor – 4P(2 NO + 2 NC) – AC-1 <= 440 V 60 A 220 V AC 50/60 Hz coil
The Schneider Electric LC1D40008M7 is a TeSys D contactor designed for industrial and commercial applications, offering high performance and reliability. This contactor is engineered to control electrical motors and other heavy-duty electrical equipment, providing efficient and safe operation in various systems.
Specifications:
- Model: LC1D40008M7 TeSys D Contactor
- Type: 4-Pole (2 Normally Open + 2 Normally Closed Contacts)
- Rating: AC-1 (for general purpose, non-inductive loads)
- Voltage Rating: Operates with a voltage of ≤ 440 V
- Current Rating: Can handle up to 60 A.
- Coil Voltage: 220 V AC, suitable for both 50 Hz and 60 Hz applications.
- Size: Designed to fit into a variety of systems requiring substantial power control.
Features:
- High Current Handling: Can manage up to 60 A, making it suitable for high-load applications and motor control.
- Versatile Contacts: Equipped with 2 Normally Open (NO) and 2 Normally Closed (NC) contacts, offering flexibility in circuit control.
- AC-1 Rating: Ideal for controlling non-inductive loads like resistive loads or general-purpose applications.
- Easy Installation: Designed for quick and easy installation into various industrial control systems.
- Long Operational Life: Built to last, offering durability and long-term reliability in demanding industrial environments.
- High Voltage Tolerance: Works efficiently with voltage up to 440 V, allowing compatibility with a wide range of systems.
Applications:
- Motor Control: Excellent for controlling motors, particularly in heavy-duty equipment and industrial machinery.
- General Electrical Control: Used in systems where non-inductive loads need to be controlled reliably and safely.
- Industrial Systems: Perfect for a variety of industrial applications, including manufacturing processes, machinery, and automation systems.
- Power Distribution: Ideal for systems requiring high-power switching and protection, such as motor starters, pumps, and HVAC systems.
How It Works:
The LC1D40008M7 contactor operates by controlling the flow of electricity in a circuit. When the 220 V AC coil is energized, it activates the contactor, allowing the opening and closing of the electrical contacts. The 2 Normally Open contacts (NO) will close, while the 2 Normally Closed contacts (NC) will open, enabling or interrupting power flow to the connected equipment, such as motors or other devices.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | TeSys |
|---|---|
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| Device short name | LC1D |
| Contactor application | Resistive load |
| Utilisation category | AC-1 |
| Poles description | 4P |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 25...400 Hz Power circuit: <= 300 V DC |
| [Ie] rated operational current | 60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| Compatibility code | LC1D |
|---|---|
| Pole contact composition | 2 NO + 2 NC |
| Protective cover | With |
| [Ith] conventional free air thermal current | 60 A (at 60 °C) for power circuit |
| Irms rated making capacity | 800 A at 440 V for power circuit conforming to IEC 60947 |
| Rated breaking capacity | 800 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 320 A 40 °C - 10 s for power circuit 720 A 40 °C - 1 s for power circuit 72 A 40 °C - 10 min for power circuit 165 A 40 °C - 1 min for power circuit |
| Associated fuse rating | 80 A gG at <= 690 V coordination type 1 for power circuit 80 A gG at <= 690 V coordination type 2 for power circuit |
| Average impedance | 1.5 mOhm - Ith 60 A 50 Hz for power circuit |
| Power dissipation per pole | 5.4 W AC-1 |
| [Ui] rated insulation voltage | Power circuit: 600 V CSA certified Power circuit: 600 V UL certified Power circuit: 690 V conforming to IEC 60947-4-1 |
| overvoltage category | III |
| pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Mechanical durability | 6 Mcycles |
| Electrical durability | 1.4 Mcycles 60 A AC-1 at Ue <= 440 V |
| Control circuit type | AC at 50/60 Hz |
| Coil technology | Without built-in suppressor module |
| Control circuit voltage limits | 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz 0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz 0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz 1...1.1 Uc (60…70 °C):operational AC 50/60 Hz |
| Inrush power in VA | 140 VA 60 Hz cos phi 0.75 (at 20 °C) 160 VA 50 Hz cos phi 0.75 (at 20 °C) |
| Hold-in power consumption in VA | 13 VA 60 Hz cos phi 0.3 (at 20 °C) 15 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation | 4…5 W at 50/60 Hz |
| Operating time | 4...19 ms opening 12...26 ms closing |
| Maximum operating rate | 3600 cyc/h at 60 °C |
| Connections - terminals | Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 1…35 mm² - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 2 1…25 mm² - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 1…35 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 1…25 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 1…35 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 1…25 mm² - cable stiffness: solid without cable end |
| Tightening torque | Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 Power circuit: 8 N.m - on screw clamp terminals - cable 25…35 mm² hexagonal screw head 4 mm Power circuit: 5 N.m - on screw clamp terminals - cable 1…25 mm² hexagonal screw head 4 mm Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 |
| Mounting support | Plate Rail |
| Standards | CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508 |
|---|---|
| Product certifications | RINA GL UL GOST BV LROS (Lloyds register of shipping) DNV CCC CSA |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Protective treatment | TH conforming to IEC 60068-2-30 |
| Climatic withstand | conforming to IACS E10 exposure to damp heat |
| Permissible ambient air temperature around the device | -40…60 °C 60…70 °C with derating |
| Operating altitude | 0...3000 m |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Mechanical robustness | Shocks contactor open (8 Gn for 11 ms) Shocks contactor closed (10 Gn for 11 ms) Vibrations contactor opened (2 Gn, 5...300 Hz) Vibrations contactor closed (4 Gn, 5...300 Hz) |
| Height | 127 mm |
| Width | 85 mm |
| Depth | 125 mm |
| Product weight | 1.44 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.2 cm |
| Package 1 Width | 13.5 cm |
| Package 1 Length | 15.2 cm |
| Package 1 Weight | 1.47 kg |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 7.605 kg |
| Warranty | 18 months |
|---|
