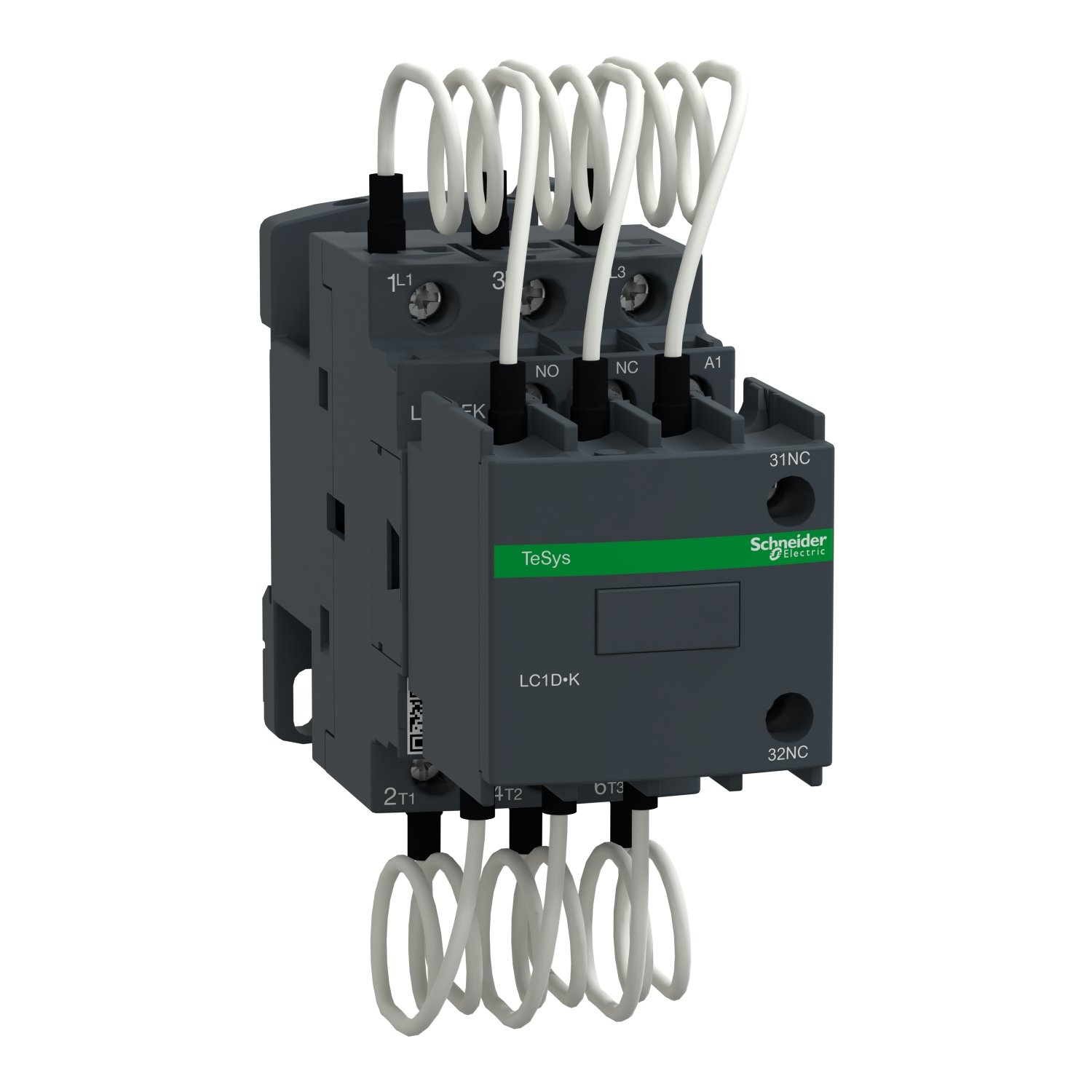

Schneider LC1DFKM7 | Capacitor contactor, TeSys D, 12.5 kVAR at 400 V/50 Hz, coil 220 V AC 50/60 Hz
Schneider LC1DFKM7 | Capacitor contactor, TeSys D, 12.5 kVAR at 400 V/50 Hz, coil 220 V AC 50/60 Hz
Original price was: EGP 67,275.00.EGP 50,457.00Current price is: EGP 50,457.00.
Description
Schneider LC1DFKM7 | Capacitor contactor, TeSys D, 12.5 kVAR at 400 V/50 Hz, coil 220 V AC 50/60 Hz
Technical Specifications
-
Brand: Schneider Electric
-
Series: TeSys D
-
Model: LC1DFKM7
-
Contactor Type: Capacitor Contactor
-
Rated Power: 12.5 kVAR at 400 V, 50 Hz
-
Utilization Category: AC-6b (designed for capacitor switching)
-
Coil Voltage: 220 V AC, 50/60 Hz
-
Pre-Charge Resistors: Built-in damping resistors to limit inrush current
-
Electrical Durability: High switching cycles for reliable performance
-
Mounting Type: DIN rail or screw mounting
-
Standards Compliance: IEC 60947-4-1 for capacitor switching applications
Key Features
-
Optimized for Capacitor Switching: Specially designed for power factor correction applications, ensuring smooth operation with minimal inrush current.
-
Built-in Damping Resistors: Reduces electrical stress on the system by limiting capacitor inrush currents.
-
High Electrical Durability: Designed for frequent switching cycles, making it ideal for industrial power correction systems.
-
Reliable 220 V AC Coil: Ensures stable operation in standard electrical networks.
-
Compact and Durable Design: Easily fits into electrical panels with DIN rail or screw mounting.
-
Compatible with Power Factor Correction Panels: Works seamlessly with automatic capacitor banks and reactive power compensation systems.
Applications
-
Power Factor Correction: Used in capacitor banks to improve power factor in industrial and commercial facilities.
-
Industrial Electrical Panels: Essential for power quality management in manufacturing plants and large electrical networks.
-
Energy Efficiency Solutions: Helps reduce electricity costs by minimizing reactive power consumption.
-
Automatic Power Factor Control (APFC) Systems: Plays a key role in automated capacitor switching for optimal energy efficiency.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | TeSys TeSys Deca |
|---|---|
| Product name | TeSys LC1D.K TeSys Deca |
| Product or component type | Capacitor duty contactor |
| Device short name | LC1DFK |
| Device application | Control |
| contactor application | Power factor correction |
| Utilisation category | AC-6b |
| poles description | 3P |
| power pole contact composition | 3 NO |
| [Ue] rated operational voltage | Power circuit: 690 V AC 50/60 Hz |
| Reactive power rating | 7 kvar at 230 V AC 50 Hz 60 °C 12.5 kvar at 400 V AC 50 Hz 60 °C 13 kvar at 440 V AC 50 Hz 60 °C 21 kvar at 690 V AC 50 Hz 60 °C |
| Control circuit type | AC at 50/60 Hz |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| Auxiliary contact composition | 1 NO + 2 NC instantaneous |
| Electrical durability | 300000 cycles at Ue 400 V 200000 cycles at Ue 690 V |
| Mounting support | DIN rail Plate |
| Standards | EN/IEC 60947-1 EN/IEC 60947-4-1 IEC 60335-1 |
| Product certifications | IECEE CB Scheme UKCA |
| Connections - terminals | Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: solid Power circuit: screw clamp terminals 2 1.5…4 mm² - cable stiffness: solid Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 1.5…4 mm² - cable stiffness: flexible with cable end |
| Tightening torque | Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 1.7 N.m - on screw clamp terminals |
| Maximum operating rate | 240 cyc/h |
| Auxiliary contacts type | type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1 |
|---|
| IP degree of protection | IP20 front face conforming to IEC 60529 |
|---|---|
| Ambient air temperature for operation | -5…60 °C |
| Ambient air temperature for storage | -60…80 °C |
| Operating altitude | 0...3000 m |
| Height | 115 mm |
| Width | 45 mm |
| Depth | 121 mm |
| Net weight | 0.53 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.800 cm |
| Package 1 Width | 20.000 cm |
| Package 1 Length | 22.400 cm |
| Package 1 Weight | 538.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.717 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 48 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 37.736 kg |
| Warranty | 18 months |
|---|
