HomeIndustrial Automation and ControlContactors and Protection RelaysEasypact TVSEasyPact TVS contactorsSchneider LC1E3201M5 | EasyPact TVS contactor 3P(3 NO) – AC-3 – <= 440 V 32A – 220 V AC coil
new-46%
,

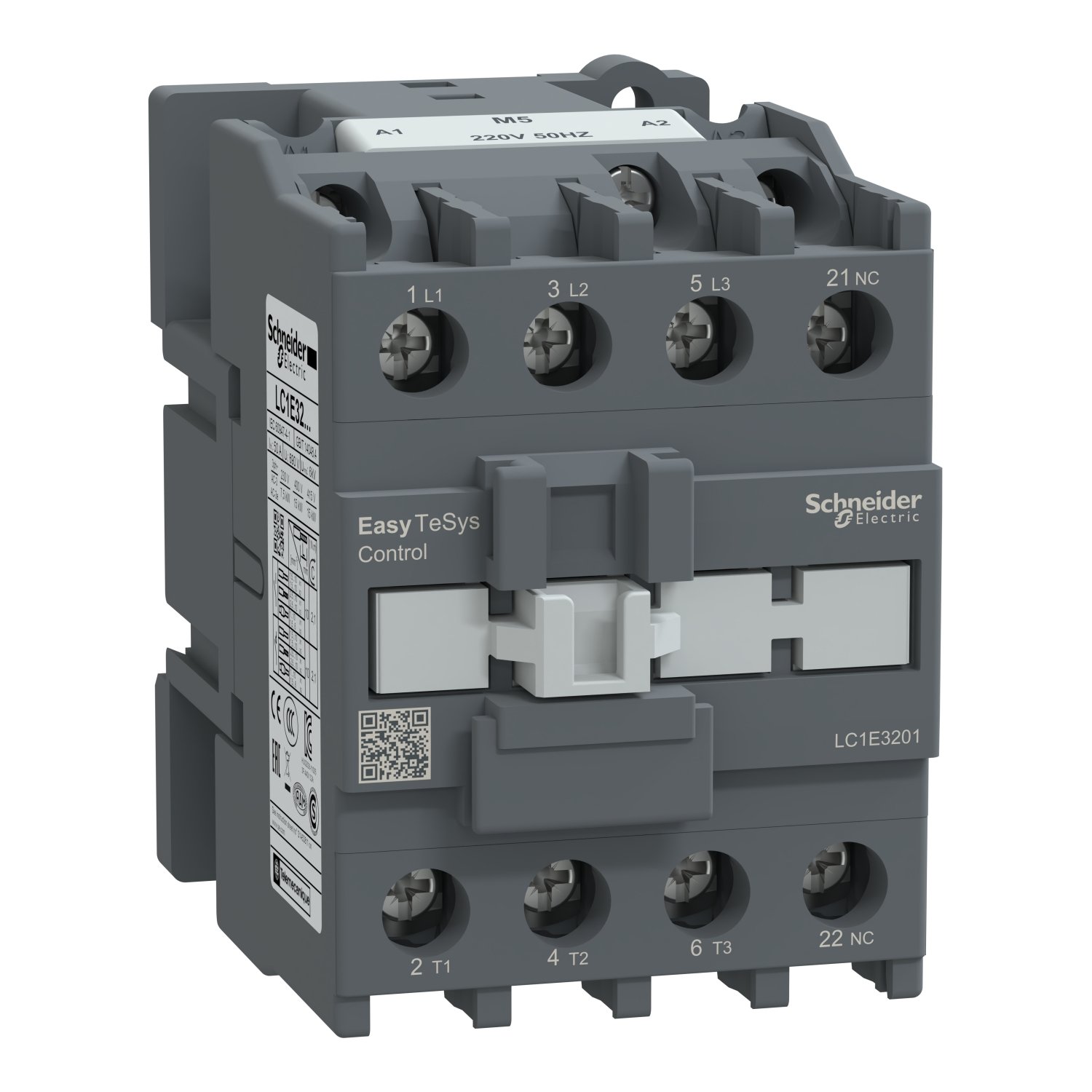

Schneider LC1E3201M5 | EasyPact TVS contactor 3P(3 NO) – AC-3 – <= 440 V 32A – 220 V AC coil

Original price was: EGP 27,178.00.Current price is: EGP 14,676.00.
Compare
LC1E3201M5
Brand:

Description

Schneider LC1E3201M5| EasyPact TVS contactor 3P(3 NO) – AC-3 – <= 440 V 32A – 220 V AC coil

Schneider LC1E3201M5 | EasyPact TVS Contactor, 3P (3NO), AC-3, ≤440V, 32A, 220V AC Coil, 50Hz, 1NC Auxiliary Contact

1. Introduction

The Schneider LC1E3201M5 is a 3-pole (3NO) contactor from the EasyPact TVS series, designed for motor control and power switching in industrial applications. It operates in AC-3 applications up to 440V with a 32A current rating and features a 220V AC coil (50Hz). This model includes a 1NC (Normally Closed) auxiliary contact, making it ideal for efficient motor control and automation systems.

2. Key Features

  • Rated Current: 32A (AC-3)

  • Voltage Rating: ≤440V

  • Number of Poles: 3P (3 Normally Open – 3NO)

  • Auxiliary Contact: 1NC (Normally Closed)

  • Coil Voltage: 220V AC, 50Hz

  • Compact & Durable Design

  • High Electrical & Mechanical Durability

  • Compatible with Overload Relays for motor protection

  • Quick & Easy Installation

3. Technical Specifications

  • Product Series: EasyPact TVS

  • Utilization Category: AC-3 (Motor Control Applications)

  • Rated Current (Ie): 32A

  • Operating Voltage: ≤440V

  • Coil Voltage: 220V AC, 50Hz

  • Number of Poles: 3P (3NO)

  • Auxiliary Contact Configuration: 1NC

  • Mechanical Durability: Up to 10 million operations

  • Electrical Durability: Up to 1 million operations (AC-3)

  • Operating Temperature: -5°C to +55°C

  • Compliance Standards: IEC 60947-4-1

4. Applications

The LC1E3201M5 contactor is widely used in industrial and commercial applications, including:

  • Motor Control – Ensures smooth switching and protection of motors

  • HVAC Systems – Regulates air conditioning, fans, and compressors

  • Pumping Systems – Controls water and fluid pumps

  • Lighting Control – Manages high-power lighting circuits

  • Industrial Automation – Integrates into control panels for automation processes

5. Benefits

  • Reliable and Efficient Performance – Designed for long-term use

  • Compact & Space-Saving Design – Ideal for electrical control panels

  • Versatile Application Range – Suitable for multiple industrial needs

  • Quick Installation & Maintenance – Reduces downtime

  • Built-in 1NC Auxiliary Contact – Enhances monitoring and control functions

  • Seamless Compatibility – Works with Schneider overload relays for motor protection

Additional information

brands

Schneider Electric

Specifications

Main
Range Easy TeSys
Range of product Easy TeSys Control
Product or component type Contactor
Device short name LC1E
Contactor application Motor control Resistive load
Utilisation category AC-3 AC-3e AC-1
Poles description 3P
[Ue] rated operational voltage Power circuit: <= 690 V AC 50/60 Hz
[Ie] rated operational current 32 A (at <55 °C) at <= 440 V AC AC-3 for power circuit 32 A (at <55 °C) at <= 440 V AC AC-3e for power circuit 50 A (at <55 °C) at <= 440 V AC AC-1 for power circuit
[Uc] control circuit voltage 220 V AC 50 Hz
Complementary
Motor power kW 7.5 kW at 220...230 V AC 50/60 Hz 15 kW at 380...400 V 15 kW at 415 V 15 kW at 440 V 18.5 kW at 500 V 18.5 kW at 660...690 V
Pole contact composition 3 NO
[Ith] conventional free air thermal current 50 A (at 55 °C) for power circuit
Irms rated making capacity 320 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Rated breaking capacity 256 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current 260 A 40 °C - 10 s for power circuit 138 A 40 °C - 60 s for power circuit 60 A 40 °C - 600 s for power circuit
Associated fuse rating 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1 63 A gG at <= 690 V coordination type 1 for power circuit
Average impedance 2.5 mOhm - Ith 50 A 50 Hz for power circuit
Power dissipation per pole 2 W AC-3 5 W AC-1
[Ui] rated insulation voltage 690 V conforming to IEC 60947-4-1
Overvoltage category III
pollution degree 3
[Uimp] rated impulse withstand voltage 6 kV coil not connected to the power circuit conforming to IEC 60947
Mechanical durability 8000000 cycles
Electrical durability 1000000 cycles AC-3 350000 cycles AC-1
Control circuit type AC at 50 Hz
Control circuit voltage limits 0.85...1.1 Uc (-5…55 °C):operational 50 Hz 0.3...0.6 Uc (-5…55 °C):drop-out 50 Hz
Inrush power in VA 95 VA 50 Hz cos phi 0.75 (at 20 °C) 95 VA 60 Hz cos phi 0.75 (at 20 °C)
Hold-in power consumption in VA 8.3 VA 50 Hz cos phi 0.3 (at 20 °C) 8.5 VA 60 Hz cos phi 0.3 (at 20 °C)
Heat dissipation 2…3 W for control circuit
Operating time 12...22 ms on closing 4...19 ms on opening
Maximum operating rate 1800 cyc/h 60 °C
Connections - terminals Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 1…6 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end
Tightening torque Control circuit: 1.2 N.m Power circuit: 2.1 N.m
Auxiliary contact composition 1 NC
Minimum switching voltage 17 V for control circuit
Minimum switching current 5 mA for control circuit
Insulation resistance > 10 MOhm for control circuit
Non-overlap time 1.5 ms on energisation guaranteed between NC and NO contact 1.5 ms on de-energisation guaranteed between NC and NO contact
Mounting support DIN rail Plate
Environment
Standards IEC 60947-4-1 IEC 60947-1 IEC 60947-5-1
Product certifications EAC CE
IP degree of protection IP2X conforming to IEC 60529
Protective treatment TH (pollution degree 3) conforming to IEC 60068-2-30 test Db
Permissible ambient air temperature around the device -20…70 °C at Uc -60…80 °C storage -5…55 °C operation
Operating altitude 3000 m without derating
Fire resistance 850 °C conforming to IEC 60695-2-1
Mechanical robustness Vibrations contactor open (1.5 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor closed (10 Gn for 11 ms) Shocks contactor open (6 Gn for 11 ms)
Height 84 mm
Width 56 mm
Depth 86 mm
Net weight 0.45 kg
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.100 cm
Package 1 Width 8.600 cm
Package 1 Length 9.200 cm
Package 1 Weight 445.800 g
Unit Type of Package 2 S02
Number of Units in Package 2 24
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 11.249 kg
Contractual warranty
Warranty 18 months

Main documents

Main documents

Datasheet Download Datasheet
Product datasheet LC1E3201M5
Instruction sheet
 Download
Catalog Download
Environmental disclosure
 Download
CAD Files Download

Main documents

Datasheet Download Datasheet
Product datasheet LC1E3201M5
Instruction sheet
 Download
Catalog Download
Environmental disclosure
 Download
CAD Files Download
