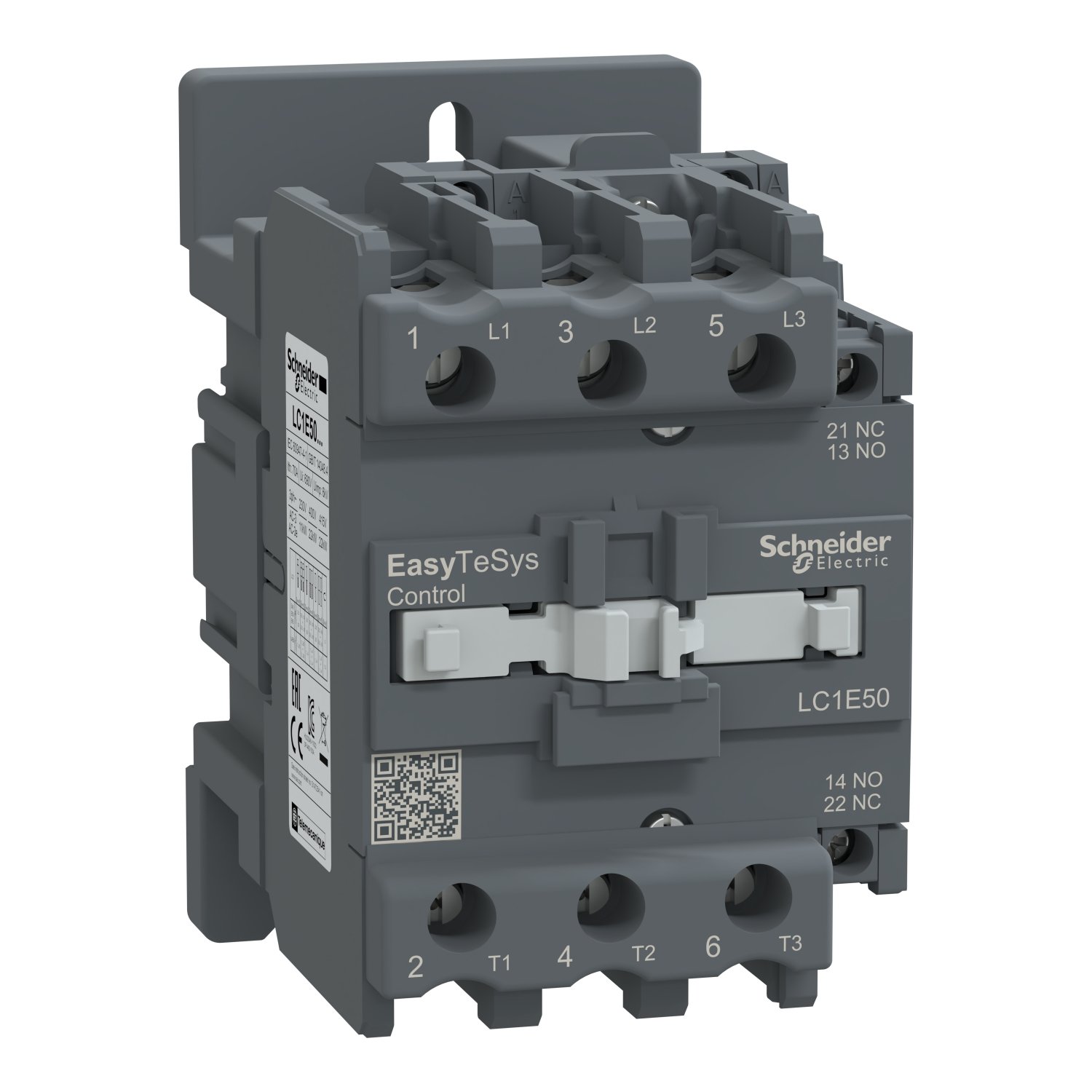

Schneider LC1E50M7 | Easy TeSys contactor 3P(3 NO) – AC-3 – <= 440 V 50A – 220 V AC coil
Schneider LC1E50M7 | Easy TeSys contactor 3P(3 NO) – AC-3 – <= 440 V 50A – 220 V AC coil
Original price was: EGP 49,123.00.EGP 26,527.00Current price is: EGP 26,527.00.
Description
Schneider LC1E50M7 | Easy TeSys contactor 3P(3 NO) – AC-3 – <= 440 V 50A – 220 V AC coil
The Schneider LC1E50M7 is a high-performance contactor from the Easy TeSys series, designed for efficient control of electrical circuits in industrial and commercial applications. This contactor is ideal for switching and controlling electrical loads, with a rated current of 50A and a 220V AC coil voltage. Its design ensures long-term durability and reliability, making it suitable for various demanding environments.
Technical Specifications
Here are the key technical details of the LC1E50M7 contactor:
- Model: LC1E50M7
- Brand: Schneider Electric
- Number of Poles: 3P (3 NO)
- Maximum Operating Voltage (AC-3/AC-3e): Up to 440V
- Rated Current (AC-3): 50A
- Coil Voltage: 220V AC
- Frequency: 50/60Hz
- Design: Compact and robust, designed for easy installation in control panels
- Compliance: Meets IEC 60947-4-1 standards
Key Features
The Schneider LC1E50M7 contactor offers several features that make it a top choice for professionals:
- Reliable Performance – Handles medium to high-power electrical loads with ease.
- Durable Construction – Made with high-quality materials to withstand the harsh conditions of industrial environments.
- Space-Saving Design – The compact design allows for easy installation in control panels without taking up much space.
- Energy Efficient – Opt
- ntrol – Ideal for controlling electric motors in industrial machinery, production lines, and other equipment.
- Control Panels – Used in electrical control panels to manage switching functions for equipment and machinery.
- Light
- imized for low power consumption while maintaining consistent performance.
- Enhanced Safety – Designed with safety features to protect against overloading and electrical faults.
- Global Compatibility – Operates efficiently on 50/60Hz power networks, ensuring compatibility with international standards.
Applications
The LC1E50M7 contactor is versatile and can be used in various applications, such as:
- Motor Coing Systems – Suitable for controlling large-scale lighting circuits in commercial or industrial environments.
- Industrial Automation – Applied in automated systems for the management and operation of various types of machinery and devices.
- HVAC Systems – Used in heating, ventilation, and air conditioning systems to regulate power and improve energy efficiency.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | Easy TeSys |
|---|---|
| Range of product | Easy TeSys Control |
| Product or component type | Contactor |
| Device short name | LC1E |
| Contactor application | Motor control Resistive load |
| Utilisation category | AC-3 AC-3e AC-1 |
| Poles description | 3P |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
| [Ie] rated operational current | 50 A (at <55 °C) at <= 440 V AC AC-3 for power circuit 40 A (at <55 °C) at <= 440 V AC AC-3e for power circuit 70 A (at <55 °C) at <= 440 V AC AC-1 for power circuit |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| Motor power kW | 15 kW at 220...230 V AC 50/60 Hz 22 kW at 380...400 V 25 kW at 415 V 30 kW at 440 V 30 kW at 500 V 33 kW at 660...690 V |
|---|---|
| Pole contact composition | 3 NO |
| [Ith] conventional free air thermal current | 70 A (at 55 °C) for power circuit |
| Irms rated making capacity | 500 A at 440 V AC for power circuit conforming to IEC 60947-4-1 |
| Rated breaking capacity | 400 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 400 A 40 °C - 10 s for power circuit 208 A 40 °C - 60 s for power circuit 84 A 40 °C - 600 s for power circuit |
| Associated fuse rating | 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1 100 A gG at <= 690 V coordination type 1 for power circuit |
| Average impedance | 1.5 mOhm - Ith 70 A 50 Hz for power circuit |
| Power dissipation per pole | 3.8 W AC-3 7.4 W AC-1 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 |
| overvoltage category | III |
| pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 6 kV coil not connected to the power circuit conforming to IEC 60947 |
| Mechanical durability | 5000000 cycles |
| Electrical durability | 350000 cycles AC-1 900000 cycles AC-3 |
| Control circuit type | AC at 50/60 Hz |
| Control circuit voltage limits | 0.85...1.1 Uc (-5…55 °C):operational 50/60 Hz 0.3...0.6 Uc (-5…55 °C):drop-out 50/60 Hz |
| Inrush power in VA | 160 VA 50 Hz cos phi 0.75 (at 20 °C) 140 VA 60 Hz cos phi 0.75 (at 20 °C) |
| Hold-in power consumption in VA | 15 VA 50 Hz cos phi 0.3 (at 20 °C) 13 VA 60 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation | 6…10 W for control circuit |
| Operating time | 20...26 ms on closing 8...12 ms on opening |
| Maximum operating rate | 1200 cyc/h 60 °C |
| Connections - terminals | Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 2.5…25 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 2.5…10 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 2.5…25 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 2.5…16 mm² - cable stiffness: solid without cable end |
| Tightening torque | Control circuit: 1.2 N.m Power circuit: 5 N.m |
| Auxiliary contact composition | 1 NO + 1 NC |
| Minimum switching voltage | 17 V for control circuit |
| Minimum switching current | 5 mA for control circuit |
| Insulation resistance | > 10 MOhm for control circuit |
| Non-overlap time | 1.5 ms on energisation guaranteed between NC and NO contact 1.5 ms on de-energisation guaranteed between NC and NO contact |
| Mounting support | DIN rail Plate |
| Standards | IEC 60947-5-1 IEC 60947-4-1 IEC 60947-1 |
|---|---|
| Product certifications | EAC CE |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Protective treatment | TH (pollution degree 3) conforming to IEC 60068-2-30 test Db |
| Permissible ambient air temperature around the device | -20…70 °C at Uc -60…80 °C storage -5…55 °C operation |
| Operating altitude | 3000 m without derating |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Mechanical robustness | Vibrations contactor open (1.5 Gn, 5...300 Hz) Vibrations contactor closed (3 Gn, 5...300 Hz) Shocks contactor open (6 Gn for 11 ms) Shocks contactor closed (7 Gn for 11 ms) |
| Height | 127 mm |
| Width | 75 mm |
| Depth | 114 mm |
| Product weight | 0.98 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.200 cm |
| Package 1 Width | 12.500 cm |
| Package 1 Length | 13.100 cm |
| Package 1 Weight | 976.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 9 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 9.164 kg |
