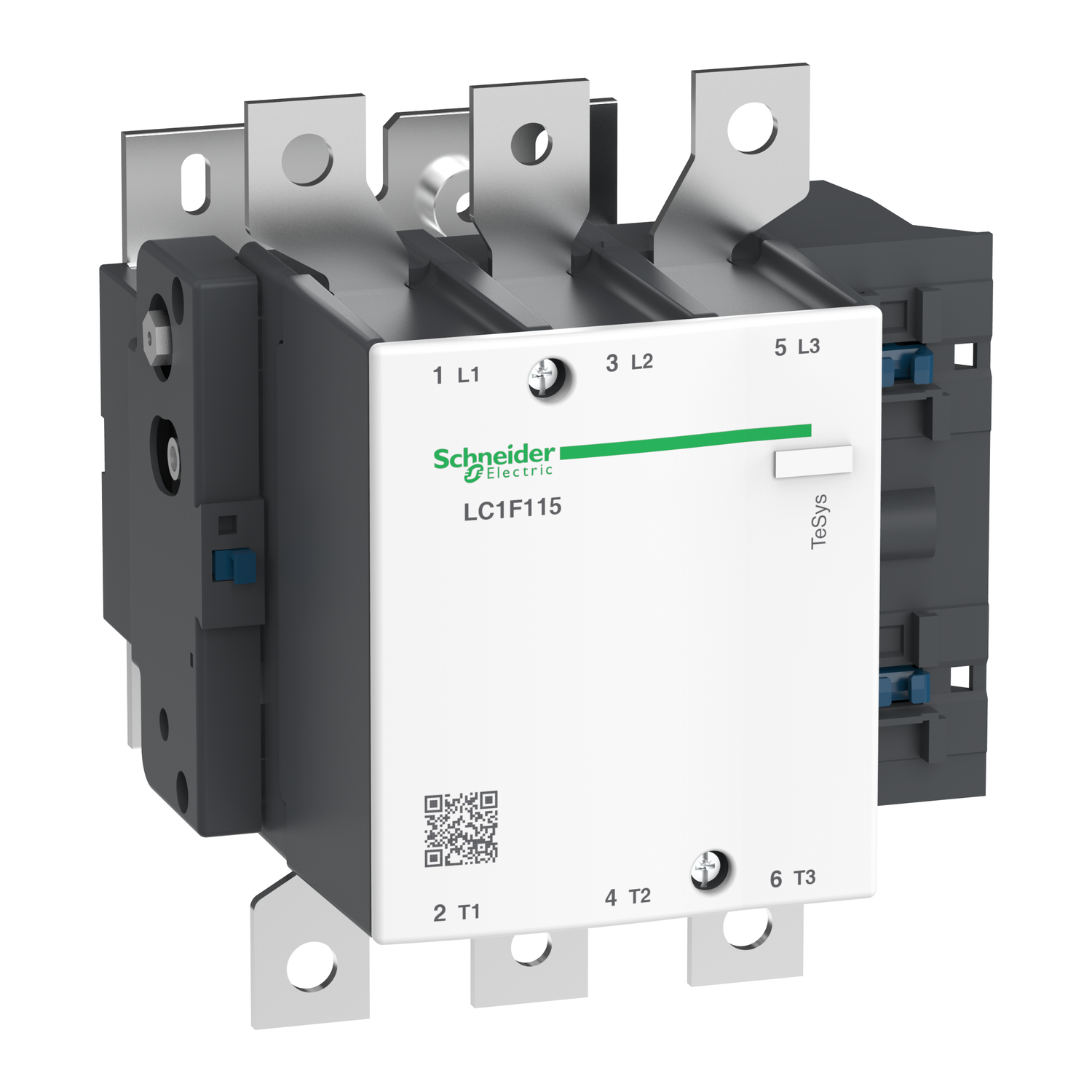

Schneider LC1F115M7 | TeSys F contactor – 3P (3 NO) – AC-3 – <= 440 V 115 A – coil 220 V AC
Schneider LC1F115M7 | TeSys F contactor – 3P (3 NO) – AC-3 – <= 440 V 115 A – coil 220 V AC
Original price was: EGP 546,972.00.EGP 300,835.00Current price is: EGP 300,835.00.
Description
Schneider LC1F115M7 | TeSys F contactor – 3P (3 NO) – AC-3 – <= 440 V 115 A – coil 220 V AC
Technical Specifications
-
Brand: Schneider Electric
-
Series: TeSys F
-
Model: LC1F115M7
-
Contactor Type: 3P (Three Normally Open Contacts)
-
Utilization Category: AC-3 (Motor Control)
-
Maximum Voltage: ≤ 440 V
-
Rated Current: 115 A
-
Coil Voltage: 220 V AC, 50/60 Hz
-
Electrical Durability: Designed for high switching cycles
-
Mounting Type: Panel mounting
-
Terminal Type: Bolt-on terminals for secure connections
-
Mechanical Life: Millions of operations for long-lasting performance
-
Compliance Standards: IEC 60947-4-1 for industrial motor control
Key Features
-
High Power Handling: Supports heavy-duty motors and industrial loads up to 115 A.
-
Reliable 220 V AC Coil: Ensures stable and efficient operation in industrial control systems.
-
Robust and Durable Design: Built for high-performance applications, ensuring long-term reliability.
-
Bolt-on Terminals: Provides secure and strong electrical connections for high-current applications.
-
Long-Lasting Performance: High mechanical and electrical durability reduces maintenance costs.
-
Flexible Mounting: Designed for panel mounting, making it suitable for large control panels.
-
Compatible with Accessories: Can be used with overload relays and auxiliary contacts for enhanced functionality.
Applications
-
Heavy-Duty Motor Control: Ideal for large three-phase motors in industrial automation and manufacturing.
-
Power Distribution Systems: Used in high-power electrical panels for load management.
-
Industrial Machinery: Suitable for conveyors, crushers, and high-power equipment.
-
Pumping Stations: Reliable for large-scale water treatment, irrigation, and industrial pumps.
-
HVAC and Refrigeration: Controls large compressors, chillers, and ventilation systems.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | TeSys |
|---|---|
| Range of product | TeSys F |
| Product or component type | Contactor |
| Device short name | LC1F |
| contactor application | Resistive load Motor control |
| Utilisation category | AC-3 AC-1 AC-4 |
| poles description | 3P |
| [Ue] rated operational voltage | <= 690 V AC 50/60 Hz <= 460 V DC |
| [Uc] control circuit voltage | 220 V AC 40...400 Hz |
| [Ie] rated operational current | 200 A (at <40 °C) at <= 440 V AC-1 115 A (at <55 °C) at <= 440 V AC-3 |
| [Uimp] rated impulse withstand voltage | 8 kV |
|---|---|
| [Ith] conventional free air thermal current | 200 A (at 40 °C) |
| Rated breaking capacity | 920 A conforming to IEC 60947-4-1 |
| [Icw] rated short-time withstand current | 1100 A 40 °C - 10 s 640 A 40 °C - 30 s 520 A 40 °C - 1 min 400 A 40 °C - 3 min 320 A 40 °C - 10 min |
| Associated fuse rating | 125 A aM at <= 440 V 200 A gG at <= 440 V |
| Average impedance | 0.37 mOhm - Ith 200 A 50 Hz |
| [Ui] rated insulation voltage | 1000 V conforming to IEC 60947-4-1 1500 V conforming to VDE 0110 group C |
| Power dissipation per pole | 15 W AC-1 5 W AC-3 |
| Overvoltage category | III |
| power pole contact composition | 3 NO |
| Motor power kW | 55 kW at 380...400 V AC 50/60 Hz (AC-3) 59 kW at 415 V AC 50/60 Hz (AC-3) 59 kW at 440 V AC 50/60 Hz (AC-3) 75 kW at 500 V AC 50/60 Hz (AC-3) 80 kW at 660...690 V AC 50/60 Hz (AC-3) 30 kW at 220...230 V AC 50/60 Hz (AC-3) 18.5 kW at 400 V AC 50/60 Hz (AC-4) |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C) Drop-out: 0.2...0.55 Uc 40...400 Hz (at 55 °C) |
| Mechanical durability | 10 Mcycles |
| Inrush power in VA | 770 VA, 40...400 Hz cos phi 0.9 (at 20 °C) |
| Hold-in power consumption in VA | 8.1 VA, 40...400 Hz cos phi 0.9 (at 20 °C) |
| Maximum operating rate | 2400 cyc/h 55 °C |
| Operating time | 35 ms closing (at Uc) 130 ms opening (at Uc) |
| Connections - terminals | Power circuit: bar 2 cable(s) - busbar cross section: 20 x 3 mm Power circuit: lugs-ring terminals 1 cable(s) 95 mm² Power circuit: connector 1 cable(s) 95 mm² Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end Power circuit: bolted connection |
| Tightening torque | Power circuit: 10 N.m Control circuit: 1.2 N.m |
| Mounting support | Plate |
| Heat dissipation | 5.9…7.2 W |
| Standards | IEC 60947-4-1 IEC 60947-1 EN 60947-4-1 EN 60947-1 JIS C8201-4-1 |
| Product certifications | RINA BV RMRoS CB LROS (Lloyds register of shipping) DNV UL CCC ABS UKCA |
| Compatibility code | LC1F |
| Control circuit type | AC at 40...400 Hz |
| IP degree of protection | IP2X front face with shrouds conforming to IEC 60529 IP2X front face with shrouds conforming to VDE 0106 |
|---|---|
| Protective treatment | TH |
| Ambient air temperature for operation | -40…60 °C |
| Ambient air temperature for storage | -60…80 °C |
| Permissible ambient air temperature around the device | 60…70 °C at Uc |
| Height | 162 mm |
| Width | 163.3 mm |
| Depth | 171 mm |
| Operating altitude | 3000 m without derating |
| Net weight | 3.43 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 18.500 cm |
| Package 1 Width | 20.000 cm |
| Package 1 Length | 22.500 cm |
| Package 1 Weight | 3.964 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 81.952 kg |
| Warranty | 18 months |
|---|
