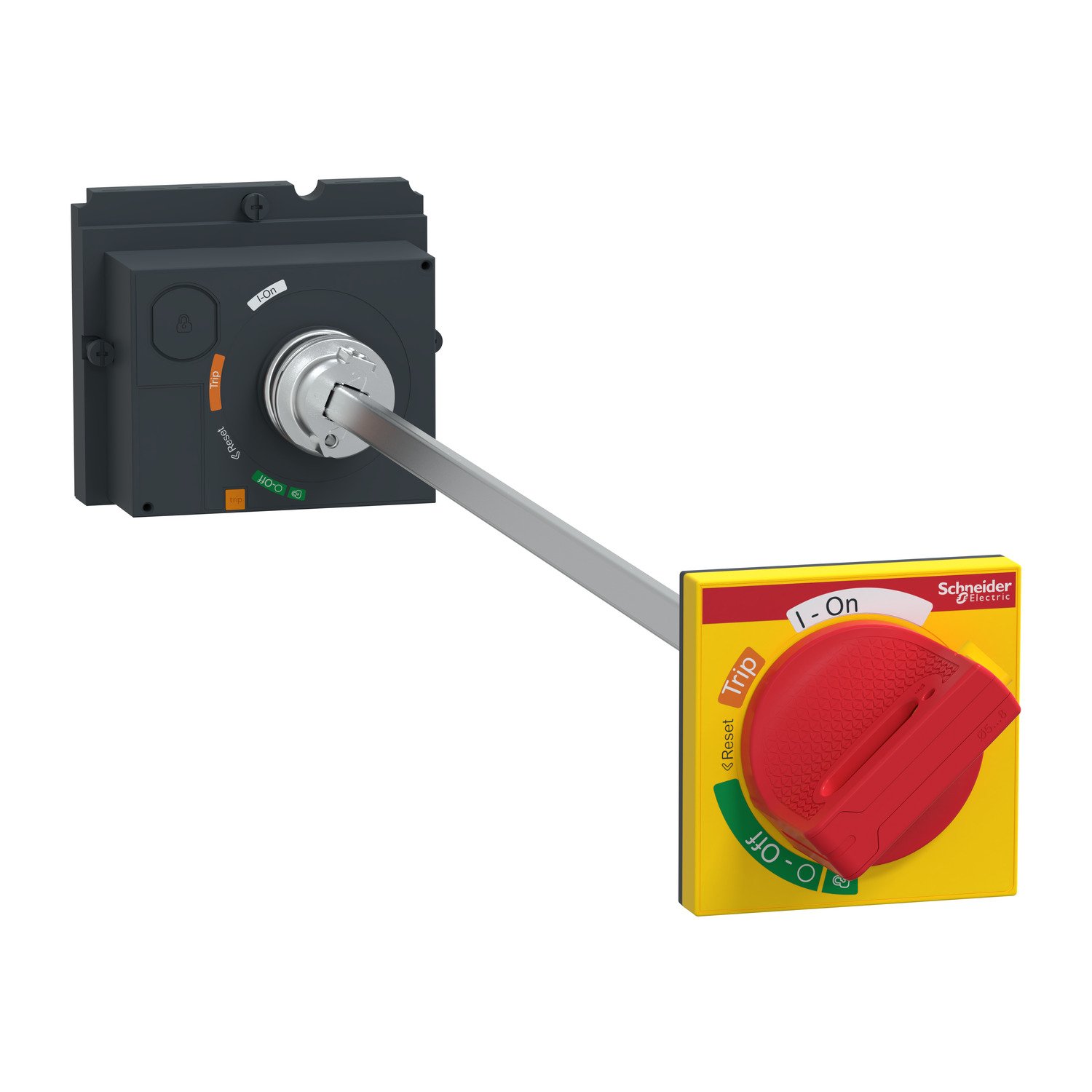

Schneider LV429340T | extended rotary handle, ComPacT NSX 100/160/250, red handle on yellow front, shaft length 185 to 600 mm, IP55

Technical Specifications Schneider LV429340T

1. Compatibility: The LV429340T rotary handle is compatible with ComPacT NSX 100, 160, and 250 circuit breakers, which are part of Schneider’s ComPacT NSX series of modular circuit breakers designed for a wide range of electrical distribution and protection applications.

2. Handle Design: The handle features a red color on the front of the unit, while the background is yellow. This color combination provides high visibility and is easy to identify, ensuring that the handle is clearly distinguishable from other components in the electrical system.

3. Shaft Length: The rotary handle is adjustable, with a shaft length range of 185 mm to 600 mm. This flexibility allows it to be used in various installation environments, making it suitable for panels with varying depths or configurations.

4. Ingress Protection: The IP55 rating ensures that the rotary handle is resistant to both dust and water ingress. This makes it ideal for use in industrial environments where exposure to dust, moisture, or harsh weather conditions is a concern. The handle is well-suited for applications in demanding conditions where equipment protection is critical.

5. Manual Operation: The rotary handle is designed for manual operation, allowing users to operate the ComPacT NSX circuit breakers even when there is no power available. This is essential for situations such as maintenance or emergency shutdowns, where circuit breakers need to be manually switched.

6. Mounting and Installation: The handle is designed for easy installation and can be mounted directly onto the ComPacT NSX circuit breakers, making it a simple and effective way to provide manual operation for these breakers.

7. Durability: The rotary handle is built for durability, designed to withstand the rigors of industrial and commercial environments. Its robust construction ensures that it remains functional and reliable over a long service life.

Features:

1. Clear Visual Indicators: The red handle on a yellow front provides a high-contrast, clear visual indicator, making it easy to locate and operate in low-light or complex environments.

2. Adjustable Shaft Length: With a shaft length range of 185 to 600 mm, the handle is highly versatile, allowing it to be used in various applications with different panel depths and configurations.

3. IP55 Rating: The IP55 rating ensures that the rotary handle is dust-tight and water-resistant, providing reliable operation even in harsh environmental conditions. It is ideal for outdoor or industrial applications where protection from water and dust is required.

4. Manual Operation: The handle allows for manual operation of the ComPacT NSX circuit breakers, ensuring that users can switch the breakers on or off even in the event of a power failure or when remote control is not available.

5. Ease of Installation: The rotary handle is designed for quick and simple installation on ComPacT NSX circuit breakers, making it an easy add-on for existing systems or new installations.

6. Long Service Life: Built for industrial durability, this handle is designed to withstand the demands of continuous operation, ensuring reliable performance throughout its lifespan.

Applications:

The Schneider LV429340T extended rotary handle is ideal for a range of applications, including:

• Industrial Electrical Panels: Used for manual operation of circuit breakers in electrical panels where manual control is required, especially in emergency situations or when power is unavailable.

• Commercial Installations: Suitable for use in commercial settings where reliable circuit breaker operation is needed, especially in environments requiring protection from dust and water.

• Outdoor Applications: With its IP55 rating, it is well-suited for outdoor environments where the handle may be exposed to weather conditions such as rain or dust.

• Maintenance and Emergency Shutdown: The rotary handle is ideal for maintenance and emergency shutdown situations, providing operators with the ability to manually control the circuit breaker when remote control or power is not available
