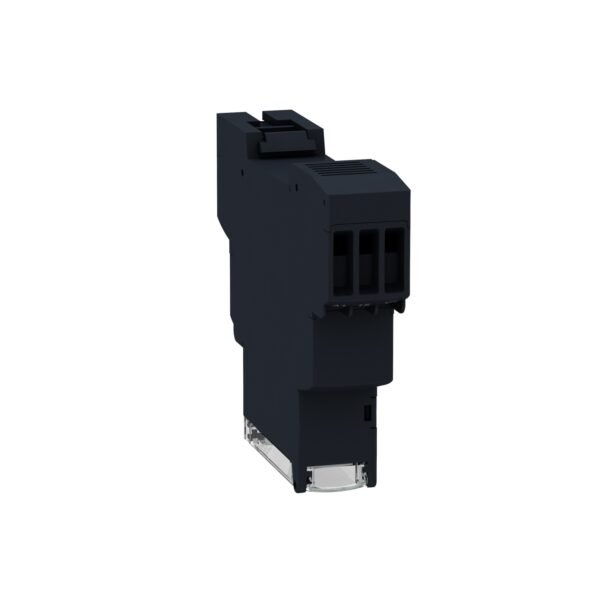

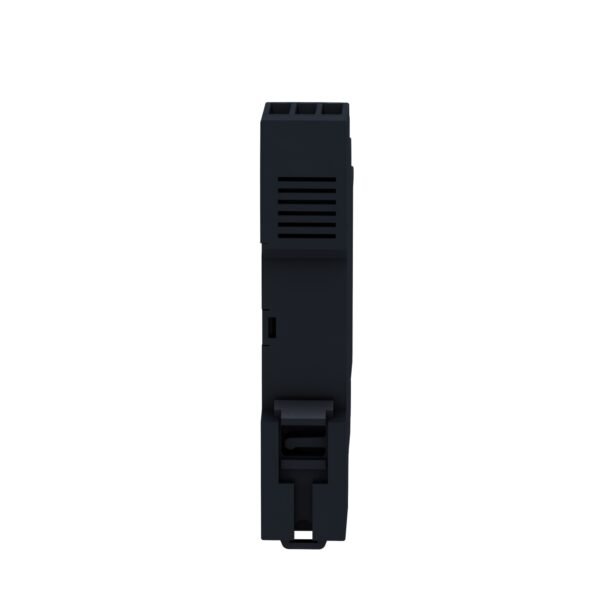

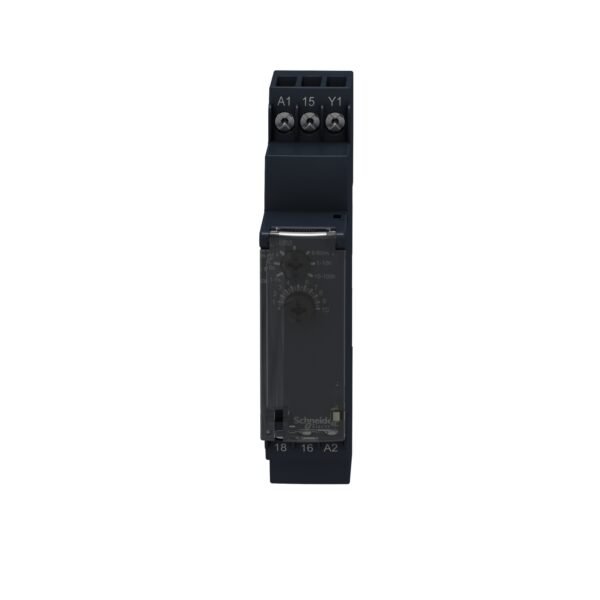

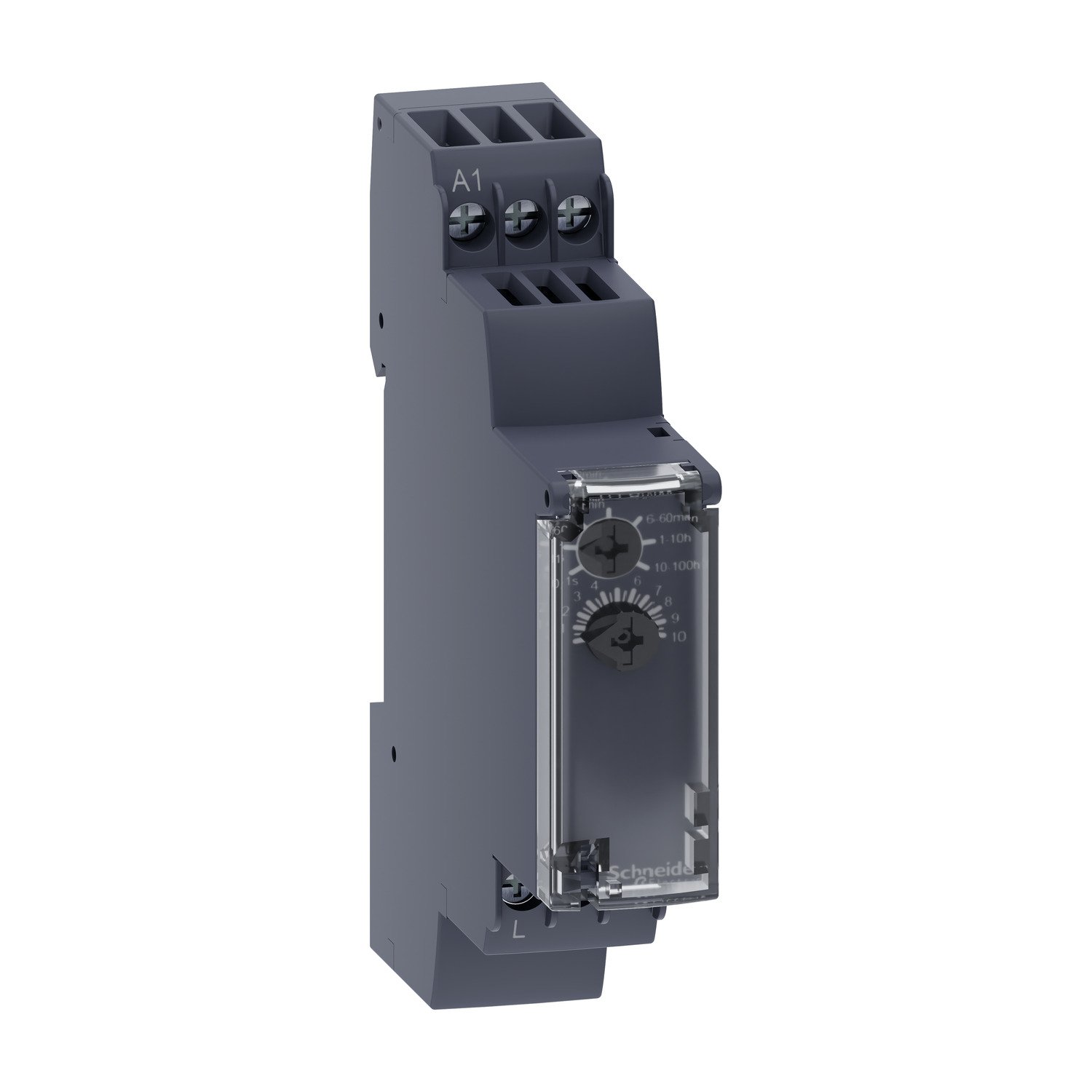

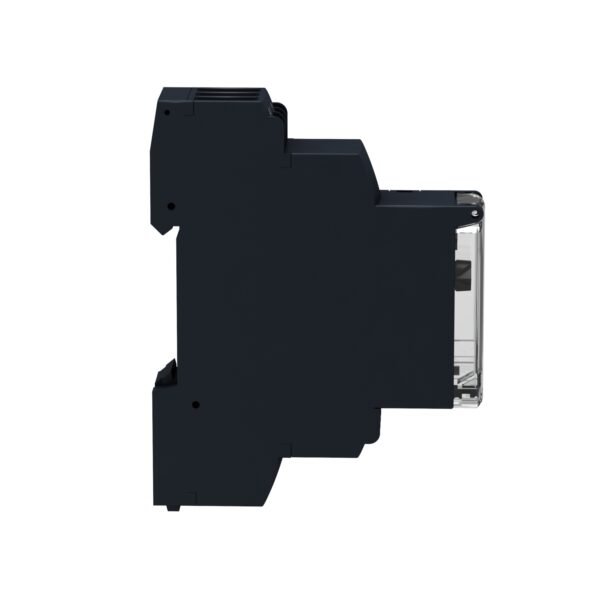

Schneider RE17LAMW On-Delay Timing Relay

The Schneider RE17LAMW is a reliable and versatile on-delay timing relay equipped with a solid-state output for precise timing control in various applications. Here are the key features and specifications of the RE17LAMW:

• Timing Range: The relay offers an adjustable on-delay timing range from 1 second to 100 hours, allowing for precise control over delayed switching or timing sequences.
• Voltage Compatibility: It is designed to operate within a wide voltage range of 24 to 240 volts AC/DC, making it compatible with different electrical systems and applications.
• Solid-State Output: The solid-state output provides reliable and consistent switching without mechanical contacts, offering improved durability and performance.
• Modular Design: The RE17LAMW is designed for easy installation and integration into control panels or enclosures using DIN rail mounting, ensuring a space-efficient and secure setup.
• LED Indicator: Equipped with LED status indicators for power and relay operation, providing visual feedback on the relay’s status and timing functions.
• Versatile Applications: Suitable for various applications requiring on-delay timing control, such as motor starting delays, equipment sequencing, and process control in industrial automation.
• Reliable Performance: Schneider Electric’s reputation for quality ensures reliable and accurate timing operations, enhancing system performance and efficiency.

Applications:

• Industrial Automation: Used in machinery and equipment for delayed switching and timing functions related to production processes and automation sequences.
• HVAC Systems: Applied in heating, ventilation, and air conditioning systems for delayed control of fans, compressors, and other components.
• Process Control: Utilized in process industries for timed control of valves, pumps, and actuators based on specific time delays.
• Lighting Control: Suitable for timed switching of lights, especially in applications requiring delayed lighting or shutdown sequences.
• Power Management: Integrated into power distribution systems for delayed switching of circuits and equipment to manage power consumption and load sequencing.

Benefits:

1. Precise On-Delay Timing: Offers adjustable timing from seconds to hours for precise control over delayed operations.
2. Wide Voltage Range: Compatible with a wide range of voltages, enhancing its versatility in different electrical systems.
3. Solid-State Output: Provides reliable switching without mechanical wear, improving durability and reducing maintenance requirements.
4. Easy Installation: Modular design and DIN rail mounting simplify installation and maintenance, reducing downtime.
5. Visual Feedback: LED indicators provide clear status indication, aiding in monitoring and troubleshooting.
