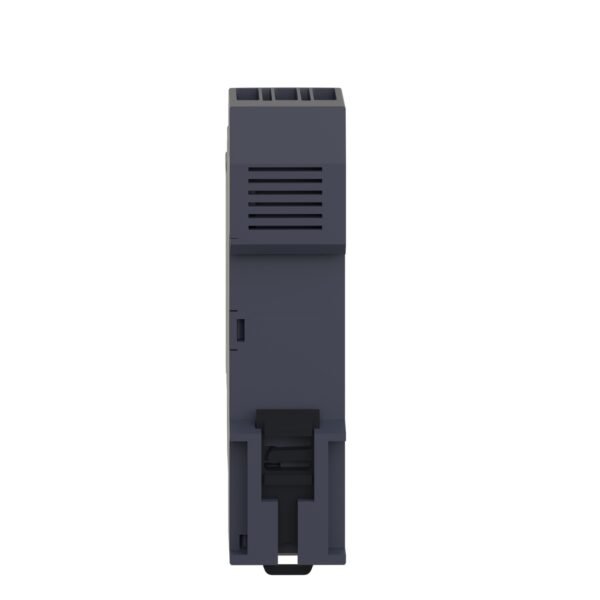

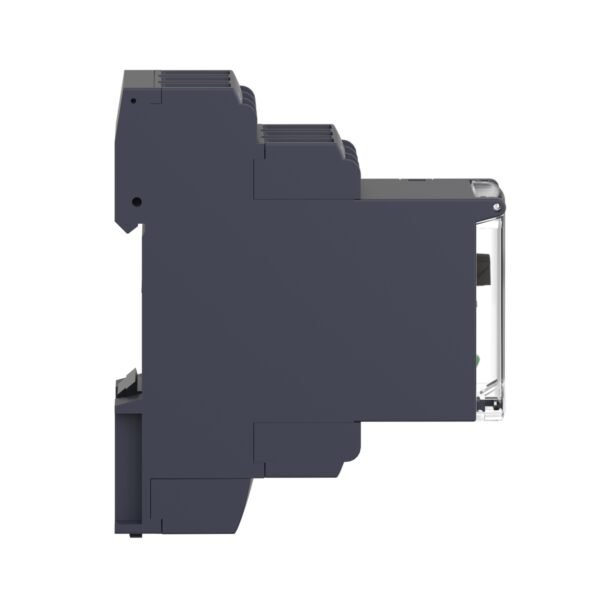

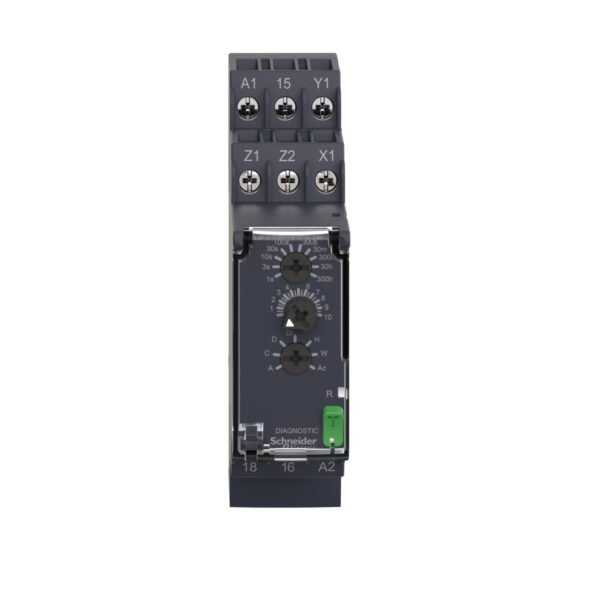

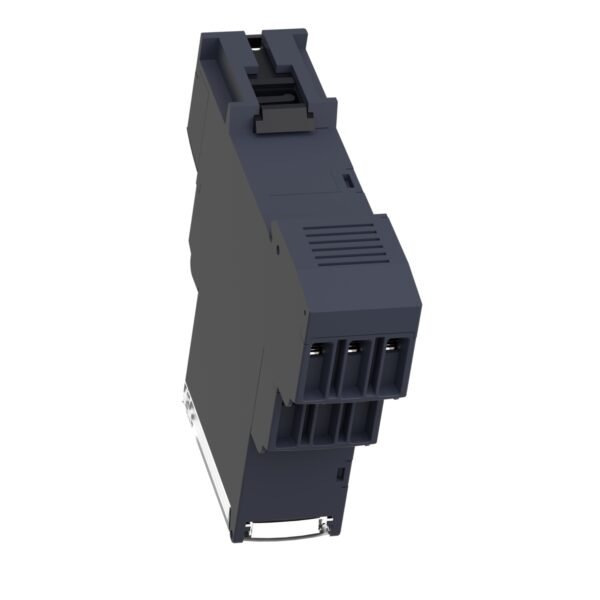

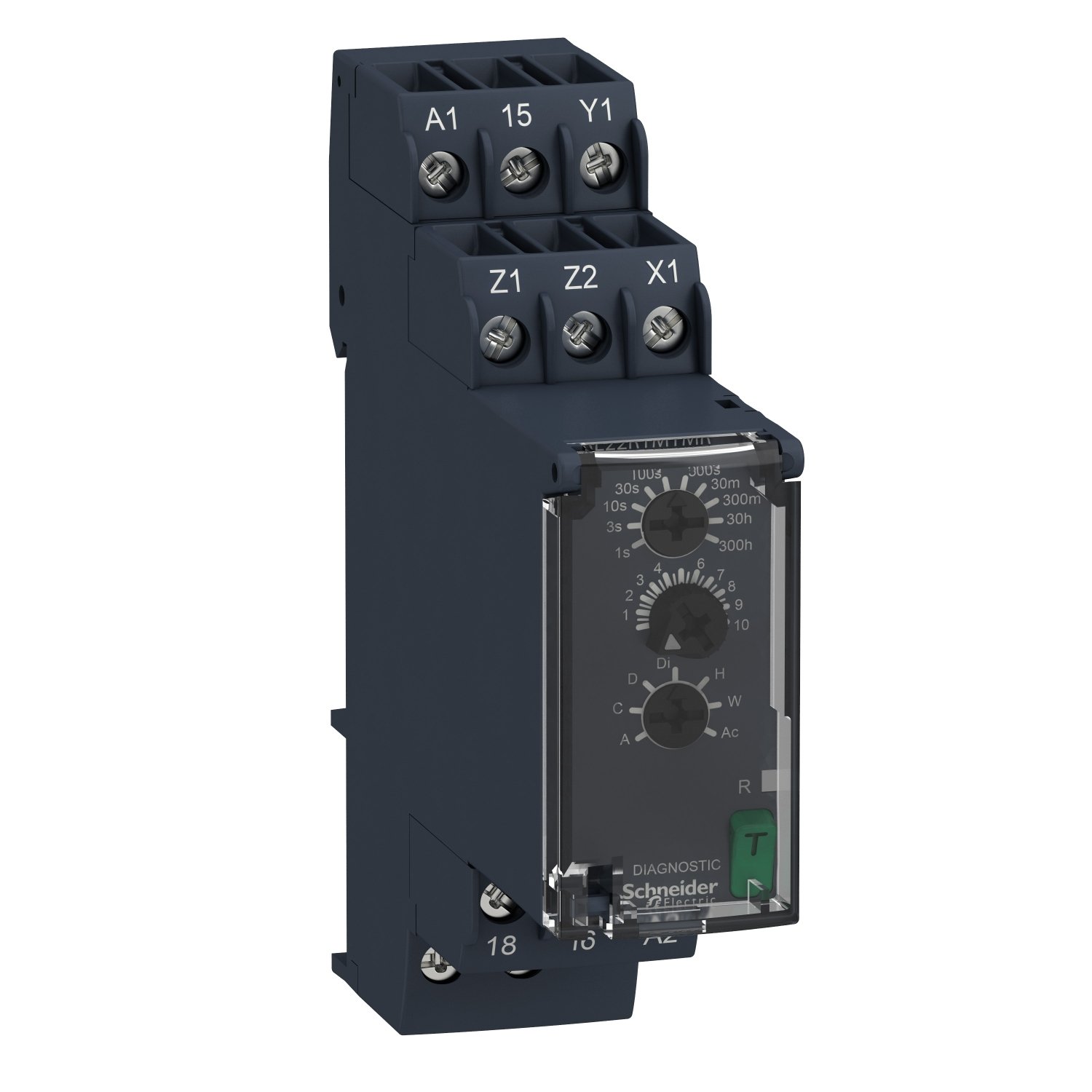

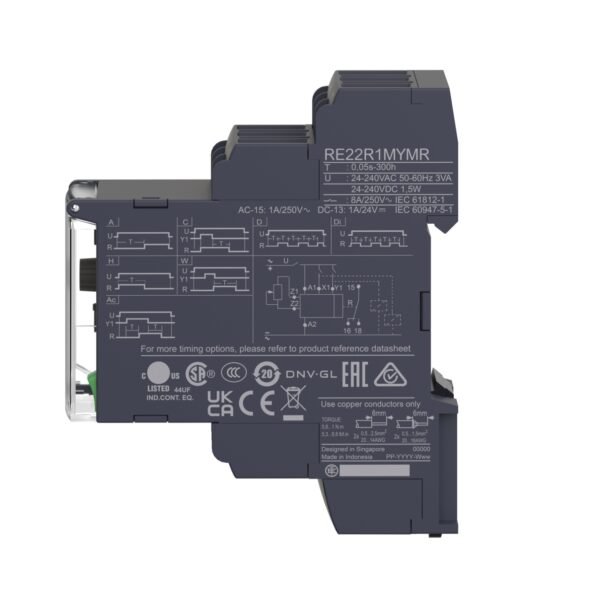

Schneider RE22R1MYMR | Modular timing relay, 8 A, 0.05 s…300 h, 1 CO, multi-function, 24…240 V AC/DC
Original price was: EGP 54,211.00.EGP 31,443.00Current price is: EGP 31,443.00.
Description
Schneider RE22R1MYMR | Modular timing relay, 8 A, 0.05 s…300 h, 1 CO, multi-function, 24…240 V AC/DC
Schneider RE22R1MYMR | Modular Timing Relay: Enhancing Industrial Automation
Introduction: The Schneider RE22R1MYMR is a modular timing relay designed to enhance industrial automation processes. With its versatile functionality and reliable performance, it has become an essential component in various industrial applications.
Applications: This timing relay finds applications in diverse industrial settings, including manufacturing plants, automation systems, control panels, and more. Its flexibility makes it suitable for a wide range of timing control tasks.
Features:
- Modular Design: The modular design allows for easy integration into existing systems.
- 8 A Rating: With an 8 A capacity, it can handle moderate to heavy loads.
- Wide Time Range: From 0.05 seconds to 300 hours, it offers precise timing control.
- Multi-Function: The relay provides multiple timing functions for enhanced versatility.
- Voltage Compatibility: Works with a range of voltages from 24V to 240V AC/DC.
Specifications: The technical specifications of the Schneider RE22R1MYMR include:
- Contact Configuration: 1 CO (1 Normally Open Contact)
- Voltage Range: 24V to 240V AC/DC
- Timing Range: 0.05 seconds to 300 hours
- Current Rating: 8 A
- Functions: Multi-function timing relay
Installation: Installing the Schneider RE22R1MYMR is straightforward, making it accessible even for non-specialists. It comes with clear instructions and mounting options for easy setup.
Functionality: The multi-functionality of this relay allows users to choose from various timing modes such as delay on, delay off, pulse generation, and more. This versatility caters to different operational requirements.
Performance: In terms of performance, the Schneider RE22R1MYMR excels in accuracy and reliability. Its precise timing control ensures synchronized operations within industrial systems, contributing to efficient workflows.
Comparison: When compared to similar products in the market, the Schneider RE22R1MYMR stands out due to its wide timing range, voltage compatibility, and multi-functionality, making it a preferred choice for industrial applications.
Benefits:
- Enhanced Control: Offers precise timing control for industrial processes.
- Versatility: Suitable for a wide range of timing applications.
- Reliability: Ensures consistent performance even in demanding environments.
- Easy Integration: Modular design facilitates seamless integration into existing setups.
Maintenance: To maintain optimal performance, regular checks and maintenance are recommended. This includes ensuring proper voltage supply, checking for any loose connections, and following manufacturer guidelines.
Conclusion: In conclusion, the Schneider RE22R1MYMR modular timing relay is a valuable asset for industrial automation, providing reliable timing control and enhanced functionality to streamline operations.
FAQs:
- What is the voltage range supported by the Schneider RE22R1MYMR?
- The relay supports a voltage range of 24V to 240V AC/DC, making it versatile for various applications.
- Can the timing range be adjusted on this relay?
- Yes, the timing range can be adjusted from 0.05 seconds to 300 hours, offering precise control over timing functions.
- Is the installation of the Schneider RE22R1MYMR complicated?
- No, the relay comes with clear installation instructions and mounting options for easy setup.
- What are some typical industrial uses of this timing relay?
- Industrial uses include controlling motor operations, lighting systems, sequential processes, and more.
- How often should maintenance checks be performed on the Schneider RE22R1MYMR?
- Regular maintenance checks should be conducted according to the manufacturer’s recommendations, typically at scheduled intervals to ensure optimal performance.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| range of product | Harmony Timer Relays |
|---|---|
| Discrete output type | Relay |
| product or component type | Modular timing relay |
| Device short name | RE22 |
| Nominal output current | 8 A |
| Contacts type and composition | 1 C/O timed contact, cadmium free |
|---|---|
| Time delay type | Power on-delay Off-delay On-delay and off-delay Symmetrical flashing Interval |
| Time delay range | 30...300 s 10...100 s 3...30 s 30...300 min 3...30 min 0.3...3 s 0.05...1 s 30...300 h 1...10 s 3...30 h |
| Control type | Rotary knob Diagnostic button Potentiometer external |
| [Us] rated supply voltage | 24...240 V AC/DC 50/60 Hz |
| Release input voltage | <= 2.4 V |
| Voltage range | 0.85...1.1 Us |
| Supply frequency | 50...60 Hz +/- 5 % |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end |
| Tightening torque | 0.6…1 N.m conforming to IEC 60947-1 |
| Housing material | Self-extinguishing |
| Repeat accuracy | +/- 0.5 % conforming to IEC 61812-1 |
| Temperature drift | +/- 0.05 %/°C |
| Voltage drift | +/- 0.2 %/V |
| Setting accuracy of time delay | +/- 10 % of full scale at 25 °C conforming to IEC 61812-1 |
| Time delay type | Power on-delay - A- Power on-delay relay On-delay and off-delay - Ac- On-delay and off-delay relay w/ control signal Power on-delay - At- Power on-delay relay w/ pause/summation (X1) Power on-delay - Aw- Power on-delay relay w/ retrigger/restart On-delay and off-delay - Act- On-delay and off-delay relay w/ control signal and pause/summation Off-delay - C- Off-delay relay w/ control signal Off-delay - Ct- Off-delay relay w/ control signal and pause/summation Symmetrical flashing - D- Symmetrical flashing relay (starting pulse-off) Symmetrical flashing - Dt- Symmetrical flashing relay (starting pulse-off) w/ pause/summation (X1) Symmetrical flashing - Dw- Symmetrical flashing relay (starting pulse-off) w/ retrigger/restart Symmetrical flashing - Di- Symmetrical flashing relay (starting pulse-on) Symmetrical flashing - Dit- Symmetrical flashing relay (starting pulse-on) w/ pause/summation (X1) Symmetrical flashing - Diw- Symmetrical flashing relay (starting pulse-on) w/ retrigger/restart Interval - H- Interval relay Interval - Ht- Interval relay w/ pause/summation (X1) Interval - Hw- Interval relay w/ retrigger/restart Interval - W- Interval relay w/ control signal off Interval - Wt- Interval relay w/ control signal off and pause/summation |
| Control signal pulse width | 100 ms with load in parallel 30 ms |
| Insulation resistance | 100 MOhm at 500 V DC conforming to IEC 60664-1 |
| Recovery time | 120 ms on de-energisation |
| Immunity to microbreaks | 10 ms |
| Power consumption in VA | 3 VA at 240 V AC |
| Power consumption in W | 1.5 W at 240 V DC |
| Switching capacity in VA | 2000 VA |
| Minimum switching current | 10 mA at 5 V DC |
| Maximum switching current | 8 A |
| Maximum switching voltage | 250 V AC |
| Electrical durability | 100000 cycles, 8 A at 250 V, AC-1 100000 cycles, 2 A at 24 V, DC-1 |
| Mechanical durability | 10000000 cycles |
| Rated impulse withstand voltage | 5 kV for 1.2…50 µs conforming to IEC 60664-1 |
| Power on delay | 100 ms |
| Creepage distance | 4 kV/3 conforming to IEC 60664-1 |
| Overvoltage category | III conforming to IEC 60664-1 |
| Safety reliability data | MTTFd = 205.4 years B10d = 190000 |
| Mounting position | Any position |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
| Status LED | LED backlight green (steady) for dial pointer indication LED yellow (steady) for output relay energised LED yellow (fast flashing) for timing in progress and output relay de-energised LED yellow (slow flashing) for timing in progress and output relay energised |
| Function available | A- Power on-delay relay-1 C/O Ac- On-delay and off-delay relay w/ control signal-1 C/O At- Power on-delay relay w/ pause/summation (X1)-1 C/O Aw- Power on-delay relay w/ retrigger/restart-1 C/O Act- On-delay and off-delay relay w/ control signal and pause/summation-1 C/O C- Off-delay relay w/ control signal-1 C/O Ct- Off-delay relay w/ control signal and pause/summation-1 C/O D- Symmetrical flashing relay (starting pulse-off)-1 C/O Dt- Symmetrical flashing relay (starting pulse-off) w/ pause/summation (X1)-1 C/O Dw- Symmetrical flashing relay (starting pulse-off) w/ retrigger/restart-1 C/O Di- Symmetrical flashing relay (starting pulse-on)-1 C/O Dit- Symmetrical flashing relay (starting pulse-on) w/ pause/summation (X1)-1 C/O Diw- Symmetrical flashing relay (starting pulse-on) w/ retrigger/restart-1 C/O H- Interval relay-1 C/O Ht- Interval relay w/ pause/summation (X1)-1 C/O Hw- Interval relay w/ retrigger/restart-1 C/O W- Interval relay w/ control signal off-1 C/O Wt- Interval relay w/ control signal off and pause/summation-1 C/O |
| Width | 22.5 mm |
| net weight | 0.1 kg |
| Control type | With test button |
| Number of functions | 18 |
| Dielectric strength | 2.5 kV for 1 mA/1 minute at 50 Hz between relay output and power supply with basic insulation conforming to IEC 61812-1 |
|---|---|
| Standards | IEC 61812-1 UL 508 |
| Directives | 2004/108/EC - electromagnetic compatibility 2006/95/EC - low voltage directive |
| Product certifications | RCM GL EAC CE CSA CCC UL |
| Ambient air temperature for operation | -20…60 °C |
| Ambient air temperature for storage | -40…70 °C |
| IP degree of protection | IP40 housing: conforming to IEC 60529 IP50 front face: conforming to IEC 60529 IP20 terminals: conforming to IEC 60529 |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Vibration resistance | 20 m/s² (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn not operating for 11 ms conforming to IEC 60068-2-27 5 gn in operation for 11 ms conforming to IEC 60068-2-27 |
| Relative humidity | 95 % at 25…55 °C |
| Electromagnetic compatibility | Fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4 Surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5 Surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5 Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3 Conducted RF disturbances - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6 Fast transient bursts - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4 Immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11 Immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.900 cm |
| Package 1 Width | 8.600 cm |
| Package 1 Length | 10.000 cm |
| Package 1 Weight | 101.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.500 kg |
