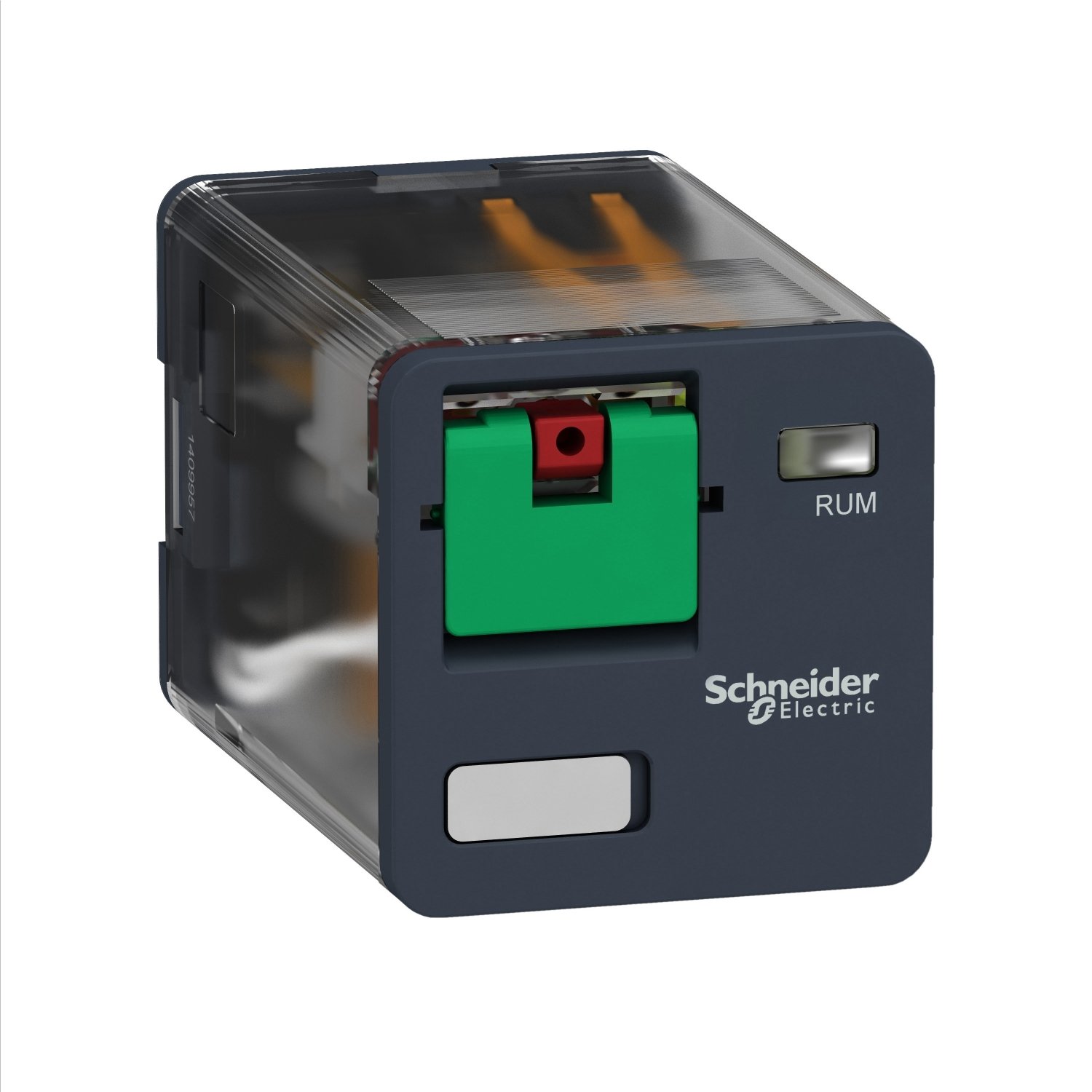

Schneider RUMC31F7 | Universal plug-in relay, 10 A, 3 CO, 120 V AC
Schneider RUMC31F7 | Universal plug-in relay, 10 A, 3 CO, 120 V AC
Original price was: EGP 71,843.00.EGP 39,514.00Current price is: EGP 39,514.00.
Description
Schneider RUMC31F7 | Universal plug-in relay, 10 A, 3 CO, 120 V AC
Technical Specifications
- Model: RUMC31F7
- Series: Harmony RUM
- Type: Universal Plug-In Relay
- Number of Contacts: 3 Changeover (3 C/O)
- Coil Voltage: 120V AC
- Current Rating: 10A
- Contact Type: Silver alloy (AgNi) for high-quality electrical conductivity
- Electrical Durability: High switching capacity for industrial applications
- Mounting Type: Quick plug-in installation with compatible relay socket
- Standards & Certifications: CE, UL, IEC, RoHS compliant
Key Features
1. Reliable Performance and High Efficiency
- Provides reliable performance in a wide range of electrical and industrial applications.
- 10A current rating makes it suitable for various loads.
2. Durable and High-Quality Design
- Built with high-quality materials to ensure long-lasting durability and stable performance.
- Silver alloy contacts (AgNi) ensure high conductivity and reduced wear for extended life.
3. Easy Installation and Compatibility
- The plug-in design allows for quick and easy installation using the appropriate relay socket.
- Fully compatible with Harmony RUM relay sockets, ensuring seamless integration into existing systems.
4. Wide Range of Industrial Applications
- Ideal for use in industrial automation, machine control, power distribution, and HVAC systems.
- Reliable performance in demanding environments ensures efficiency and operational reliability.
Applications
The Schneider RUMC31F7 relay is widely used across various industries and applications, including:
Industrial Automation – Suitable for motor control, PLC interfaces, and robotics.
Electrical Distribution – Used for switching power circuits and control circuits.
Machine Control – Ideal for machinery, production lines, and automated systems.
HVAC Systems – Used for controlling heating, ventilation, and air conditioning equipment.
Building Management Systems – Helps in controlling lighting, security, and other automated functions.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | Harmony Electromechanical Relays |
|---|---|
| Series name | Universal |
| Product or component type | Plug-in relay |
| Device short name | RUM |
| Contacts type and composition | 3 C/O |
| [Uc] control circuit voltage | 120 V AC 50/60 Hz |
| [Ithe] conventional enclosed thermal current | 10 A at -40…55 °C |
| status LED | Without |
| control type | Lockable test button |
| Utilisation coefficient | 20 % |
| Shape of pin | Cylindrical |
|---|---|
| [Ui] rated insulation voltage | 250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL |
| [Uimp] rated impulse withstand voltage | 4 kV (1.2/50 µs) |
| Contacts material | AgNi |
| [Ie] rated operational current | 10 A at 277 V AC conforming to UL 10 A at 30 V DC conforming to UL 10 A at 277 V AC (same polarity) conforming to CSA 10 A at 30 V DC conforming to CSA 5 A at 250 V AC (NC) conforming to IEC 5 A at 28 V DC (NC) conforming to IEC 10 A at 250 V AC (NO) conforming to IEC 10 A at 28 V DC (NO) conforming to IEC |
| Maximum switching voltage | 250 V conforming to IEC |
| Resistive rated load | 10 A at 250 V AC 10 A at 28 V DC |
| Maximum switching capacity | 2500 VA/280 W |
| Minimum switching capacity | 170 mW at 10 mA, 17 V |
| Operating rate | <= 18000 cycles/hour no-load <= 1200 cycles/hour under load |
| Mechanical durability | 5000000 cycles |
| Electrical durability | 100000 cycles for resistive load |
| Average coil consumption in VA | 3 at 60 Hz |
| Drop-out voltage threshold | >= 0.15 Uc AC |
| Operate time | 20 ms at nominal voltage |
| Release time | 20 ms at nominal voltage |
| Average coil resistance | 1700 Ohm at 20 °C +/- 15 % |
| Rated operational voltage limits | 96...132 V AC |
| Protection category | RT I |
| Test levels | Level A group mounting |
| Safety reliability data | B10d = 100000 |
| Operating position | Any position |
| Product weight | 0.086 kg |
| Device presentation | Complete product |
| Dielectric strength | 1500 V AC between contacts with micro disconnection 2500 V AC between coil and contact with reinforced 2000 V AC between poles with basic |
|---|---|
| Product certifications | EAC UL CSA |
| Standards | UL 508 IEC 61810-1 CSA C22.2 No 14 |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
| Vibration resistance | 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation 4 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating |
| IP degree of protection | IP40 |
| Shock resistance | 10 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27 10 gn (duration = 11 ms) for not operating conforming to IEC 60068-2-27 |
| pollution degree | 2 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.500 cm |
| Package 1 Width | 6.900 cm |
| Package 1 Length | 3.600 cm |
| Package 1 Weight | 91.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 4.000 cm |
| Package 2 Width | 14.600 cm |
| Package 2 Length | 20.000 cm |
| Package 2 Weight | 966.000 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 60 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 6.365 kg |
