Schneider RXM4AB1B7 | Miniature plug-in relay, 6 A, 4 CO, 24 V AC

Schneider RXM4AB1B7 | Miniature Plug-in Relay – 6 A, 4 CO, 24 V AC

1. Overview

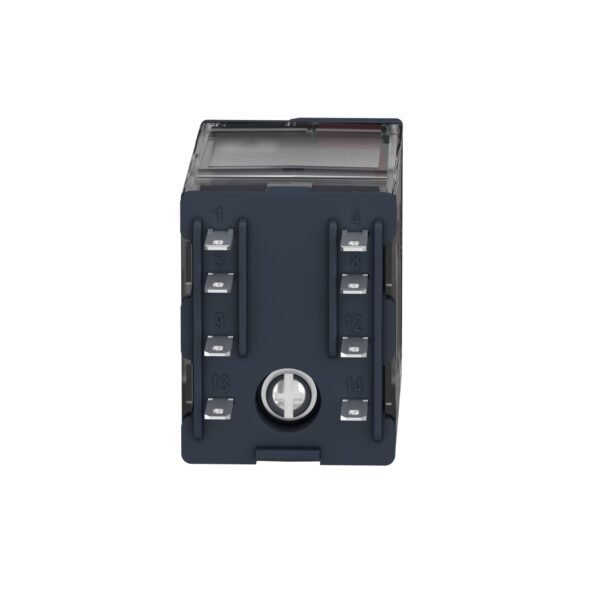

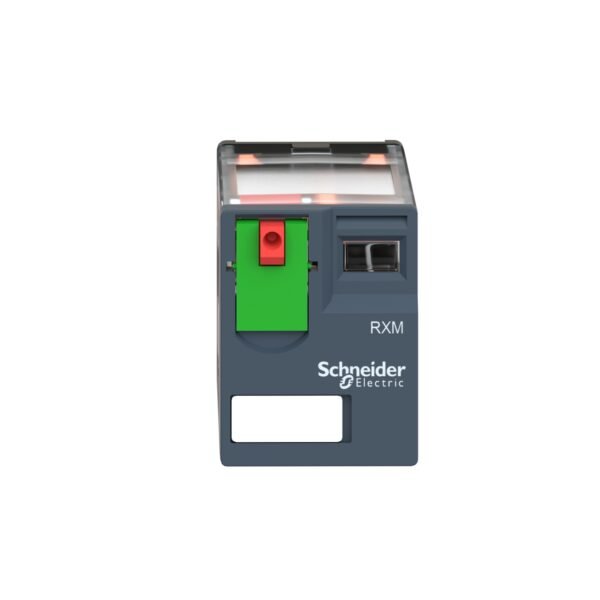

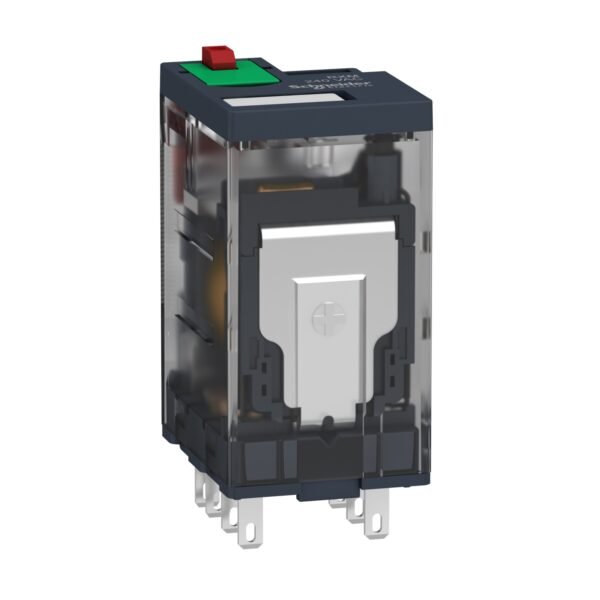

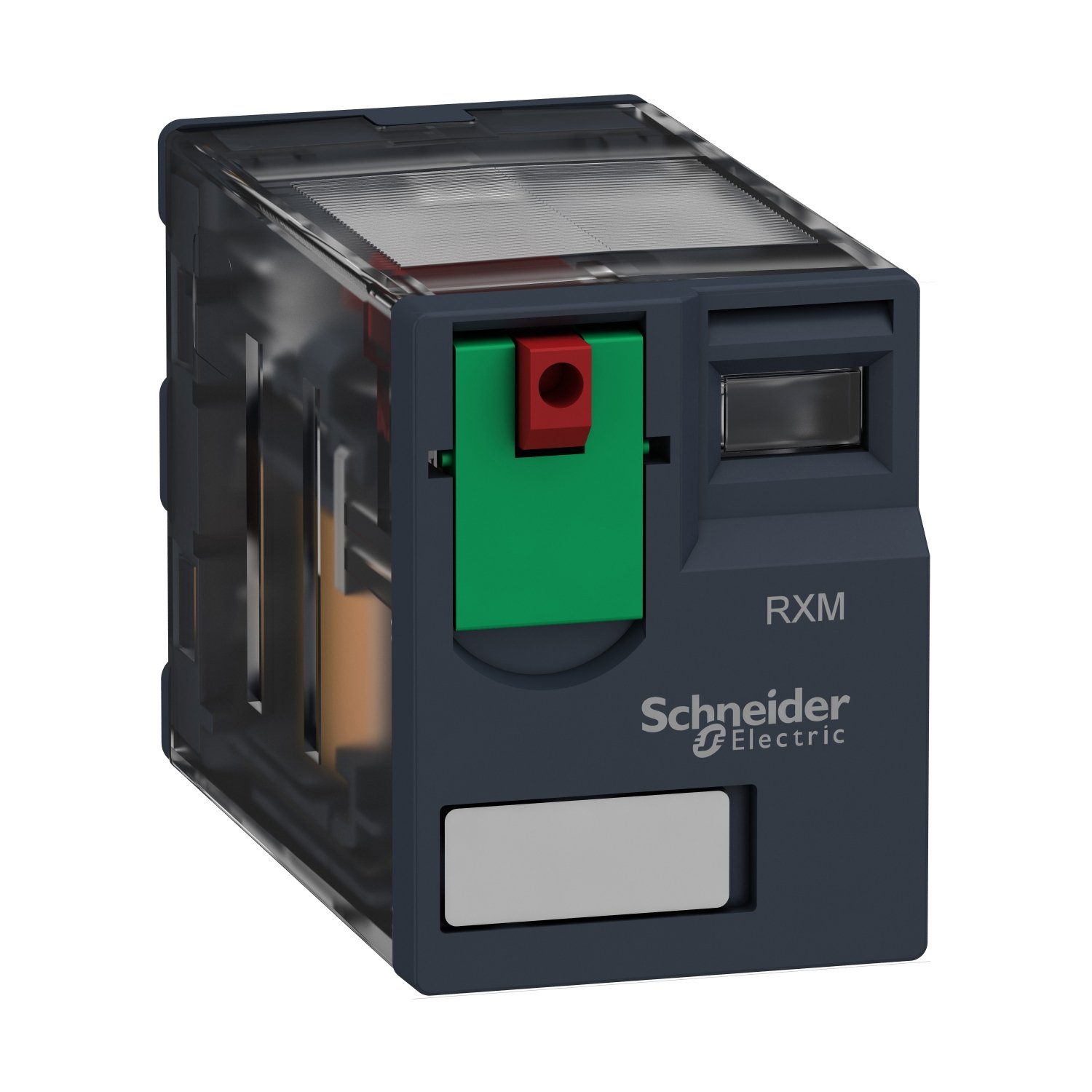

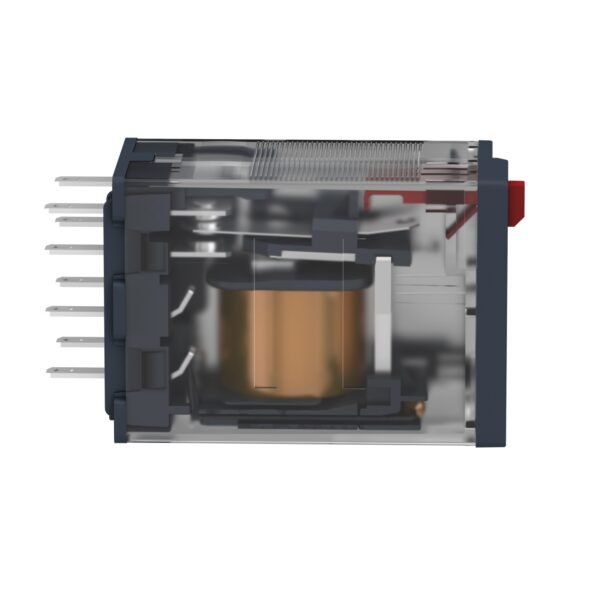

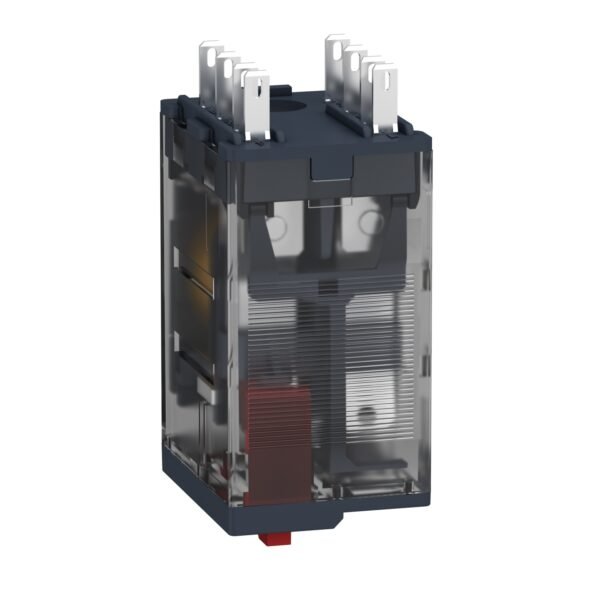

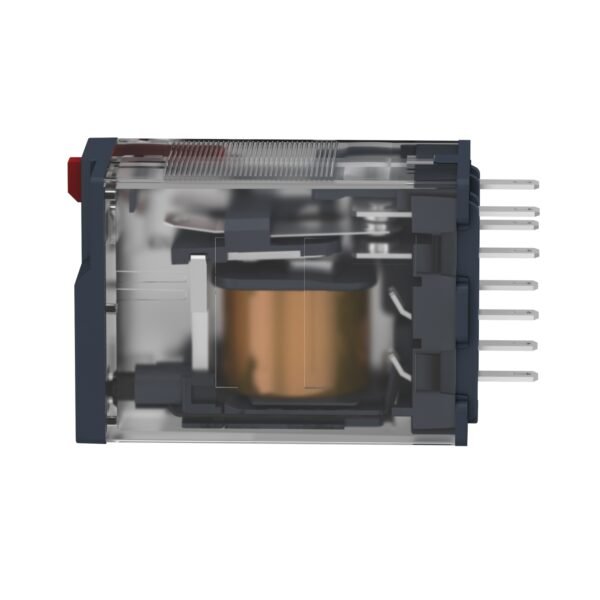

The Schneider RXM4AB1B7 is a miniature plug-in relay from the Harmony RXM series, designed for industrial automation, control panels, and electrical switching applications. It features 4 changeover (CO) contacts, a 6A switching capacity, and operates at 24V AC control voltage.

2. Key Features

• Model: RXM4AB1B7
• Series: Harmony RXM
• Relay Type: Miniature plug-in relay
• Number of Contacts: 4 changeover (4CO)
• Contact Rating: 6A at 250V AC / 30V DC
• Coil Voltage: 24V AC
• Coil Resistance: 385 Ω
• Electrical Durability: 100,000 operations (at full load)
• Mechanical Durability: 10 million operations
• Base Compatibility: Compatible with RXZE2M114M and RXZE2S114M sockets

3. Technical Specifications

• Contact Material: Silver alloy (AgNi)
• Operate Time: ≤ 20 ms
• Release Time: ≤ 20 ms
• Dielectric Strength: 2500V AC between coil and contacts
• Ambient Operating Temperature: -40°C to +70°C
• Mounting Type: Plug-in (DIN rail or panel-mounted using compatible sockets)
• LED Indicator: No (optional models with LED available)

4. Applications

• Industrial Automation & Control Panels
• PLC and Machine Interfaces
• Motor Starters & Contactors
• Lighting & HVAC Control
• Signal Switching & Power Distribution

5. Benefits

• Compact & Versatile: Space-saving design for easy integration
• High Durability: Long electrical and mechanical life
• Reliable Switching: High-performance silver alloy contacts
• Easy Installation: Compatible with plug-in bases and screw terminals
• Wide Application Range: Suitable for industrial and commercial use

6. Conclusion

The Schneider RXM4AB1B7 is a high-performance miniature plug-in relay, ideal for switching and automation in industrial, commercial, and control applications. With its 4 CO contacts, 6A rating, and 24V AC coil voltage, it provides efficient and long-lasting performance in demanding environments.
