Zelio Relays

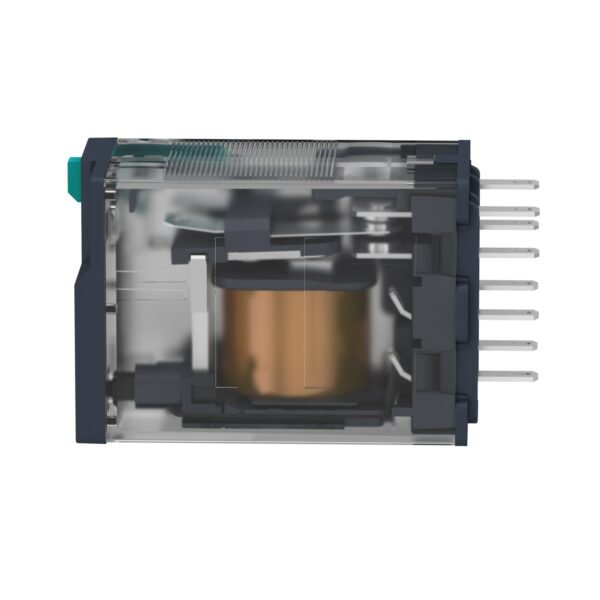

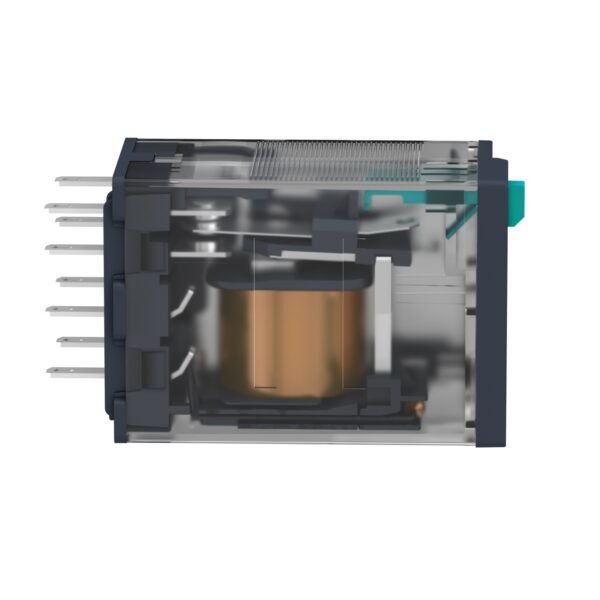

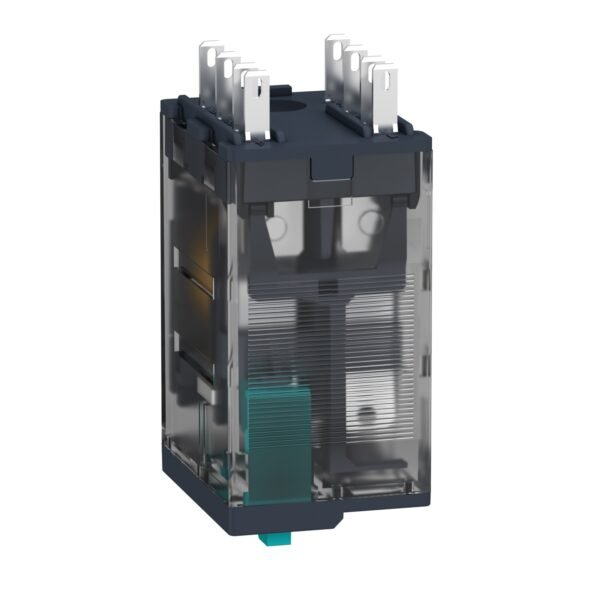

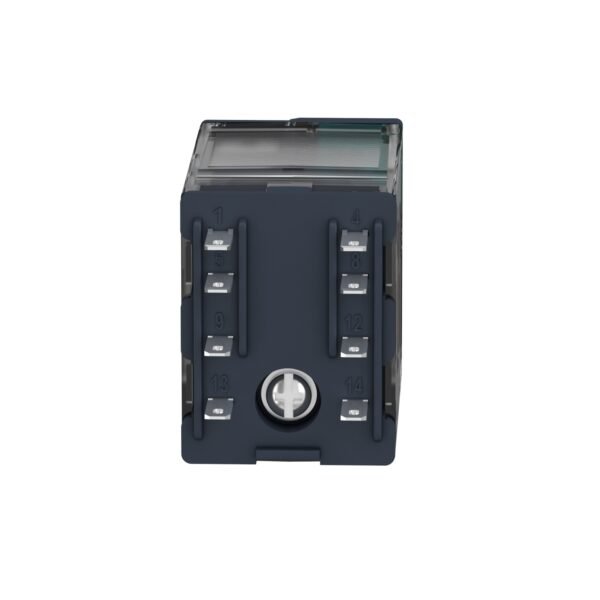

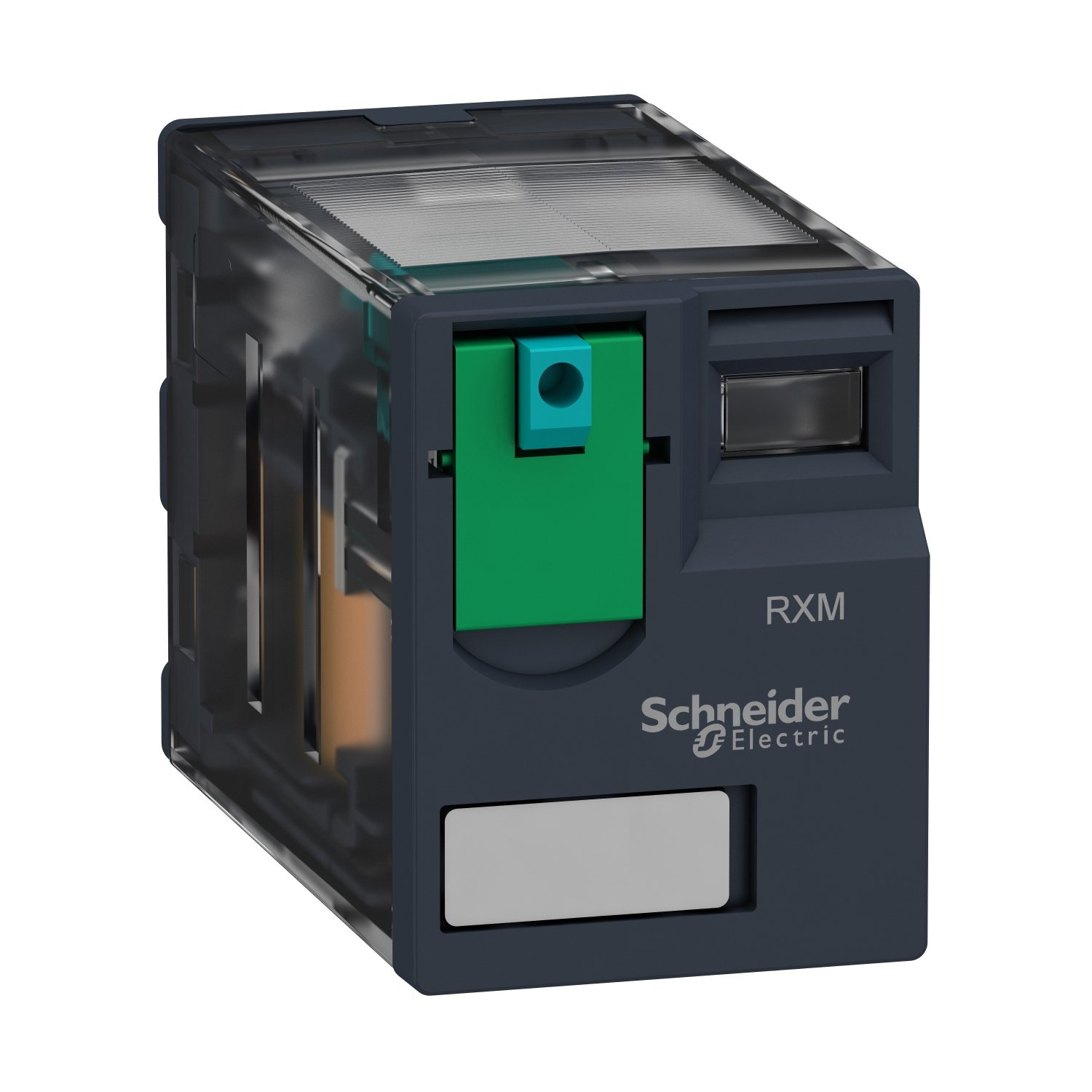

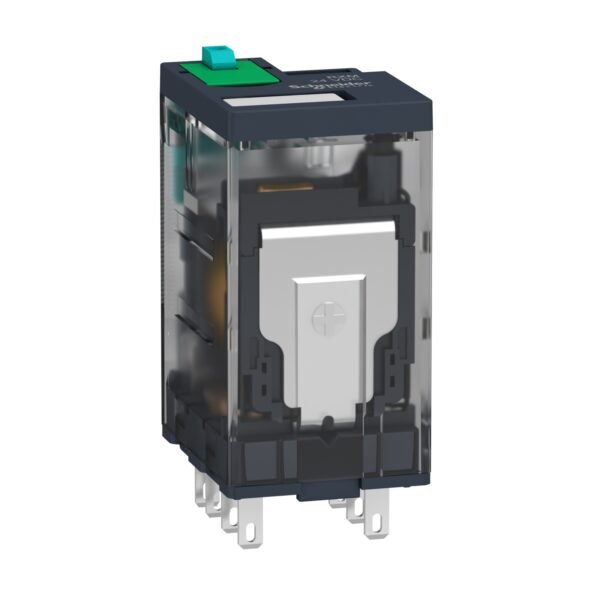

Schneider RXM4AB1FD | Miniature plug-in relay, 6 A, 4 CO, 110 V DC

Compare

Product Code:

RXM4AB1FD

Tags:

110 V DC, 4 CO, 6 A, Miniature plug-in relay

Brand: Schneider Electric

Schneider RXM4AB1FD | Miniature plug-in relay, 6 A, 4 CO, 110 V DC

Name: Schneider RXM4AB1FD | Miniature plug-in relay, 6 A, 4 CO, 110 V DC
Brand: Schneider Electric
SKU: RXM4AB1FD
Availability: OutOfStock

Introduction

In this article, we delve into the features, specifications, and applications of the Schneider RXM4AB1FD miniature plug-in relay, a versatile component in electrical systems.

Overview of RXM4AB1FD Relay

The RXM4AB1FD is a compact, plug-in relay designed for various control applications. It offers 4 CO (changeover) contacts and can handle up to 6 A of current at 110 V DC.

Key Specifications

Type: Miniature Plug-in Relay
Contacts: 4 CO
Current Rating: 6 A
Voltage Rating: 110 V DC
Coil Voltage: Standard coil voltage options available

Features

The relay comes with several noteworthy features:

Compact design for space-saving installations.
High current rating suitable for diverse applications.
Reliable performance and durability.
Easy plug-in installation and maintenance.

Applications

The RXM4AB1FD relay finds use in various industries and applications, including:

Industrial automation
HVAC systems
Lighting control
Motor control
Power distribution

Installation Guide

Installing the RXM4AB1FD relay is straightforward. Follow these steps:

Choose an appropriate mounting location.
Ensure power is off before installation.
Connect the relay according to the wiring diagram.

Wiring Diagrams

Refer to the manufacturer’s manual for detailed wiring diagrams based on your application requirements.

Maintenance Tips

To ensure optimal performance:

Regularly inspect for loose connections.
Clean the relay contacts if necessary.
Replace if signs of wear or damage are present.

Troubleshooting

Common issues and troubleshooting steps:

Issue: Relay fails to switch. Solution: Check for loose connections or coil malfunction.

####### Comparison with Similar Relays Compared to other miniature relays, the RXM4AB1FD stands out due to its robust design, high current capacity, and ease of installation.

Conclusion

The Schneider RXM4AB1FD miniature plug-in relay offers reliability, versatility, and ease of installation, making it a preferred choice for various control applications in industrial and commercial settings.

brands	Schneider Electric

Main
Range of product	Harmony Electromechanical Relays
Series name	Miniature
Product or component type	Plug-in relay
Device short name	RXM
Contacts type and composition	4 C/O
[Uc] control circuit voltage	110 V DC
Status LED	Without
Control type	Lockable test button
Utilisation coefficient	20 %

Complementary
Shape of pin	Flat
[Ui] rated insulation voltage	250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL
[Uimp] rated impulse withstand voltage	2.5 kV during 1.2/50 µs
Contacts material	AgNi
[Ie] rated operational current	3 A at 28 V (DC) NC conforming to IEC 3 A at 250 V (AC) NC conforming to IEC 6 A at 28 V (DC) NO conforming to IEC 6 A at 250 V (AC) NO conforming to IEC 6 A at 277 V (AC) conforming to UL 8 A at 30 V (DC) conforming to UL
Continuous output current	5 A
Maximum switching voltage	250 V conforming to IEC
resistive rated load	6 A at 250 V AC 6 A at 28 V DC
Maximum switching capacity	1500 VA/168 W
Minimum switching capacity	170 mW at 10 mA, 17 V
Operating rate	<= 1200 cycles/hour under load <= 18000 cycles/hour no-load
Mechanical durability	10000000 cycles
Electrical durability	100000 cycles for resistive load
average coil consumption	0.9 W
Drop-out voltage threshold	>= 0.1 Uc
operate time	20 ms
release time	20 ms
average coil resistance	13440 Ohm at 20 °C +/- 10 %
Rated operational voltage limits	88...121 V DC
Safety reliability data	B10d = 100000
Protection category	RT I
Test levels	Level A group mounting
Operating position	Any position
CAD overall height	79 mm
CAD overall depth	78.45 mm
Net weight	0.037 kg
Device presentation	Complete product

Environment
Dielectric strength	1300 V AC between contacts with micro disconnection 2000 V AC between coil and contact with basic insulation 2000 V AC between poles with basic insulation
Product certifications	UL Lloyd's CE CSA GOST IECEE CB Scheme
Standards	IEC 61810-1 CSA C22.2 No 14 UL 508
Ambient air temperature for storage	-40…85 °C
Ambient air temperature for operation	-40…55 °C
Vibration resistance	3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating
IP degree of protection	IP40 conforming to IEC 60529
Shock resistance	10 gn for in operation 30 gn for not operating
Pollution degree	2

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.000 cm
Package 1 Width	2.700 cm
Package 1 Length	4.300 cm
Package 1 Weight	36.000 g
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Height	3.000 cm
Package 2 Width	10.000 cm
Package 2 Length	12.500 cm
Package 2 Weight	392.000 g
Unit Type of Package 3	S02
Number of Units in Package 3	240
Package 3 Height	15.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	9.885 kg

Contractual warranty
Warranty	18 months

Main documents

Datasheet	Download Datasheet
Product datasheet	Download
Catalogue	Download
CAD Files	Download
Environmental disclosure	Download

Datasheet	Download Datasheet
Product datasheet	Download
Catalogue	Download
CAD Files	Download
Environmental disclosure	Download
