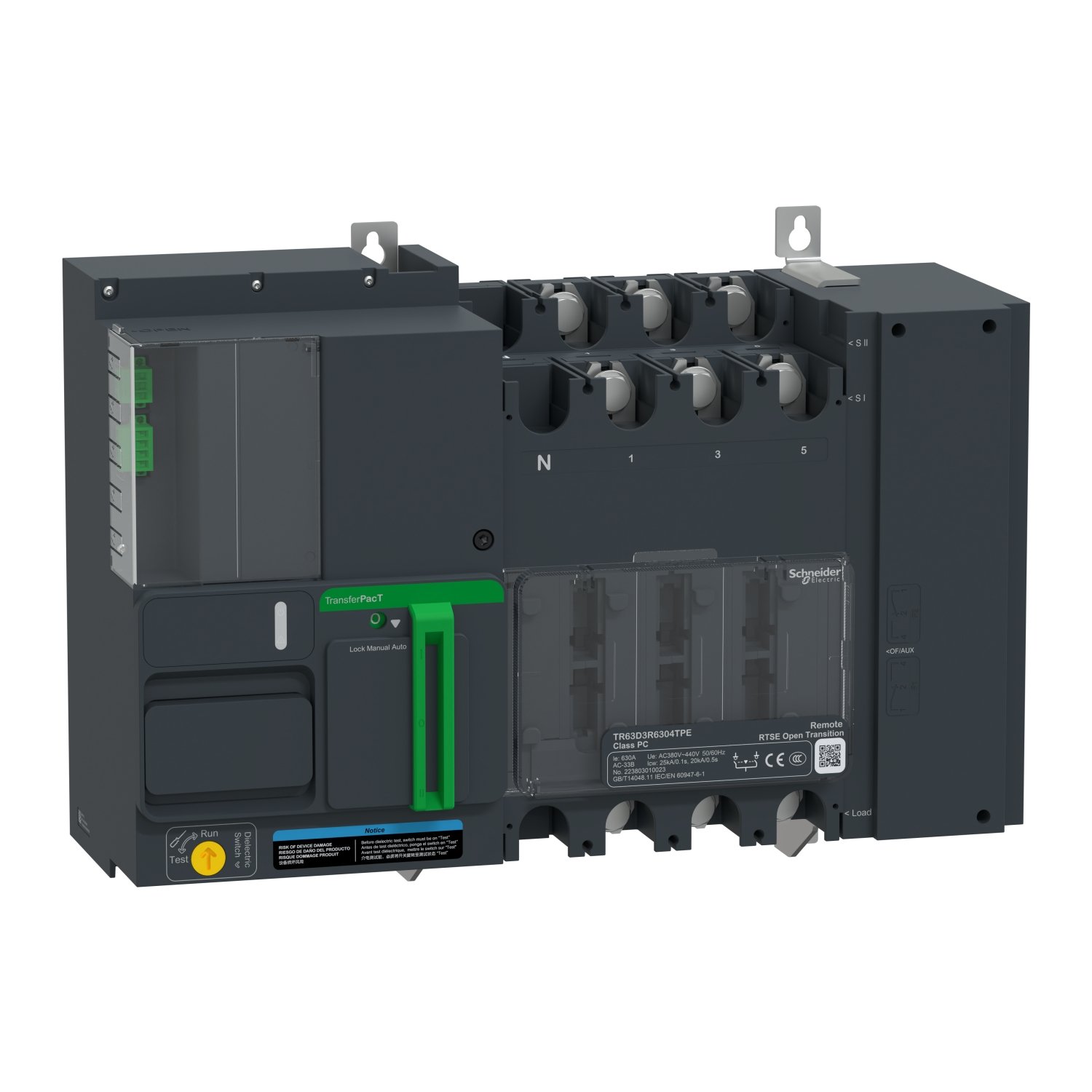

Schneider TR63D3R6304TPE | TransferPacT Remote, 630A, 400V, 3P, Remote, frame 630A

Technical Specifications Schneider TR63D3R6304TPE

• Brand: Schneider Electric

• Model: TR63D3R6304TPE

• Series: TransferPacT Remote

• Rated Current (In): 630 Amps

• Rated Voltage (Ue): 400V AC

• Frequency: 50/60 Hz

• Number of Poles: 3 Poles (3P)

• Frame Size: 630A

• Control Type: Remote Automatic Transfer

• Mounting Style: Panel or Enclosure Mounting

• Switching Technology: Electrically and Mechanically Interlocked

• Standard Compliance: IEC 60947-6-1, IEC 60947-3

• Operating Temperature Range: Typically -5°C to +40°C

• Protection Rating: IP30 to IP54 (depending on housing)

• Communication Compatibility: Modbus, Ethernet (optional modules)

Key Features

1. Maximum Rated Current (630A)
   Offers full utilization of the frame capacity, supporting large electrical loads and ensuring system scalability.

2. Intelligent Remote Control
   Enables advanced remote operation through control systems such as BMS or SCADA. Compatible with energy monitoring and automation platforms.

3. Seamless Source Transfer
   Rapid and reliable transition between power sources, reducing or eliminating downtime during utility failures or switching operations.

4. High Durability & Safety
   Designed for continuous operation under demanding conditions, with built-in protection against overcurrent, short circuits, voltage loss, and phase failure.

5. Compact Design
   Despite its high capacity, the switch is compact in design, optimizing space in electrical panels and reducing installation time.

6. Customizable Add-ons
   Offers flexibility for auxiliary contacts, communication modules, and signaling units to adapt to various project requirements.

Applications

• Large-Scale Industrial Plants
  Suitable for continuous operation of machinery, production lines, and automated systems that require high current and reliable source switching.

• Hospitals and Medical Facilities
  Critical for supporting uninterrupted power to life-support systems, operating rooms, and laboratory equipment.

• Data Centers and IT Hubs
  Provides stable and redundant power paths to maintain uptime and protect data integrity during power transitions.

• High-Rise Commercial Buildings
  Supports entire building infrastructure including elevators, HVAC, lighting, and security systems.

• Energy Facilities and Infrastructure
  Ideal for energy management in utilities, substations, and infrastructure where coordinated source control is essential.
