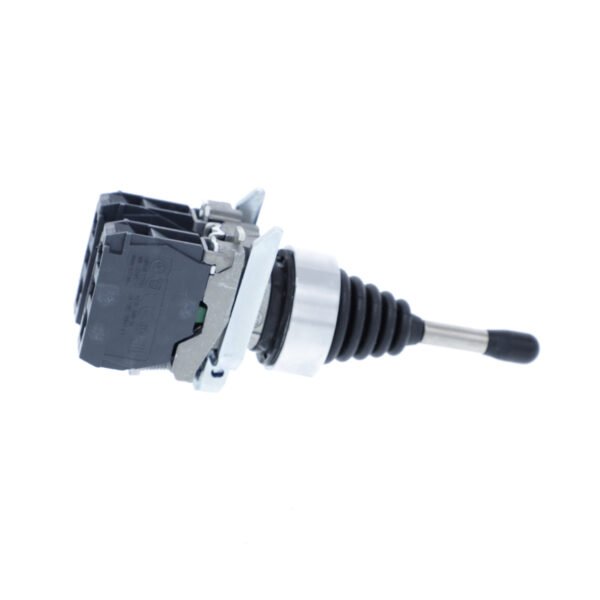

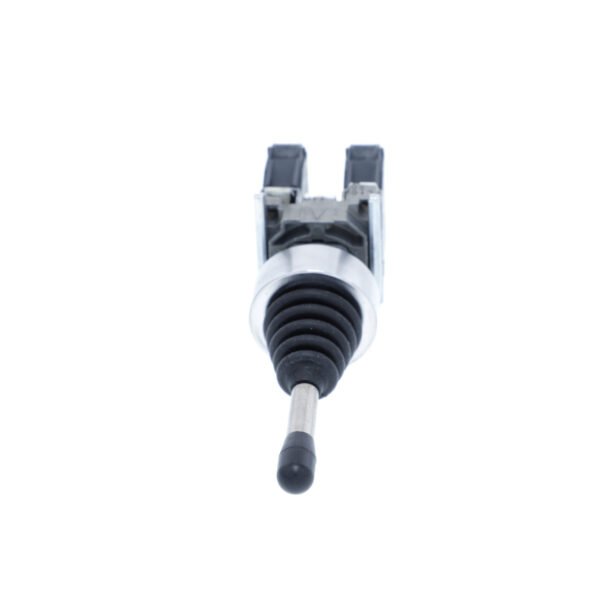

Schneider XD4PA24 | Joystick controller, Harmony XB4, metal, 22mm, 4 directions, spring return, 1NO
ng-return to center: Ensures safety by automatically resetting to neutral when released.
Durable construction: Metal body and components designed for industrial reliability.
High protection rating: IP66-rated for resistance to dust, water, and mechanical impacts.
Long operational life: Rated for 1 million operations, reducing maintenance costs.
Compact design: Fits standard 22 mm panel cutouts, making installation quick and easy.
EGP 6,247.00
Description
Schneider XD4PA24 | Joystick controller, Harmony XB4, metal, 22mm, 4 directions, spring return, 1NO
Description:
The Schneider XD4PA24 is a high-quality industrial joystick controller from the Harmony XB4 series, designed for precision control in multi-directional applications. It features a durable metal body with a 22 mm mounting diameter and a 54 mm long operating shaft. The joystick supports four operating directions with a spring-return mechanism that automatically brings it back to the neutral center position when released, ensuring safety and accuracy in operation.
This joystick is built to withstand harsh industrial environments, with an IP66 protection rating against dust and water. It uses one normally open (1NO) contact block for signal control, providing reliable electrical performance. The XD4PA24 is known for its mechanical endurance of up to 1,000,000 operations, offering long-lasting and consistent functionality.
Specifications:
Mounting hole diameter: 22 mm
Operating directions: 4 (up, down, left, right) with spring return to center
Shaft length: 54 mm
Contact type: 1 normally open (1NO), slow-break type
Body material: Chromium-plated metal bezel, Zamak fixing collar
Terminal type: Screw clamp
Protection rating: IP66, suitable for dusty or wet environments
Mechanical life: 1,000,000 cycles
Operating temperature: -25 °C to +70 °C
Rated insulation voltage: 600 V
Weight: approximately 0.13 kg
Applications:
Industrial machinery control panels
Cranes, lifts, and conveyor systems
Robotics and automation systems
Harsh or outdoor environments requiring dust and water protection
Manufacturing equipment requiring precise manual direction control
Additional information
| brand | Schneider Electric |
|---|
Specifications
| Range of Product | Harmony XDA |
|---|---|
| Product or Component Type | Joystick controller |
| Device short name | XD4 |
| Bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Mounting diameter | 0.9 in (22.5 mm) |
| Sale per indivisible quantity | 1 |
| Type of operator | Spring return to 0 position, long operating shaft 2.1 in (54 mm) |
| Operator position information | 5 positions |
| Operator direction information | 4 directions |

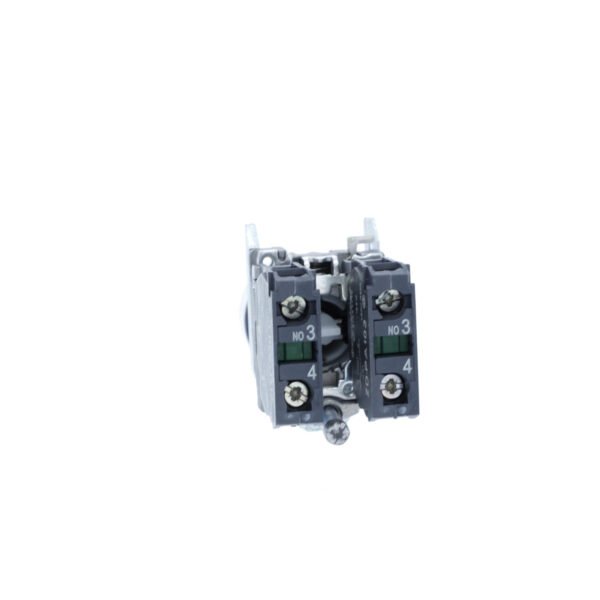

| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 |
| CAD overall width | 1.2 in (30 mm) |
|---|---|
| CAD overall height | 1.8 in (46.5 mm) |
| CAD overall depth | 5.2 in (133 mm) |
| Net Weight | 0.293 lb(US) (0.133 kg) |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Shape of signaling unit head | Round |
| Notch per direction | 1 |
| Contacts usage | Standard |
| Positive opening | Without |
| Mechanical durability | 1000000 cycles |
| Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
| Shape of screw head | Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| [Ie] rated operational current | 0.1 A 250 V, DC-13, R300 IEC 60947-5-1 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Electrical reliability | Λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 Λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4 |
| Device presentation | Complete product |
| Protective treatment | TH |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class I conforming to IEC 60536 |
| IP degree of protection | IP66 IEC 60529 |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | IEC 60947-5-1 UL 508 IEC 60947-5-5 CSA C22.2 No 14 JIS C8201-5-1 IEC 60947-1 IEC 60947-5-4 JIS C8201-1 |
| Product Certifications | CSA LROS (Lloyds register of shipping) BV UL Listed DNV |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Category | US10CS222468 |
|---|---|
| Discount Schedule | 0CS2 |
| GTIN | 3389110887433 |
| Returnability | Yes |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.772 in (4.500 cm) |
| Package 1 Width | 2.165 in (5.500 cm) |
| Package 1 Length | 5.118 in (13.000 cm) |
| Package weight(Lbs) | 4.832 oz (137.000 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 5.906 in (15.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 12.617 lb(US) (5.723 kg) |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 640 |
| Package 3 Height | 29.528 in (75.000 cm) |
| Package 3 Width | 31.496 in (80.000 cm) |
| Package 3 Length | 23.622 in (60.000 cm) |
| Package 3 Weight | 219.510 lb(US) (99.568 kg) |
| Warranty (in months) | 18 |
|---|
