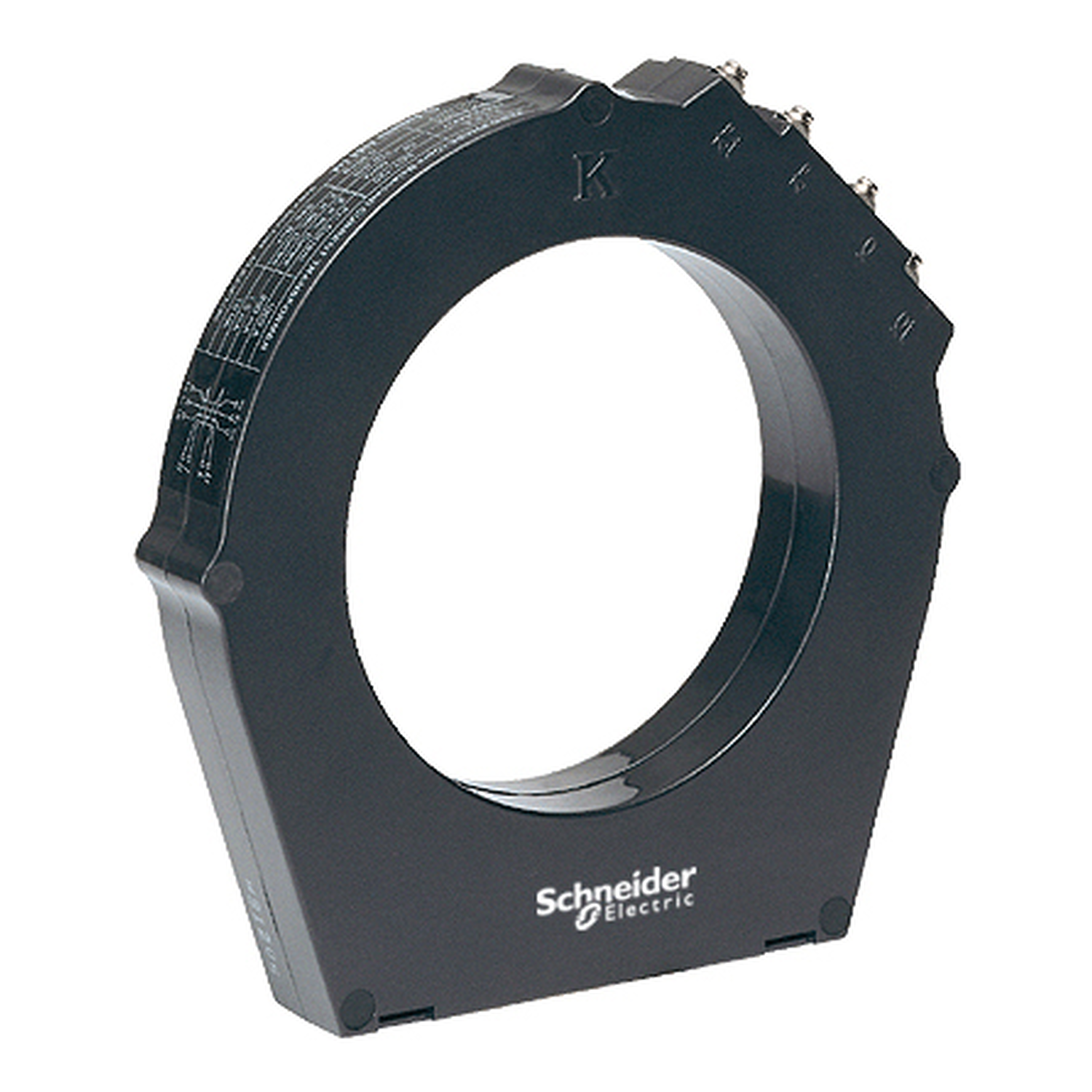

Schneider ZCT-035 | zero phase current transformer for EOCR – ZCT-035 – 200 / 1.5 mA
Schneider ZCT-035 | zero phase current transformer for EOCR – ZCT-035 – 200 / 1.5 mA
Original price was: EGP 393,541.00.EGP 204,641.00Current price is: EGP 204,641.00.
Description
Schneider ZCT-035 | zero phase current transformer for EOCR – ZCT-035 – 200 / 1.5 mA
1. Technical Specifications
- Model: ZCT-035
- Type: Zero-phase current transformer
- Application: Compatible with EOCR relays
- Primary current: 200mA
- Secondary current: 1.5mA
- Operating voltage: Dependent on the protection relay used
- Inner diameter: Suitable for low and medium voltage cable installations
- Frequency: Compatible with 50/60Hz systems
- Weight: Lightweight and easy to install
- Material: High-quality plastic, resistant to corrosion and environmental factors
2. Key Features
A. Precise Earth Leakage Detection
- The ZCT-035 provides high sensitivity to small leakage currents, enabling early fault detection and protecting equipment from serious damage.
B. Integration with EOCR Protection Relays
- Specifically designed to work with EOCR relays, ensuring effective leakage current detection and automatic circuit disconnection when necessary.
C. Compact and Easy Installation
- The small and compact design allows easy installation inside electrical distribution panels and industrial control systems without requiring extra space.
D. Reduced Risk of Electrical Fires
- Helps detect leakage currents that could lead to overheating or insulation breakdown, reducing the chance of short circuits or fire hazards.
E. Compatibility with Various Voltage Systems
- Can be used in a wide range of electrical voltage systems, making it suitable for different industrial and commercial installations.
3. Applications and Uses
The Schneider ZCT-035 can be used in various applications, including:
A. Motor Protection
- Works with EOCR relays to prevent motor overheating caused by leakage currents, extending motor lifespan and avoiding sudden shutdowns.
B. Electrical Distribution Systems
- Used in control and distribution panels to monitor leakage currents and ensure safe operation.
C. Industrial Facilities
- Provides comprehensive protection for sensitive industrial equipment, reducing downtime due to electrical failures.
D. Commercial and Residential Buildings
- Can be integrated into smart electrical systems to prevent leakage currents that could damage devices or pose a safety risk.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range of product | EOCR |
|---|---|
| Product or component type | Current transformer |
| Device short name | ZCT |
| Transformer type | Zero phase current transformer |
| Current transformer ratio | 200/1.5 mA |
| [In] rated current | 0.01…10 A |
| Tolerance | +/- 5 % |
| burden | 10 VA |
| Output voltage | 13.5...16.5 mV DC |
| Insulation resistance | 10 MOhm at 500 V |
|---|---|
| Connections - terminals | Power circuit: lug-clamp 1 cable(s) 1.5…4 mm²flexible |
| Cable length | 0.215 m |
| Tightening torque | Power circuit: 1.7 N.m on lug-clamp, 6.8 mm |
| network type | AC |
| Network frequency | 50...60 Hz |
| Mounting support | Panel |
| Height | 30 mm |
| Width | 85 mm |
| Depth | 85 mm |
| Product weight | 0.23 kg |
| Ambient air temperature for operation | -20…60 °C conforming to IEC 60947-4-1 |
|---|---|
| Ambient air temperature for storage | -30…80 °C |
| Operating altitude | 2000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.5 cm |
| Package 1 Width | 9.5 cm |
| Package 1 Length | 3.4 cm |
| Package 1 Weight | 240 g |
| Warranty | 18 months |
|---|
