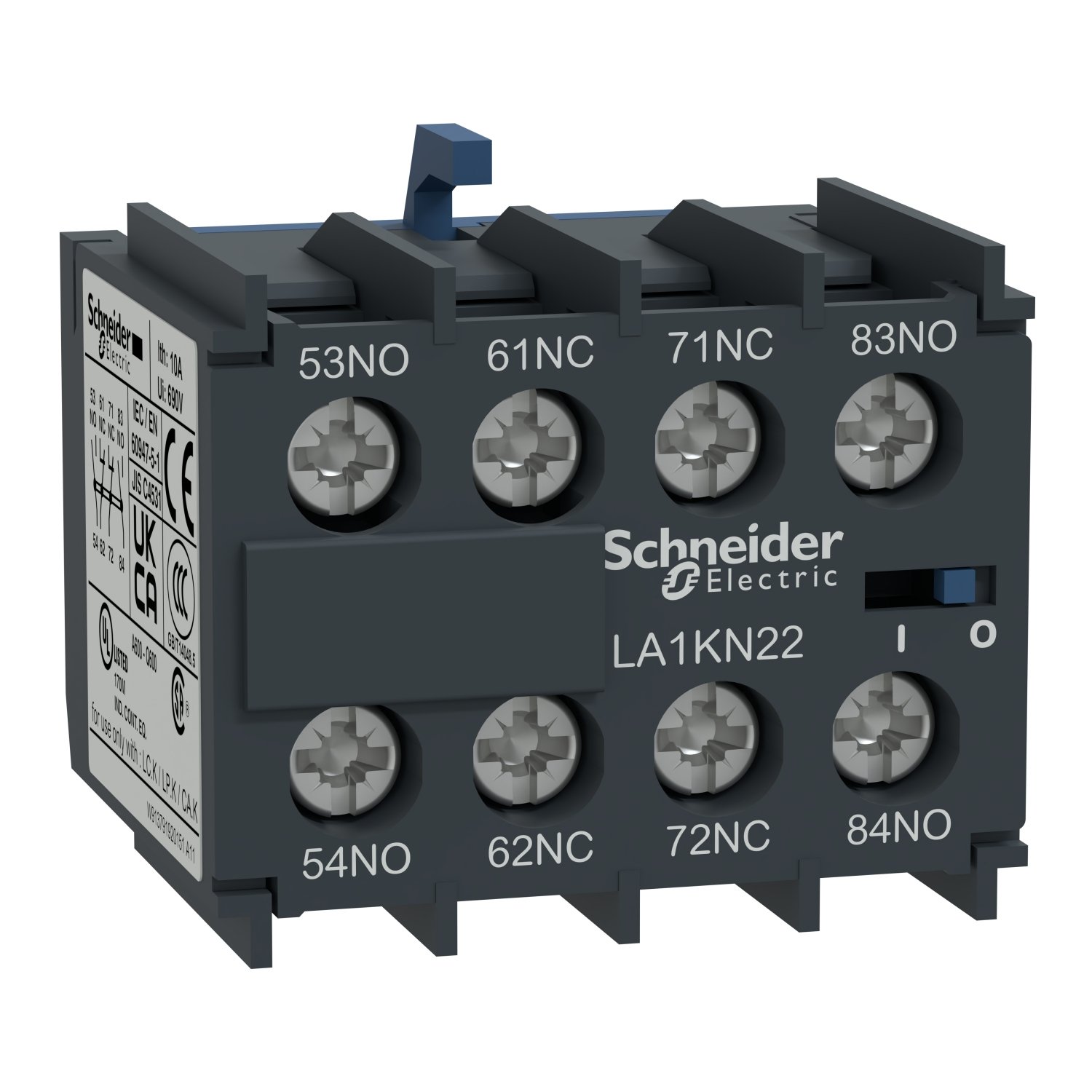

Schneider LA1KN13 TeSys K
Introduction to Schneider LA1KN13 TeSys K
it is a versatile and reliable motor starter designed for various industrial and commercial applications. As a part of the TeSys K series, it offers advanced features and functionalities to ensure smooth operation and enhanced safety.
Understanding TeSys K Series
What is TeSys K?
TeSys K is a range of motor starters and contactors manufactured by Schneider Electric, a global leader in energy management and automation solutions. The TeSys K series is known for its robustness, performance, and flexibility, making it suitable for a wide range of applications.
Key features and components
The Schneider LA1KN13 TeSys K comprises several essential components, including contactors, overload relays, and auxiliary contacts. These components work together to provide reliable motor control and protection against overloads and short circuits.
Applications of Schneider LA1KN13 TeSys K
it finds extensive use in various industrial and commercial settings, including:
- Manufacturing plants
- Warehouses
- HVAC systems
- Pumping stations
- Conveyor systems
Installation and Setup Guide
Installing and setting up Schneider LA1KN13 TeSys K is straightforward. Follow these steps for a hassle-free installation:
- Ensure proper wiring and connections.
- Mount the motor starter securely in a suitable location.
- Connect the load and control circuits according to the wiring diagram provided.
- Test the motor starter to ensure proper functionality.
- Configure settings as per your specific requirements.
Maintenance and Troubleshooting
To maintain optimal performance, follow these maintenance tips it:
- Regularly inspect for signs of wear or damage.
- Keep the motor starter clean and free from debris.
- Test overload and short-circuit protection mechanisms periodically. If you encounter any issues with it, refer to the user manual for troubleshooting guidance or contact Schneider Electric’s customer support for assistance.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | TeSys |
|---|---|
| Product name | TeSys K |
| Product or component type | Auxiliary contact block |
| Device short name | LA1 |
| Range compatibility | TeSys K LC1K TeSys K CA2K TeSys K CA3K |
| Mounting location | Front |
| Pole contact composition | 1 NO + 3 NC |
| Contacts operation | Instantaneous |
| [Ue] rated operational voltage | 690 V AC 25...400 Hz |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-5-1 600 V conforming to UL 60947-5-1 600 V conforming to CSA C22.2 No 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A (at 50 °C) |
| Standards | EN/IEC 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 GB/T 14048.5 JIS C8201-5-1 UL 60335-2-40:Annex JJ |
| Product certifications | CB Scheme CCC UL CSA CE UKCA |
| Irms rated making capacity | 110 A at <= 690 V AC conforming to IEC 60947 |
|---|---|
| Permissible short-time rating | 80 A 1 s 60 A 500 ms 110 A 100 ms |
| Associated fuse rating | 10 A gG at <= 690 V conforming to IEC 60947 |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 17 V |
| Non overlap distance | 0.5 mm |
| Insulation resistance | > 10 MOhm |
| Connections - terminals | Screw clamp terminals 1 cable(s) 0.34…1.5 mm²flexible with cable end Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end Screw clamp terminals 1 cable(s) 1.5…4 mm²rigid Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible with cable end Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end Screw clamp terminals 2 cable(s) 1.5…4 mm²rigid |
| Tightening torque | 1.3 N.m - with screwdriver Philips No 2 1.3 N.m - with screwdriver pozidriv No 2 |
| Height | 30 mm |
| Width | 38 mm |
| Depth | 35 mm |
| Net weight | 0.045 kg |
| Environmental characteristic | Normal environment |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
| Protective treatment | TC conforming to IEC 60068 |
| Ambient air temperature for storage | -50…80 °C |
| Ambient air temperature for operation | -25…50 °C |
| Operating altitude | 2000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.5 cm |
| Package 1 Width | 3 cm |
| Package 1 Length | 3.9 cm |
| Package 1 Weight | 40 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 3 cm |
| Package 2 Width | 19 cm |
| Package 2 Length | 29 cm |
| Package 2 Weight | 406 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 100 |
| Package 3 Height | 15 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 4.545 kg |
| Warranty | 18 |
|---|
