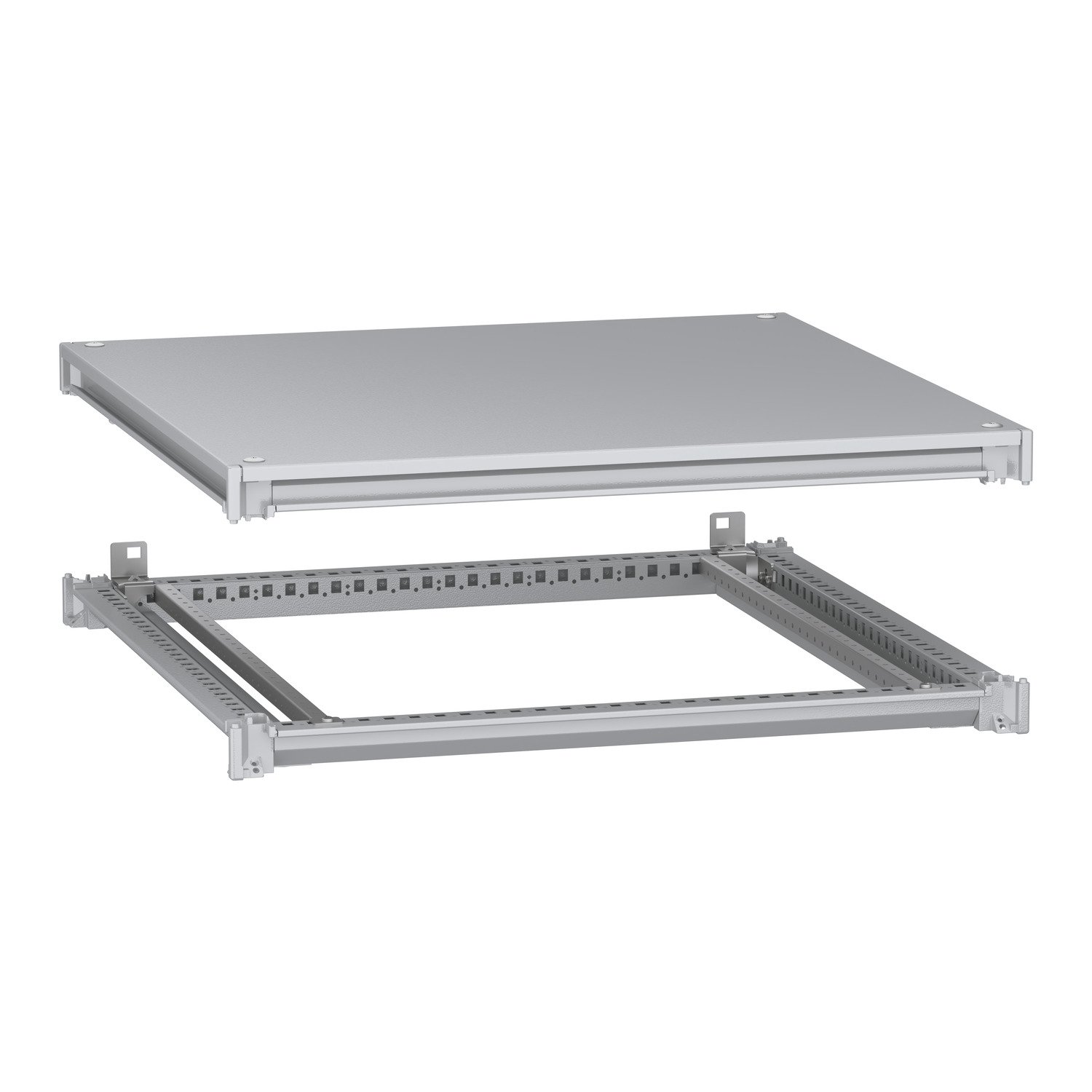

Schneider NSYSFNC88 | Bottom and top frame, PanelSeT SFN, for electrical enclosure W800 D800mm, roof included
Schneider NSYSFNC88 | Bottom and top frame, PanelSeT SFN, for electrical enclosure W800 D800mm, roof included
Original price was: EGP 4,069,800.00.EGP 2,808,162.00Current price is: EGP 2,808,162.00.
Description
Schneider NSYSFNC88 | Bottom and top frame, PanelSeT SFN, for electrical enclosure W800 D800mm, roof included
Technical Specifications
- Model: Schneider NSYSFNC88
- Product Type: Bottom and Top Frame
- Compatible Enclosure Series: PanelSeT SFN
- Dimensions:
- Width: 800mm
- Depth: 800mm
- Includes: Integrated roof
- Material: High-strength metal construction for enhanced durability
- Application: Electrical enclosures, control cabinets, power distribution systems
Key Features
- Complete Structural Protection
- The bottom and top frame provides essential support and stability to the PanelSeT SFN enclosure, ensuring the safety of internal electrical components.
- The integrated roof ensures full coverage, preventing environmental damage such as dust, moisture, and physical impact.
- Robust and Durable Construction
- Made from high-quality metal, this frame is designed to withstand harsh conditions, offering long-lasting durability.
- Coated with a corrosion-resistant finish, it ensures the frame remains functional and reliable over time.
- Optimized for Electrical Enclosures
- Designed to provide robust structural integrity for electrical systems, offering a stable base and secure top protection for electrical panels.
- It ensures compliance with industry standards for safety and performance in electrical enclosures.
- Effortless Installation
- The bottom and top frame is engineered for easy installation, fitting seamlessly into the PanelSeT SFN system.
- The frame allows for quick assembly while providing maximum security and stability for electrical components housed inside.
Applications
The Schneider NSYSFNC88 bottom and top frame is ideal for use in a variety of applications, including:
Industrial Control Panels – Supporting electrical systems and machinery in manufacturing facilities.
Power Distribution Systems – Providing a stable and secure foundation for distribution panels and electrical circuits.
Commercial Electrical Installations – Protecting electrical systems in office buildings, retail stores, and other commercial spaces.
Public Infrastructure Projects – Safeguarding electrical components used in utilities, transportation, and public services.
Additional information
| brands | Schneider Electric |
|---|
Specifications
| Range | PanelSeT |
|---|---|
| Accessory / separate part category | Enclosure accessory |
| Application | Multi-purpose |
| Product or component type | Framework kit |
| For enclosure nominal dimensions | - W: 31.5 in (800 mm) D: 31.5 in (800 mm) |
| Mounting location | Bottom of vertical uprights Top of vertical uprights |
| Range compatibility | PanelSeT PanelSeT SFN |
| Device composition | 1 bottom frame 1 roof 1 top frame |
| Quantity per set | Set of 1 |
| Material | steel |
|---|---|
| Colour | grey RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | By screws - each corner of enclosure |
| Height | 4.3 in (110 mm) |
| Width | 31.5 in (800 mm) |
| Depth | 31.5 in (800 mm) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.51 in (14.000 cm) |
| Package 1 Width | 32.28 in (82.000 cm) |
| Package 1 Length | 32.28 in (82.000 cm) |
| Package 1 Weight | 50.706 lb(US) (23.000 kg) |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 49.61 in (126.000 cm) |
| Package 2 Width | 31.50 in (80.000 cm) |
| Package 2 Length | 47.24 in (120.000 cm) |
| Package 2 Weight | 435.413 lb(US) (197.500 kg) |
| Warranty | 18 months |
|---|
