Schneider RXM2AB1F7 | Miniature plug-in relay, 12 A, 2 CO, 120 V AC

Schneider RXM2AB1F7 | Miniature plug-in relay, 12 A, 2 CO, 120 V AC description

In the world of electrical components, the Schneider RXM2AB1F7 miniature plug-in relay stands out for its versatile applications and robust design. This article dives deep into its features, advantages, and applications, shedding light on why it’s a preferred choice in various industries.

Introduction

What is Schneider RXM2AB1F7?

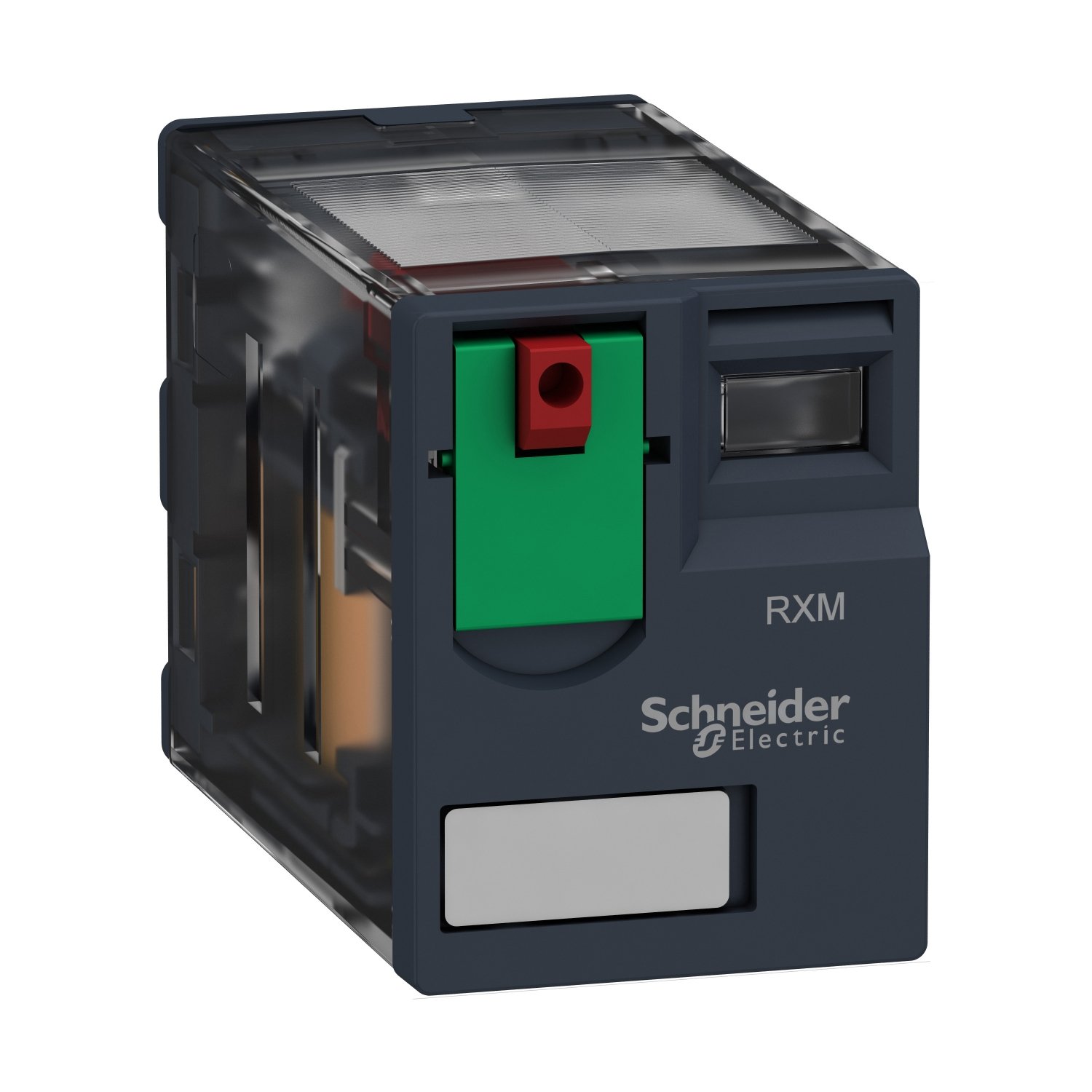

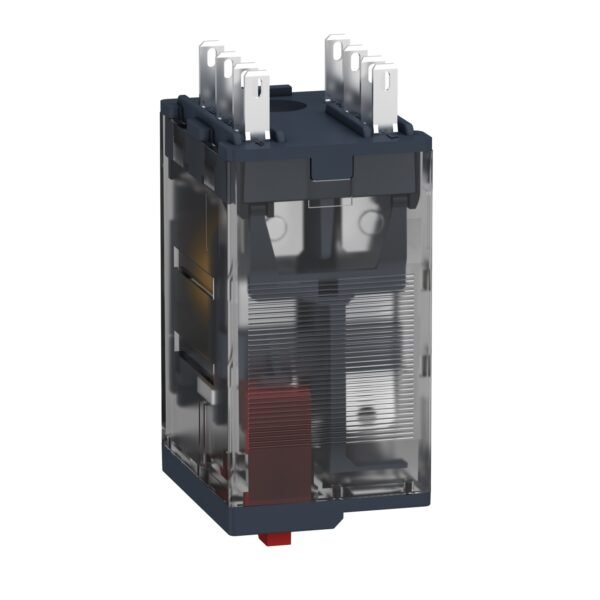

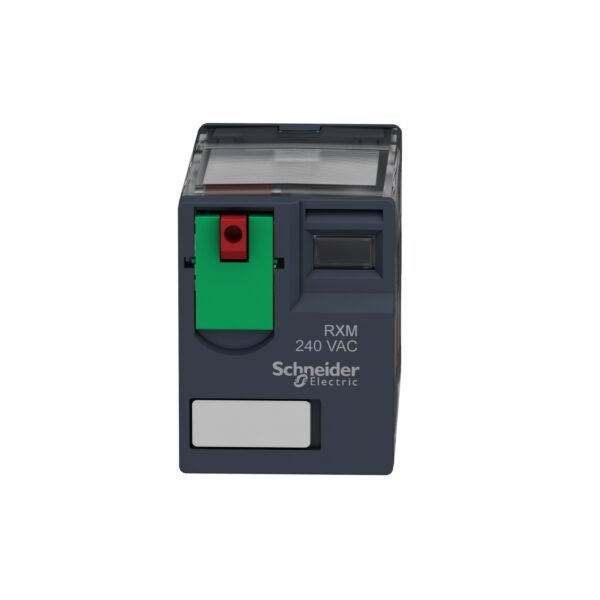

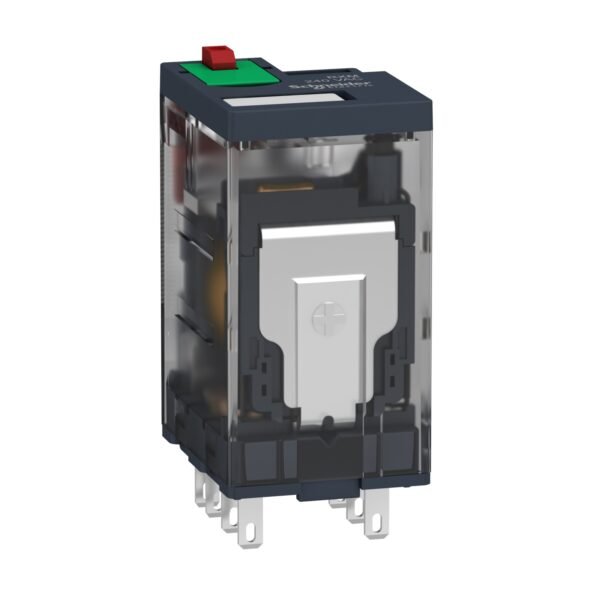

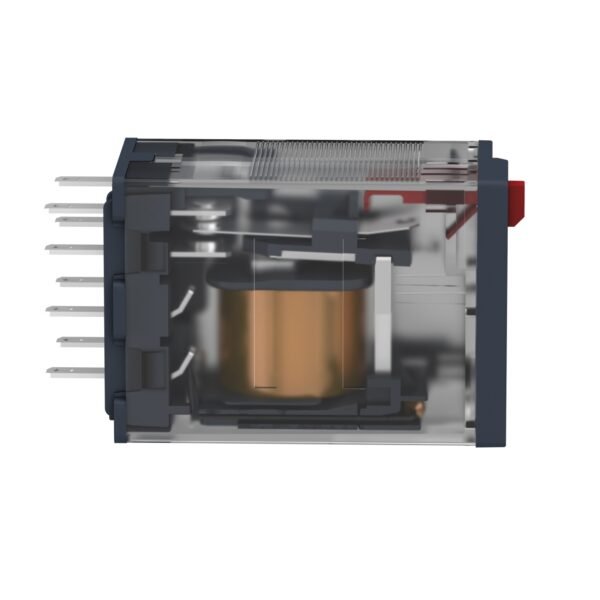

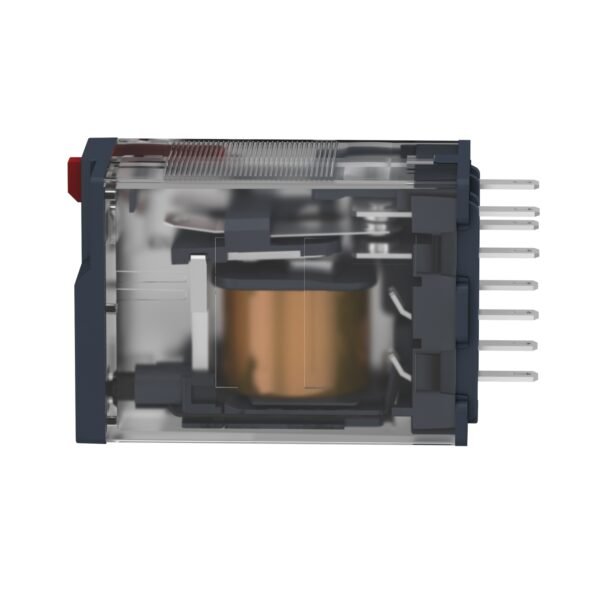

The Schneider RXM2AB1F7 is a miniature plug-in relay known for its high-performance capabilities. It features a compact design while offering a high current rating, making it suitable for a wide range of industrial and commercial applications.

Features

Plug-in Design

The plug-in design of the RXM2AB1F7 relay allows for easy installation and replacement, reducing downtime and maintenance efforts significantly.

Contact Configuration

With 2 CO (changeover) contacts, this relay provides versatility in switching applications, offering reliable and efficient control in various electrical circuits.

Voltage Rating

The RXM2AB1F7 operates at a voltage rating of 120 V AC, ensuring compatibility with standard electrical systems commonly found in industrial setups.

Current Rating

Featuring a current rating of 12 A, this relay can handle moderate to high electrical loads, making it suitable for a variety of control and automation tasks.

Applications

Industrial Automation

In industrial automation setups, the RXM2AB1F7 relay plays a crucial role in controlling motors, lights, heaters, and other electrical devices, contributing to efficient and safe operations.

Control Panels

Its compact size and reliable performance make it a preferred choice in control panels and electrical cabinets where space optimization and functionality are paramount.

Advantages

Compact Size

The miniature design of the RXM2AB1F7 relay allows for installation in tight spaces, making it ideal for applications with limited room availability.

High Current Capacity

Despite its small size, the relay offers a high current capacity of 12 A, ensuring reliable switching of heavy loads without compromising performance.

Easy Installation

The plug-in design and clear labeling make installation and wiring straightforward, saving time and effort during setup and maintenance tasks.

Conclusion

In conclusion, the Schneider RXM2AB1F7 miniature plug-in relay combines compactness, high current capacity, and ease of installation, making it a valuable component in industrial automation and control systems.
