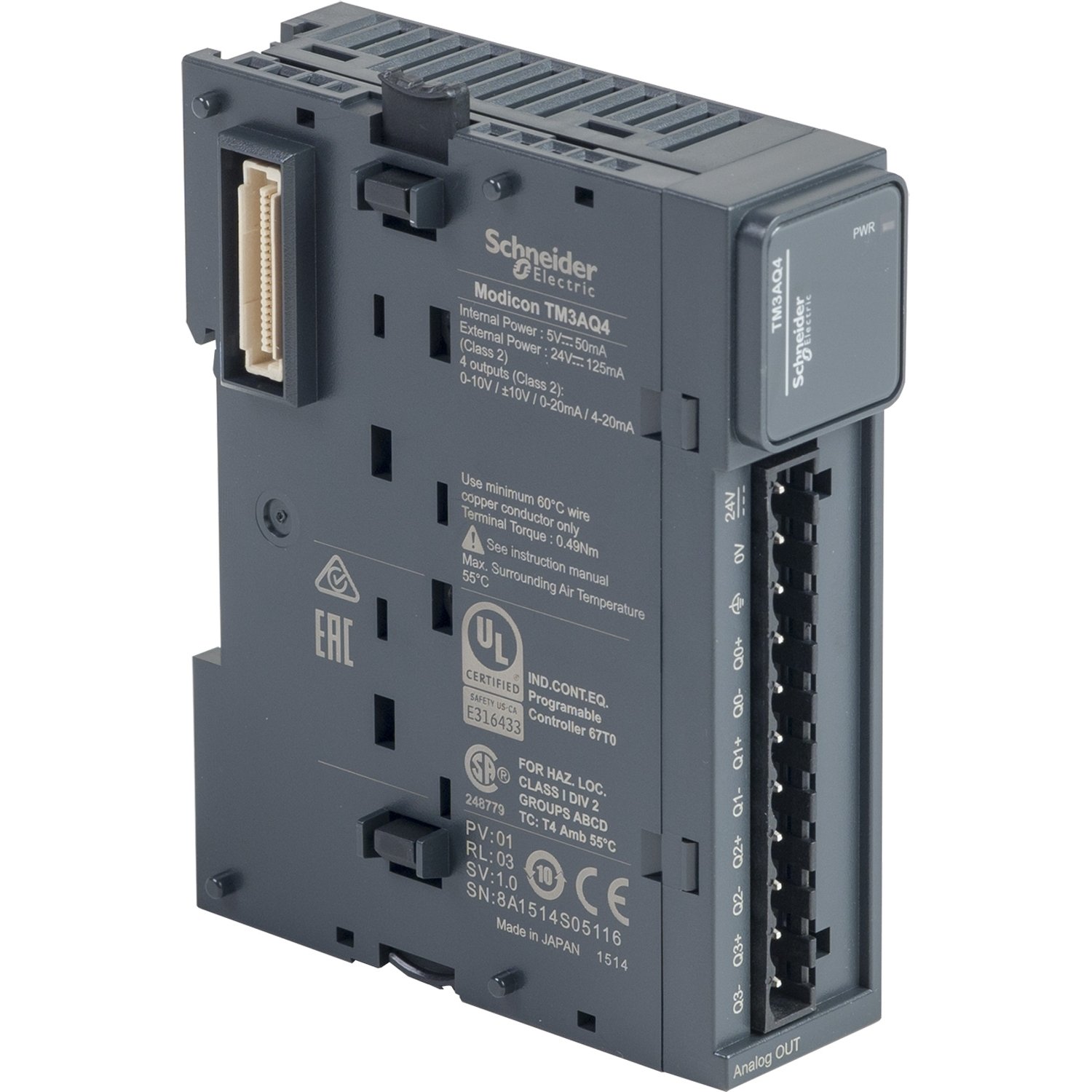

Schneider TM3AQ4 | Modicon TM3 – 4 analog outputs (screw) 24Vdc

Technical Specifications:

1. Number of Outputs: The TM3AQ4 module features 4 analog outputs, which can provide a variable output signal to control various types of devices in industrial processes.

2. Output Type: The module delivers analog voltage or current outputs (typically 0-10V or 4-20mA, depending on configuration) for controlling systems such as motor speed controllers, heating elements, or proportional valves.

3. Operating Voltage: The module operates on a 24V DC supply voltage, which is a common standard for industrial control systems.

4. Connection Type: The module uses screw terminals for secure and easy wiring connections. This ensures stable connections in industrial environments where reliability is critical.

5. Resolution and Accuracy: The analog outputs provide high resolution and accuracy, allowing precise control over the devices connected to them, ensuring that the required control signals are output consistently.

6. Compact Design: Like other Modicon TM3 modules, the TM3AQ4 is designed to be compact, making it suitable for environments with space constraints in control panels or automation systems.

Features:

1. Precise Analog Control: The module is designed to provide precise analog outputs, essential for applications that require fine control of external equipment, such as actuators, motors, and other devices that require continuous signal variation.

2. Screw Terminal Connections: The use of screw terminals makes it easier to wire the module and ensures a secure connection, which is particularly important in industrial applications where safety and reliability are key.

3. Wide Application Compatibility: The TM3AQ4 is compatible with a variety of industrial equipment that requires analog input, such as controllers for motor speeds, temperature regulation, or pressure control.

4. 24V DC Operation: The module is powered by 24V DC, which is standard for industrial automation systems and ensures compatibility with many other devices and controllers.

5. Space-Saving and Modular: The module is part of the Modicon TM3 family, allowing it to be easily integrated into modular automation systems. Its compact size helps save valuable space in control panels.

6. Scalable and Flexible: The TM3AQ4 module can be integrated with other Modicon TM3 I/O modules, making it part of a scalable solution to meet the demands of more complex industrial automation systems.

Applications:

The Schneider TM3AQ4 module is ideal for industrial applications that require analog output control, including:

• Process Control: Used in systems where continuous control of parameters like speed, pressure, or temperature is needed.

• Machine Control: Provides analog outputs for controlling machine actuators, motors, or other variable-speed devices.

• Automated Systems: Suitable for automated processes that require fine control over analog signals for actuators, valves, or other equipment.

• Temperature and Pressure Regulation: Ideal for controlling heating systems, refrigeration, and fluid pressure control, where precise analog signal control is critical.
