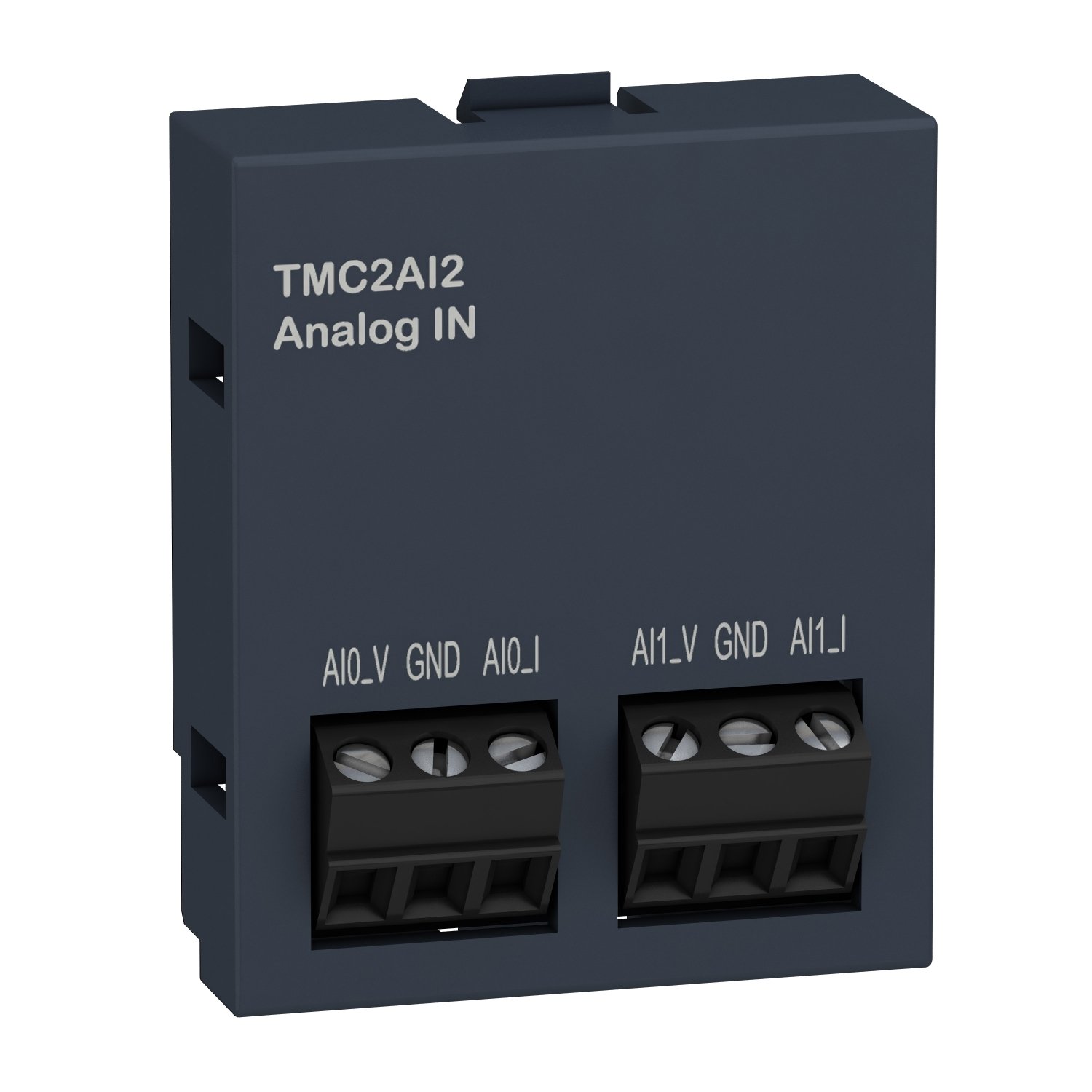

Schneider TMC2AI2 | cartridge M221 – 2 analog inputs – I/O extension

Technical Specifications

• Model: TMC2AI2

• Device Type: Analog Input Expansion Cartridge

• Compatible PLC: Schneider Modicon M221

• Number of Inputs: 2 analog inputs

• Input Signal Type: Supports 0-10V voltage and 4-20mA current signals

• Resolution: 10-bit resolution for precise data acquisition

• Installation Type: Cartridge-style module (plugs directly into M221 controller)

• Protection Rating: IP20 (suitable for indoor industrial use)

• Operating Temperature Range: -10°C to 55°C

Key Features

1. Enhanced Analog Input Capability

   • Adds two additional analog inputs to the M221 PLC.

   • Supports standard 0-10V voltage and 4-20mA current signals, widely used in industrial automation.

2. Accurate Data Acquisition

   • 10-bit resolution ensures reliable and precise signal processing.

   • Helps in real-time monitoring and control of various sensors.

3. Seamless Integration with Modicon M221

   • Plug-and-play design for easy expansion of existing systems.

   • No need for additional external wiring—directly connects to the M221 PLC.

4. Compact & Industrial-Grade Design

   • Small cartridge-style module, saving space in control panels.

   • Built to withstand industrial environments with a wide operating temperature range (-10°C to 55°C).

Applications & Use Cases

The Schneider TMC2AI2 analog input module is ideal for various industrial automation applications, including:

• Process Control & Monitoring

  • Capturing temperature, pressure, and level sensor data for precise automation.

• Energy Management

  • Monitoring voltage and current consumption for energy efficiency.

• Motor & Pump Control

  • Adjusting motor speeds based on real-time analog sensor feedback.

• HVAC & Environmental Monitoring

  • Regulating air conditioning, ventilation, and heating systems using sensor input.

• Factory Automation & Smart Systems

  • Expanding sensor integration for better machine performance and predictive maintenance.
